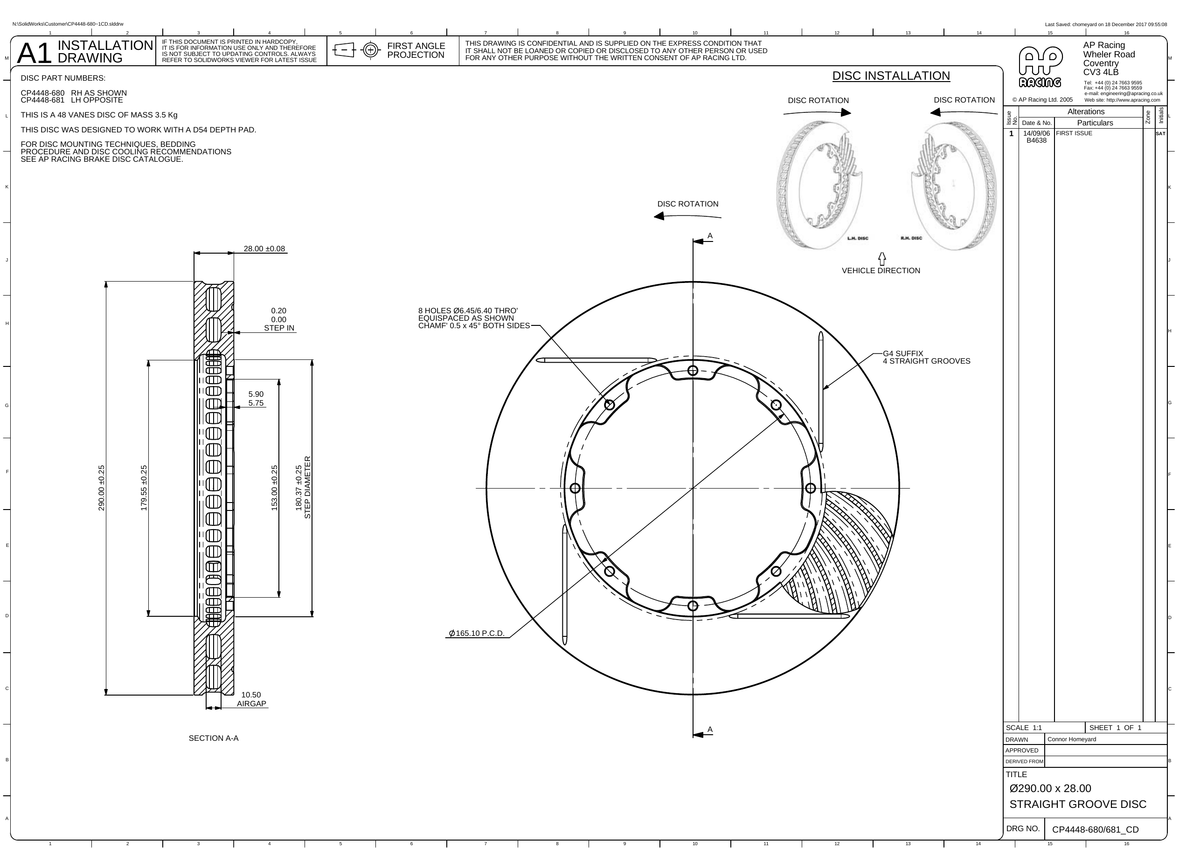

AP Racing Ventilated Brake Disc 290x28mm (CP4448-680/681)

AP Racing Ventilated Brake Disc 290x28mm (CP4448-680/681)

Outside diameter: 290 mm
Thickness: 28 mm
Mounting PCD: 165.1 mm
Mounting holes: 8
Fixing type: Bolted
Mounting hole diameter: 6.4 mm
Eye diameter: 180 mm
Inside flange diameter: 153 mm
Mounting flange thickness: 5.8 mm
Max pad depth: D54
Number of vanes: 30
Air gap: 15.2 mm
Approx. disc weight: 5.1 kg
Face types available: G4

Select the correct side and face style from the available options.

Face style notes

G4: straight grooves, number is grooves per face.

AP Racing part numbers: CP4448-680G4, CP4448-681G4.

Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.

For ordering assistance, email info@radaauto.ee.
