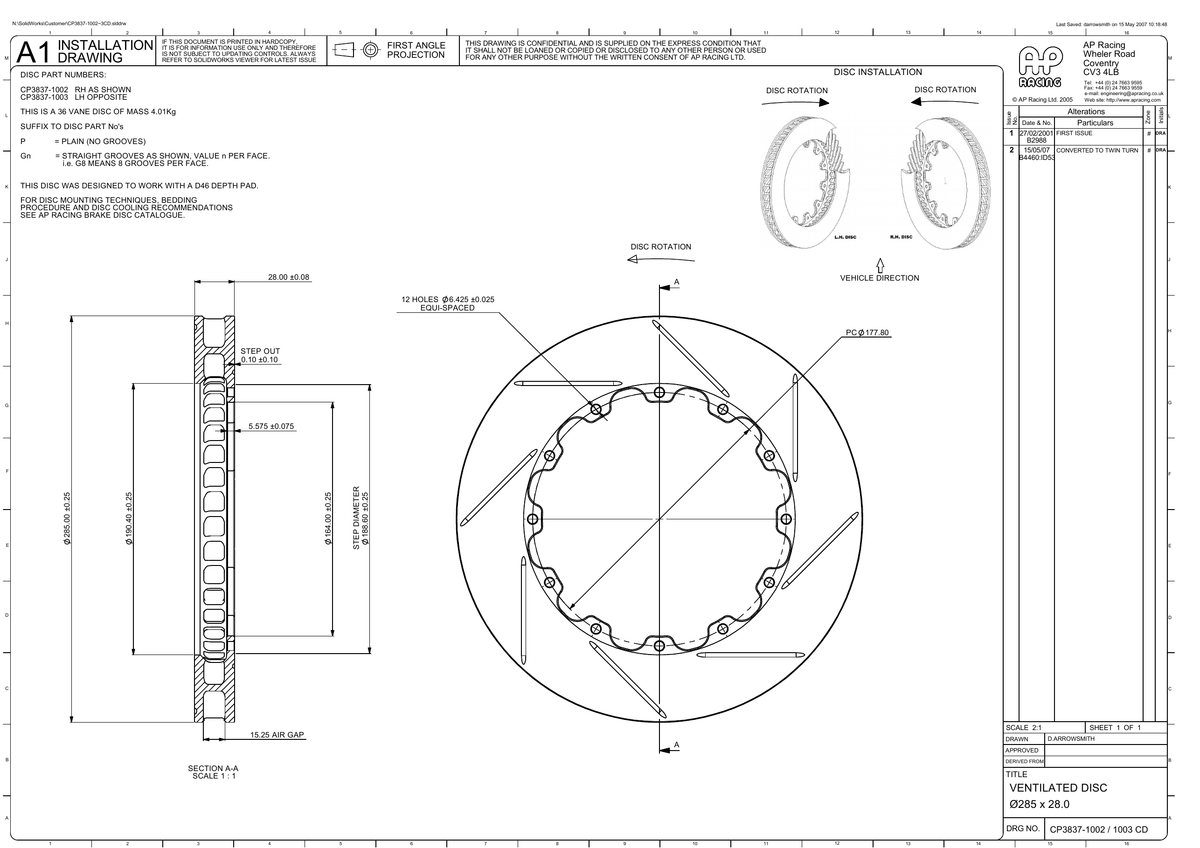

AP Racing Ventilated Brake Disc 285x28mm (CP3837-1002/1003)

AP Racing Ventilated Brake Disc 285x28mm (CP3837-1002/1003)

Outside diameter: 285 mm
Thickness: 28 mm
Mounting PCD: 177.8 mm
Mounting holes: 12
Fixing type: Bolted
Mounting hole diameter: 6.4 mm
Eye diameter: 190.4 mm
Inside flange diameter: 164 mm
Mounting flange thickness: 5.8 mm
Max pad depth: D46
Number of vanes: 36
Air gap: 15.2 mm
Approx. disc weight: 4 kg
Face types available: CR8/G8

Select the correct side and face style from the available options.

Face style notes

G8: straight grooves, number is grooves per face.

AP Racing part numbers: CP3837-1002G8, CP3837-1003G8.

Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.
