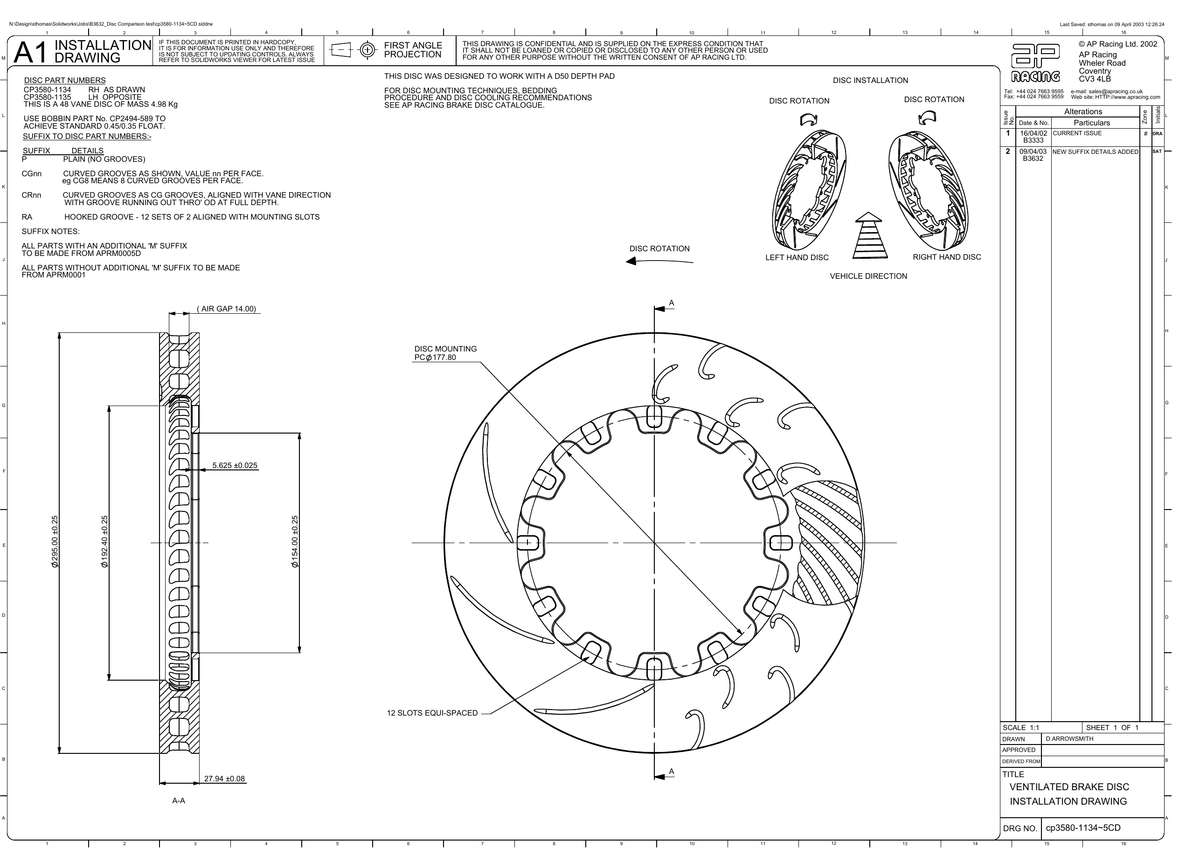

• AP Racing Ventilated Brake Disc 295x28mm (CP3580-1134/1135) technical drawing
  • SKU: CP3580-1134CG8

AP Racing Ventilated Brake Disc 295x28mm (CP3580-1134/1135)

581 €
Tax included.
Quantity

Not in stock, available to order

Product description

AP Racing Ventilated Brake Disc 295x28mm (CP3580-1134/1135)

Outside diameter: 295 mm
Thickness: 28 mm
Mounting PCD: 177.8 mm
Mounting holes: 12
Fixing type: Floating
Mounting bobbin: CP2494-1341MD
Eye diameter: 192.4 mm
Inside flange diameter: 154 mm
Mounting flange thickness: 5.6 mm
Max pad depth: D51
Number of vanes: 48
Air gap: 14 mm
Approx. disc weight: 5 kg
Face types available: CG8

Select the correct side and face style from the available options.

Side Face style Pad depth Approx. disc weight SKU
Right 8 curved grooves (CG8) D51 5 kg CP3580-1134CG8
Left 8 curved grooves (CG8) D51 5 kg CP3580-1135CG8

Face style notes

CG8: curved grooves, number is grooves per face.

AP Racing part numbers: CP3580-1134CG8, CP3580-1135CG8.

Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.
