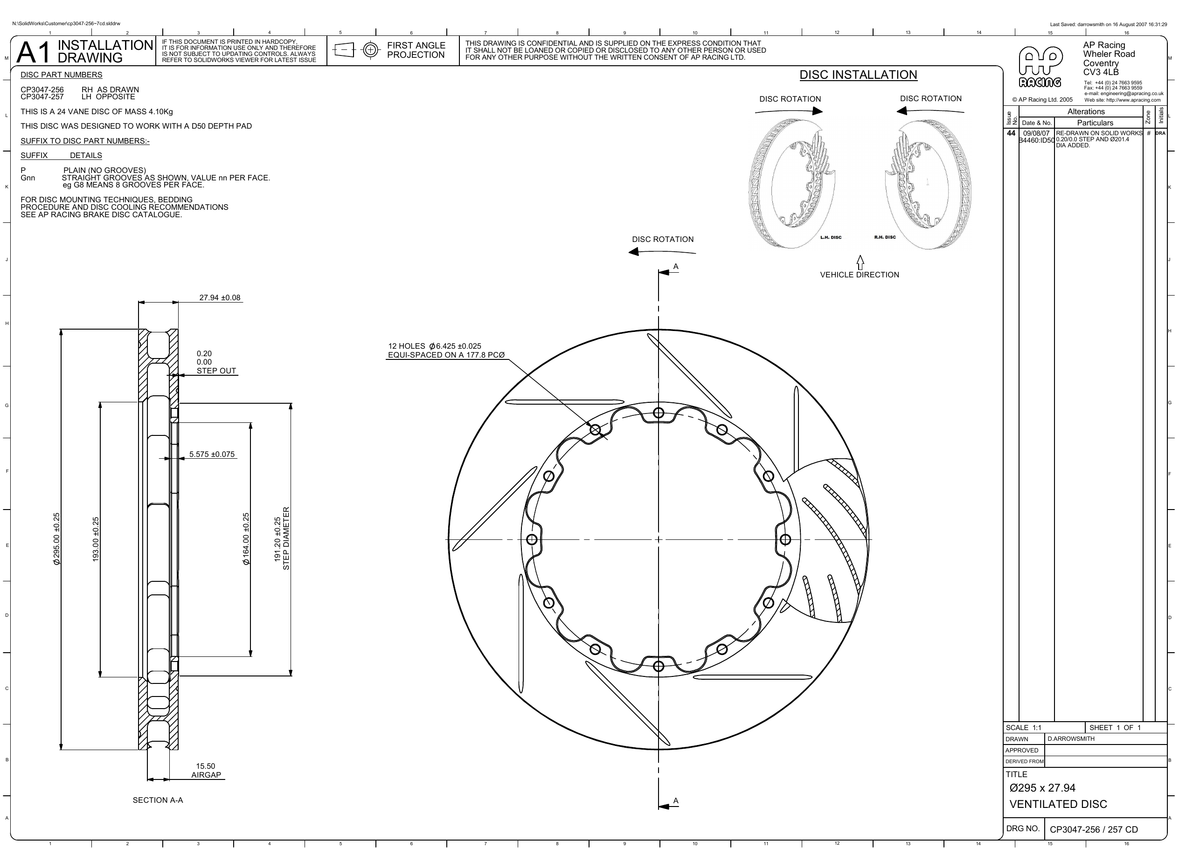

• AP Racing Ventilated Brake Disc 295x28mm (CP3047-256/257) technical drawing
  • SKU: CP3047-256G8

AP Racing Ventilated Brake Disc 295x28mm (CP3047-256/257)

614 €
Tax included.
Quantity

Not in stock, available to order

Product description

AP Racing Ventilated Brake Disc 295x28mm (CP3047-256/257)

Outside diameter: 295 mm
Thickness: 28 mm
Mounting PCD: 177.8 mm
Mounting holes: 12
Fixing type: Bolted
Mounting hole diameter: 6.4 mm
Eye diameter: 193 mm
Inside flange diameter: 164 mm
Mounting flange thickness: 5.6 mm
Max pad depth: D51
Number of vanes: 24
Air gap: 15.5 mm
Approx. disc weight: 4.1 kg
Face types available: G8

Select the correct side and face style from the available options.

Side Face style Pad depth Approx. disc weight SKU
Right 8 straight grooves (G8) D51 4.1 kg CP3047-256G8
Left 8 straight grooves (G8) D51 4.1 kg CP3047-257G8

Face style notes

G8: straight grooves, number is grooves per face.

AP Racing part numbers: CP3047-256G8, CP3047-257G8.

Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.

For ordering assistance, email info@radaauto.ee.
