AP Racing Ventilated Brake Disc 295x25.4mm (CP5000-510/511)

AP Racing Ventilated Brake Disc 295x25.4mm (CP5000-510/511)

• Outside diameter: 295 mm
• Thickness: 25.4 mm
• Mounting PCD: 177.8 mm
• Mounting holes: 12
• Fixing type: Bolted
• Mounting hole diameter: 6.4 mm
• Eye diameter: 204 mm
• Inside flange diameter: 164 mm
• Mounting flange thickness: 5.6 mm
• Max pad depth: D44
• Number of vanes: 48
• Air gap: 9.3 mm
• Approx. disc weight: 5.4 kg
• Face types available: CG8
• AP comments: Pro 5000 disc

Select the correct side and face style from the available options.

Face style notes

• CG8: curved grooves, number is grooves per face.

AP Racing part numbers: CP5000-510CG8, CP5000-511CG8.

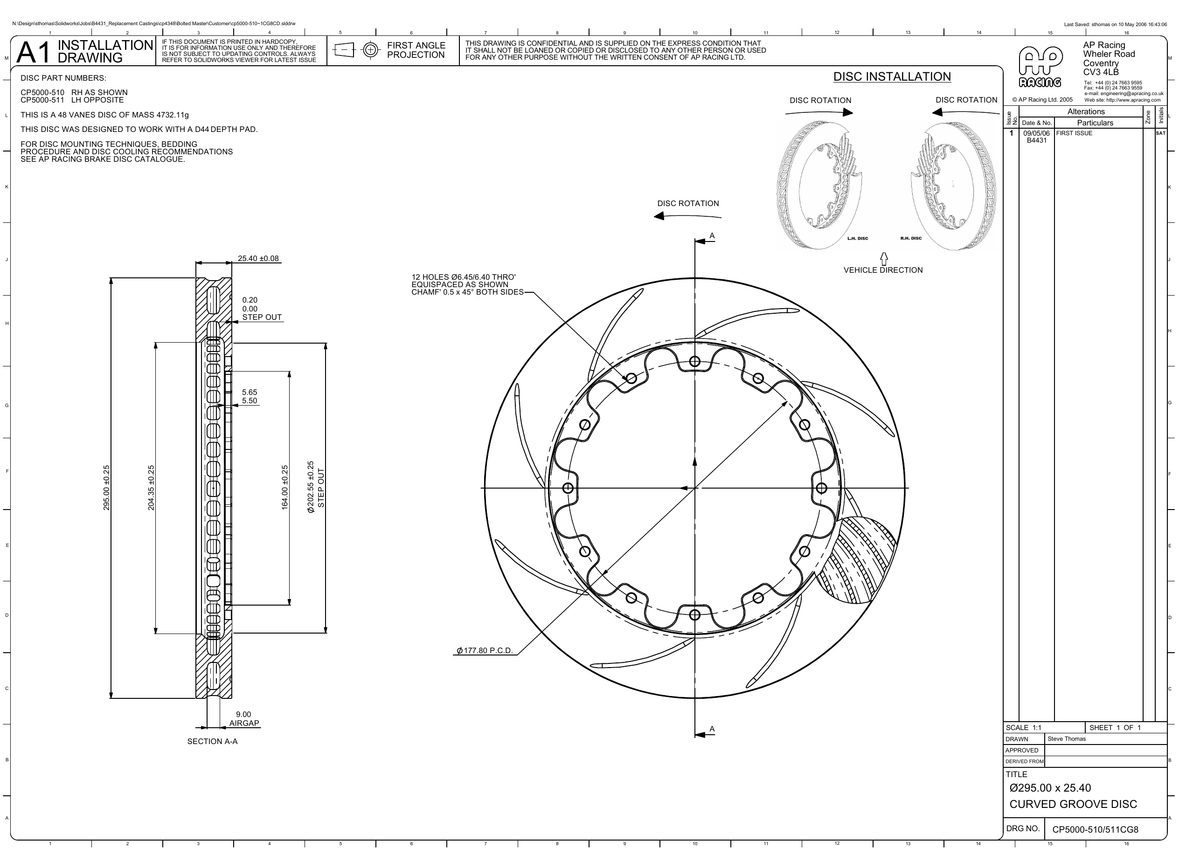

Technical drawing: AP Racing customer drawing PDF.

Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.

For ordering assistance, email info@radaauto.ee.
