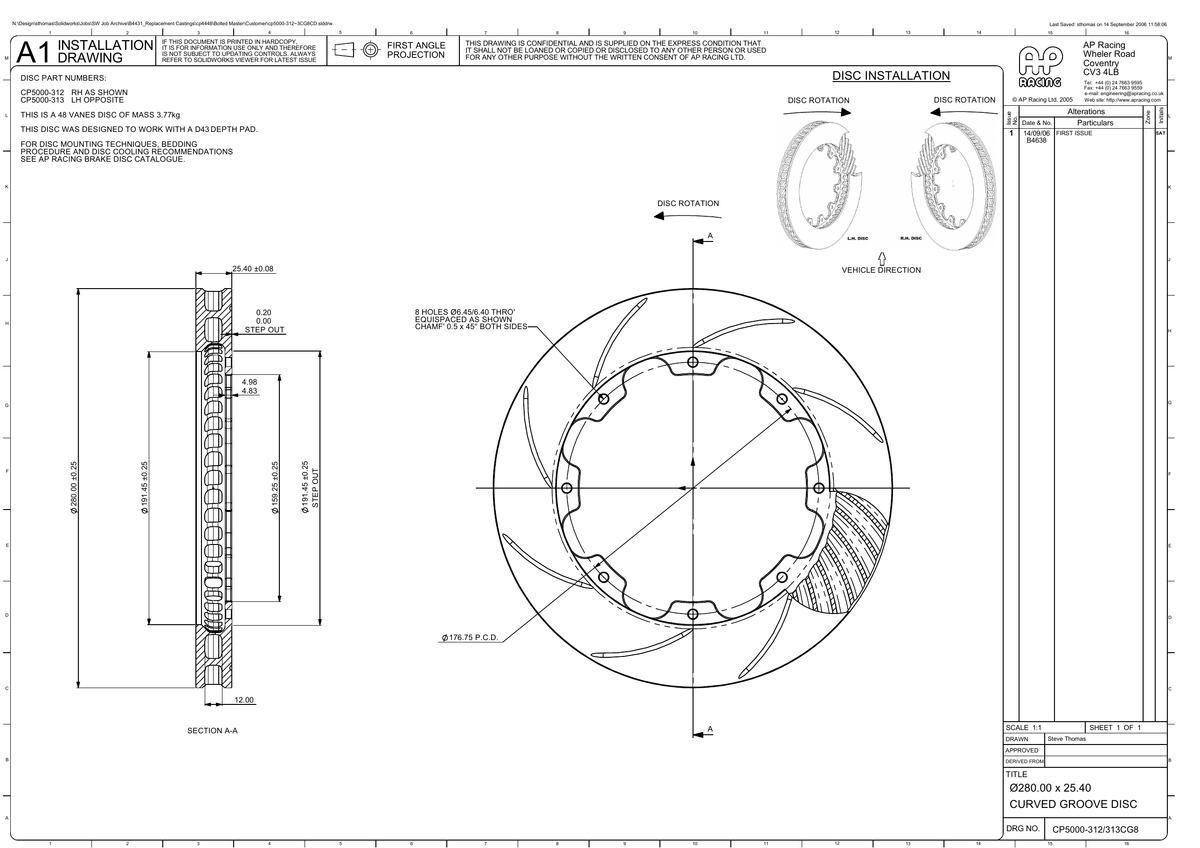

AP Racing Ventilated Brake Disc 280x25.4mm (CP5000-312/313)

AP Racing Ventilated Brake Disc 280x25.4mm (CP5000-312/313)

Outside diameter: 280 mm
Thickness: 25.4 mm
Mounting PCD: 176.8 mm
Mounting holes: 8
Fixing type: Bolted
Mounting hole diameter: 6.4 mm
Eye diameter: 192 mm
Inside flange diameter: 159.3 mm
Mounting flange thickness: 4.9 mm
Max pad depth: D44
Number of vanes: 30
Air gap: 12.9 mm
Approx. disc weight: 4 kg
Face types available: CG8
AP comments: Pro 5000 disc

Select the correct side and face style from the available options.

Face style notes

CG8: curved grooves, number is grooves per face.

AP Racing part numbers: CP5000-312CG8, CP5000-313CG8.

Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.
