AP Racing Ventilated Brake Disc 280x25.4mm (CP4448-856/857)

AP Racing Ventilated Brake Disc 280x25.4mm (CP4448-856/857)

Outside diameter: 280 mm
Thickness: 25.4 mm
Mounting PCD: 177.8 mm
Mounting holes: 12
Fixing type: Bolted
Mounting hole diameter: 6.4 mm
Eye diameter: 197 mm
Inside flange diameter: 164 mm
Mounting flange thickness: 5.8 mm
Max pad depth: D41
Number of vanes: 48
Air gap: 10.5 mm
Face types available: G4

Select the correct side and face style from the available options.

Face style notes

G4: straight grooves, number is grooves per face.

AP Racing part numbers: CP4448-856G4, CP4448-857G4.

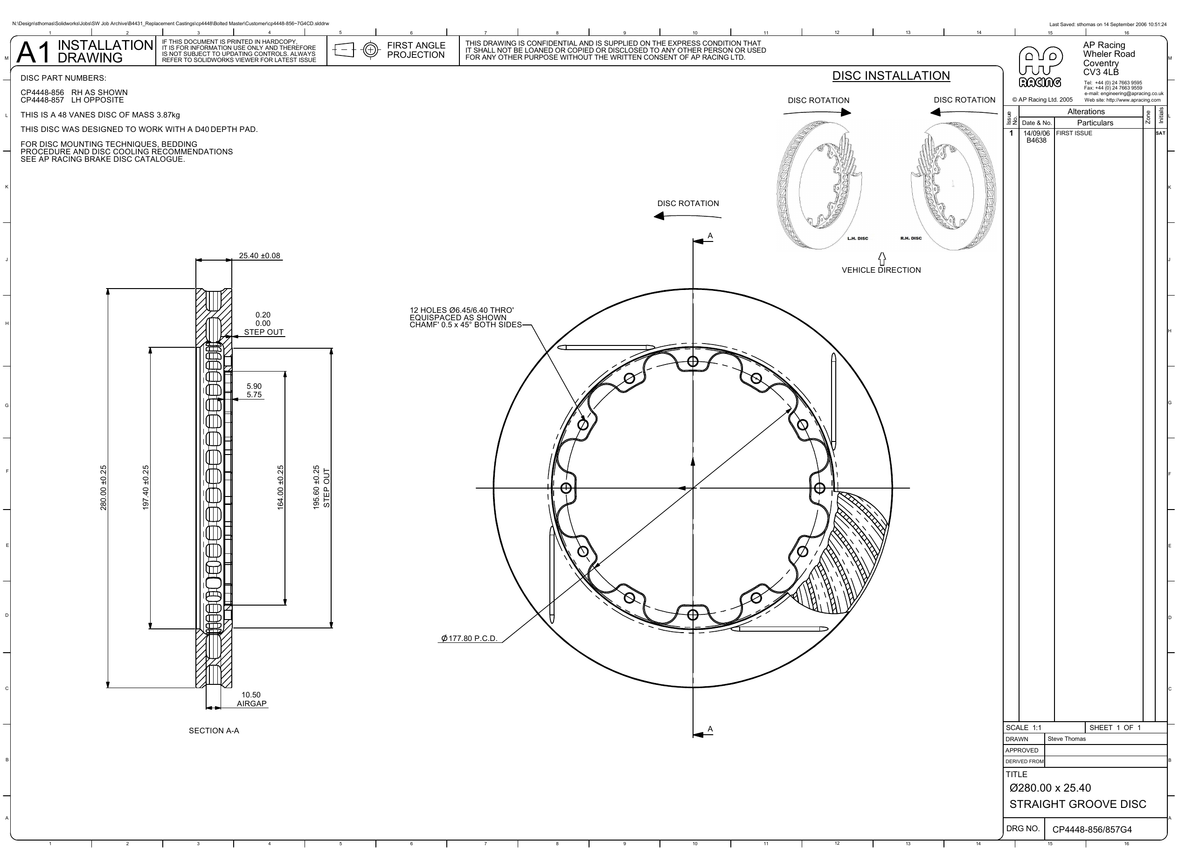

Technical drawing: AP Racing customer drawing PDF.

Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.
