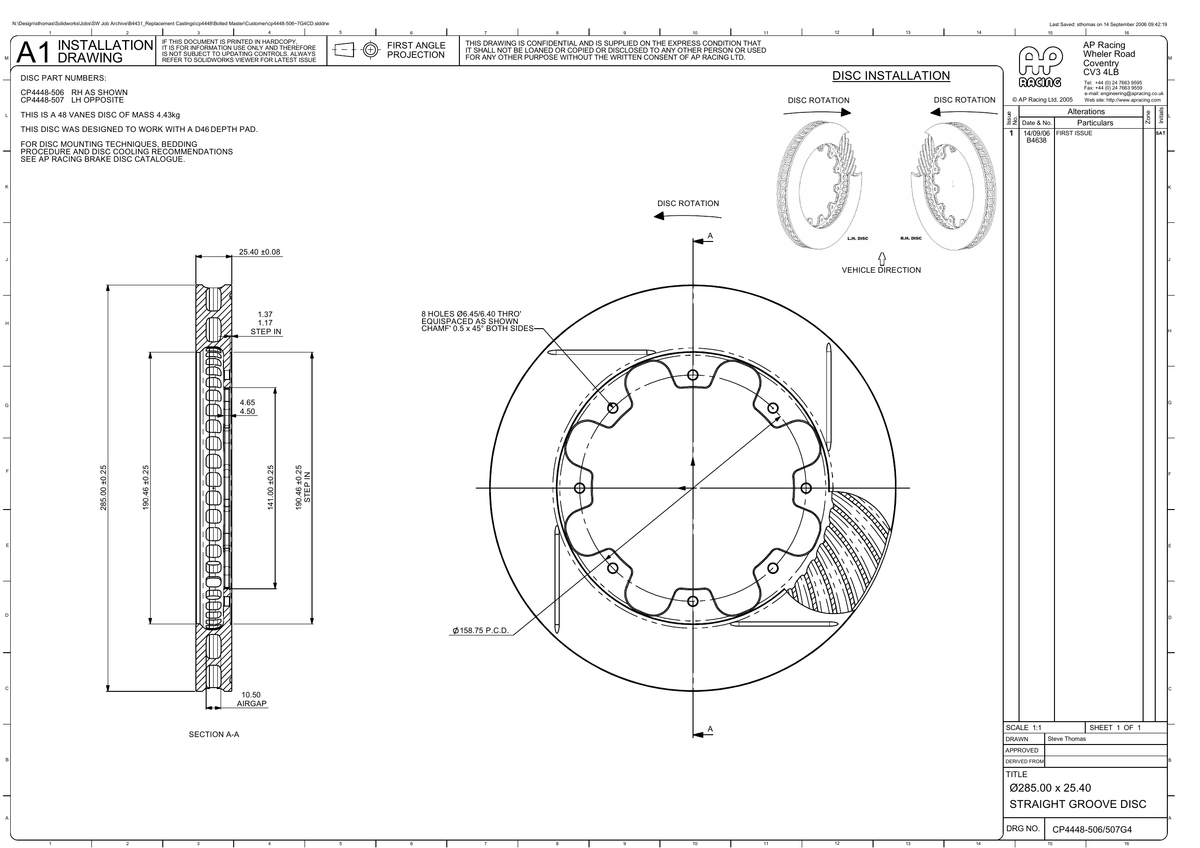

AP Racing Ventilated Brake Disc 285x25.4mm (CP4448-506/507)
Outside diameter: 285 mm
Thickness: 25.4 mm
Mounting PCD: 158.8 mm
Mounting holes: 8
Fixing type: Bolted
Mounting hole diameter: 6.4 mm
Eye diameter: 190 mm
Inside flange diameter: 141 mm
Mounting flange thickness: 4.6 mm
Max pad depth: D46
Number of vanes: 48
Air gap: 10.5 mm
Face types available: G4
AP comments: Mounting flange stepped in 1.27mm
Select the correct side and face style from the available options.
| Side | Face style | Pad depth | Approx. disc weight | SKU |
|---|---|---|---|---|
| Right | 4 straight grooves (G4) | D46 | — kg | CP4448-506G4 |
| Left | 4 straight grooves (G4) | D46 | — kg | CP4448-507G4 |
Face style notes
G4: straight grooves, number is grooves per face.
AP Racing part numbers: CP4448-506G4, CP4448-507G4.
Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.
