Not in stock, available to order

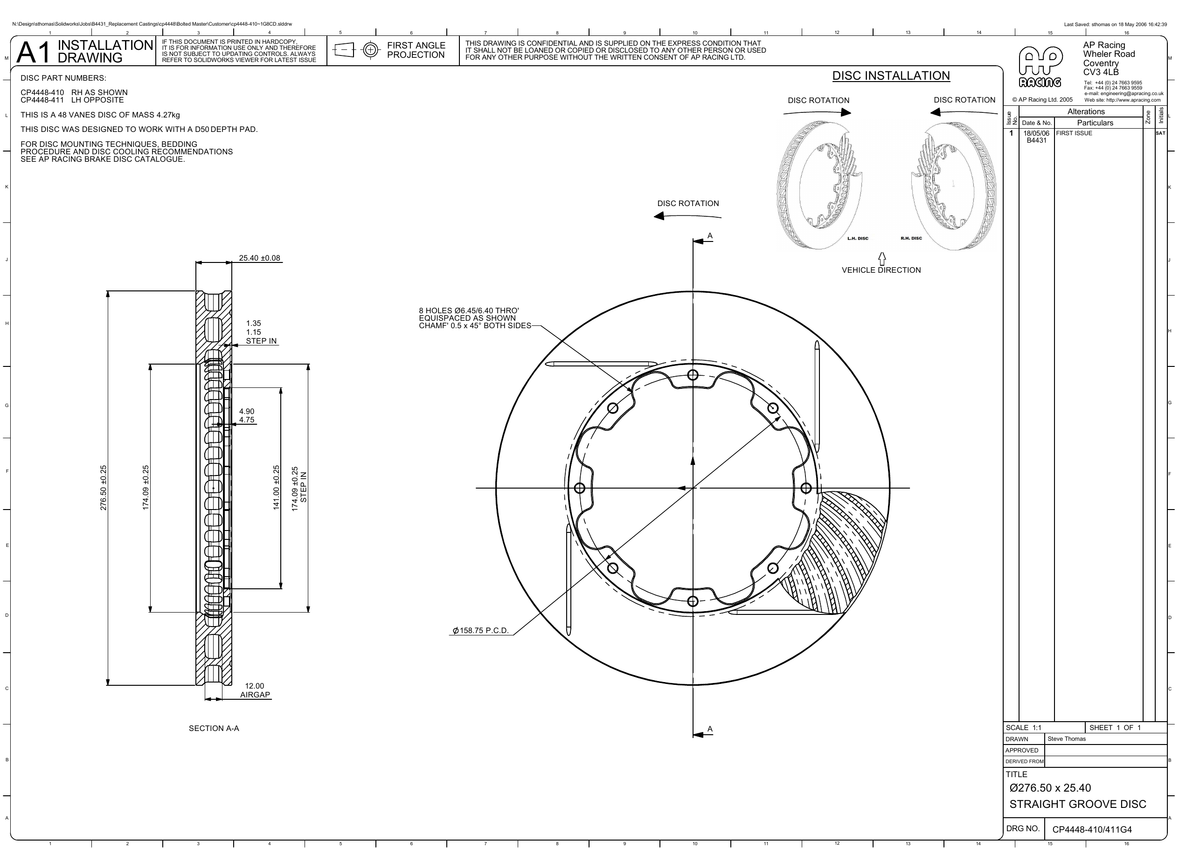

AP Racing Ventilated Brake Disc 277x25.4mm (CP4448-410/411)
Outside diameter: 277 mm
Thickness: 25.4 mm
Mounting PCD: 158.8 mm
Mounting holes: 8
Fixing type: Bolted
Mounting hole diameter: 6.4 mm
Eye diameter: 174.1 mm
Inside flange diameter: 141 mm
Mounting flange thickness: 4.82 mm
Max pad depth: D50
Number of vanes: 48
Air gap: 10.5 mm
Approx. disc weight: 4.2 kg
Face types available: G4, GA
Select the correct side and face style from the available options.
| Side | Face style | Pad depth | Approx. disc weight | SKU |
|---|---|---|---|---|
| Right | 4 straight grooves (G4) | D50 | 4.2 kg | CP4448-410G4 |
| Left | 4 straight grooves (G4) | D50 | 4.2 kg | CP4448-411G4 |
| Right | GA | D50 | Not confirmed for GA | CP4448-410GA |
| Left | GA | D50 | Not confirmed for GA | CP4448-411GA |
The supplied GA component rows specify 277 x 25.4 mm, eight mounting positions on a 158.8 mm pitch circle and D50 pad depth. Select the complete part number for the existing installation. GA packed weight is unconfirmed; the existing approximate component-weight figure is not a shipping weight. One replacement disc is supplied per ordered unit; mounting bells and fixing hardware are separate.
Face style notes
G4: straight grooves, number is grooves per face.
AP Racing part numbers: CP4448-410G4, CP4448-411G4, CP4448-410GA, CP4448-411GA.
Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.
For ordering assistance, email info@radaauto.ee.

AP Racing Ventilated Brake Disc 277x25.4mm (CP4448-410/411)
Right / 4 straight grooves (G4)
