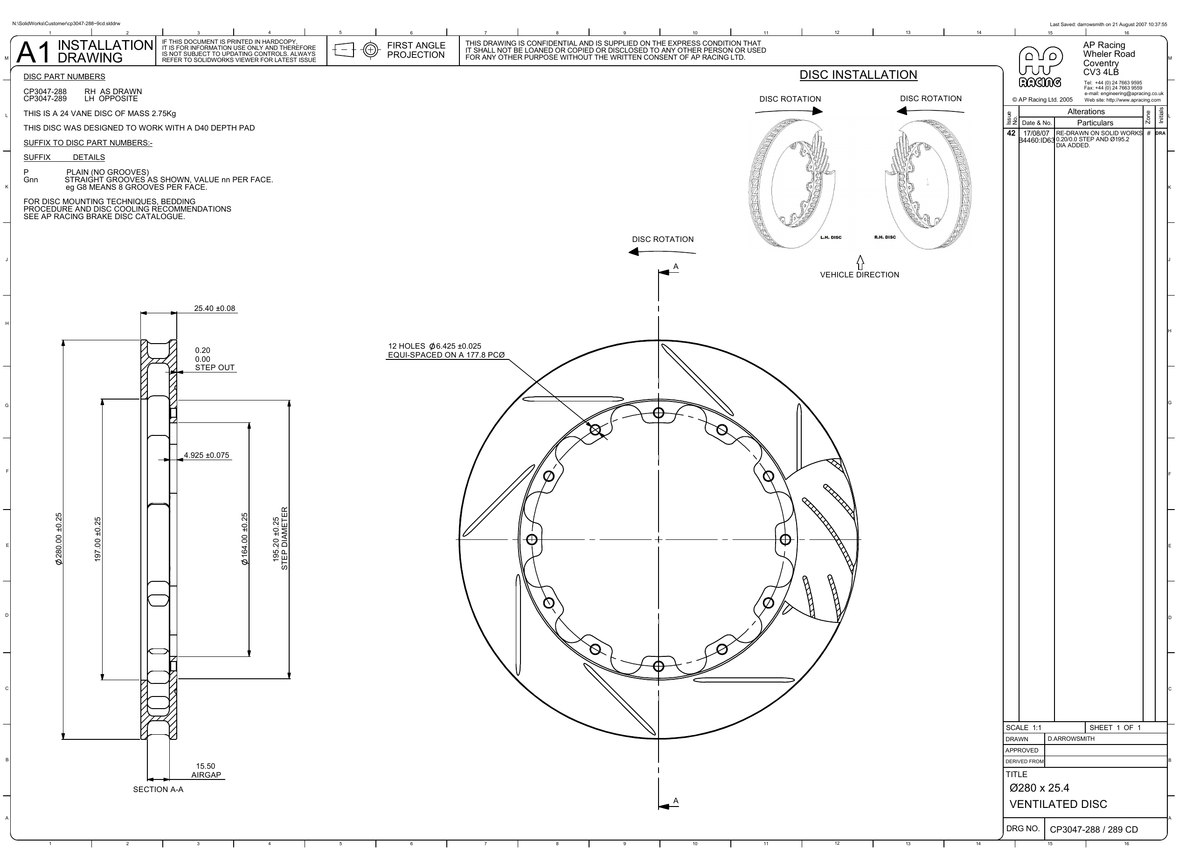

• AP Racing Ventilated Brake Disc 280x25.4mm (CP3047-288/289) technical drawing
  • SKU: CP3047-288G8

AP Racing Ventilated Brake Disc 280x25.4mm (CP3047-288/289)

614 €
Tax included.
Quantity

Not in stock, available to order

Product description

AP Racing Ventilated Brake Disc 280x25.4mm (CP3047-288/289)

Outside diameter: 280 mm
Thickness: 25.4 mm
Mounting PCD: 177.8 mm
Mounting holes: 12
Fixing type: Bolted
Mounting hole diameter: 6.4 mm
Eye diameter: 197 mm
Inside flange diameter: 164 mm
Mounting flange thickness: 4.9 mm
Max pad depth: D41
Number of vanes: 24
Air gap: 15.5 mm
Approx. disc weight: 2.7 kg
Face types available: G8

Select the correct side and face style from the available options.

Side Face style Pad depth Approx. disc weight SKU
Right 8 straight grooves (G8) D41 2.7 kg CP3047-288G8
Left 8 straight grooves (G8) D41 2.7 kg CP3047-289G8

Face style notes

G8: straight grooves, number is grooves per face.

AP Racing part numbers: CP3047-288G8, CP3047-289G8.

Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.
