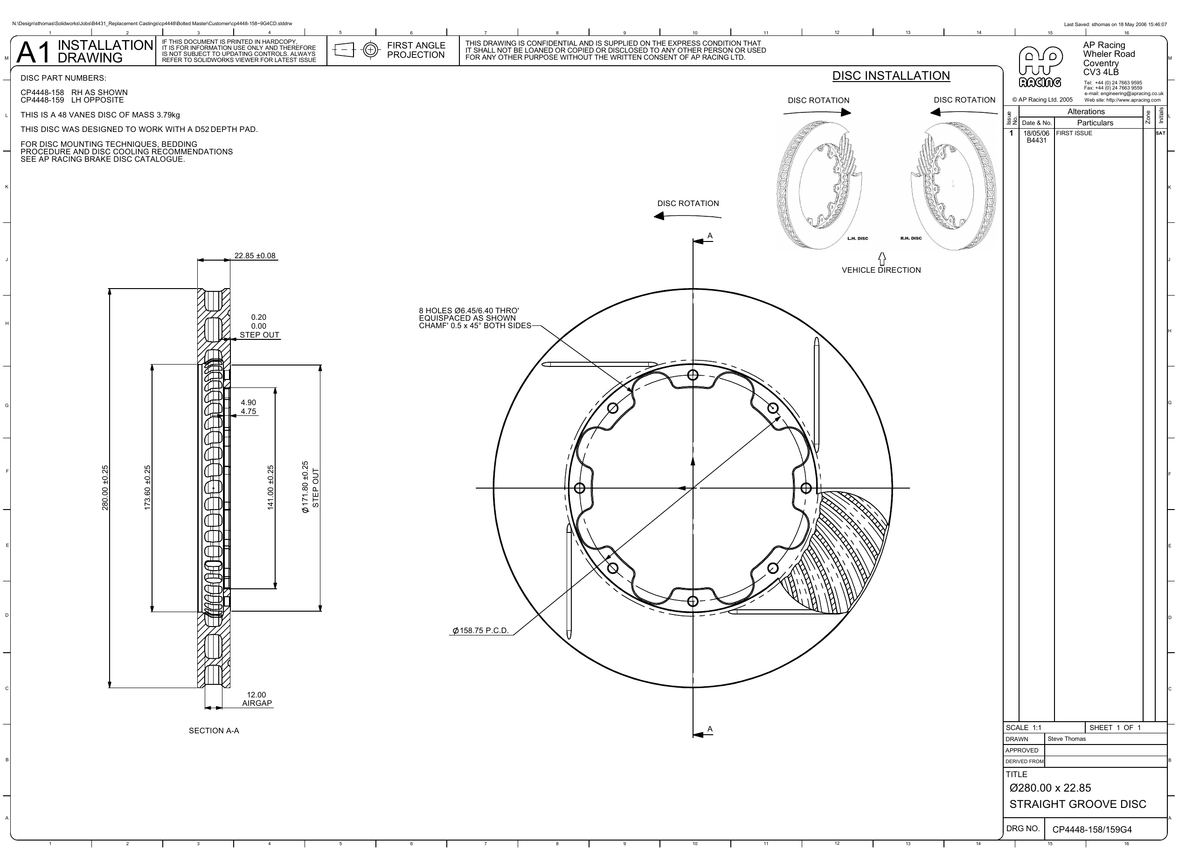

AP Racing Ventilated Brake Disc 280x22.9mm (CP4448-158/159)

AP Racing Ventilated Brake Disc 280x22.9mm (CP4448-158/159)

Outside diameter: 280 mm
Thickness: 22.9 mm
Mounting PCD: 158.8 mm
Mounting holes: 8
Fixing type: Bolted
Mounting hole diameter: 6.4 mm
Eye diameter: 173.6 mm
Inside flange diameter: 141 mm
Mounting flange thickness: 4.82 mm
Max pad depth: D51
Number of vanes: 48
Air gap: 10.5 mm
Approx. disc weight: 3.8 kg
Face types available: G4

Select the correct side and face style from the available options.

Face style notes

G4: straight grooves, number is grooves per face.

AP Racing part numbers: CP4448-158G4, CP4448-159G4.

Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.
