AP Racing Ventilated Brake Disc 280x22.2mm (CP4448-752/753)

AP Racing Ventilated Brake Disc 280x22.2mm (CP4448-752/753)

Outside diameter: 280 mm
Thickness: 22.2 mm
Mounting PCD: 165.1 mm
Mounting holes: 8
Fixing type: Bolted
Mounting hole diameter: 6.4 mm
Eye diameter: 180.3 mm
Inside flange diameter: 152 mm
Mounting flange thickness: 4.6 mm
Max pad depth: D51 (catalogue value; see fitment note)
Number of vanes: 48
Air gap: 10.5 mm
Face types available: G4

Pad fitment check: AP Racing sources differ for CP4448-752/753: the 2025 catalogue lists D51, the product webpage lists D50, and the linked customer drawing specifies a D48.6-depth pad. Confirm the pad and caliper combination against the applicable drawing revision before ordering.

Select the correct side and face style from the available options.

Face style notes

G4: straight grooves, number is grooves per face.

AP Racing part numbers: CP4448-752G4, CP4448-753G4.

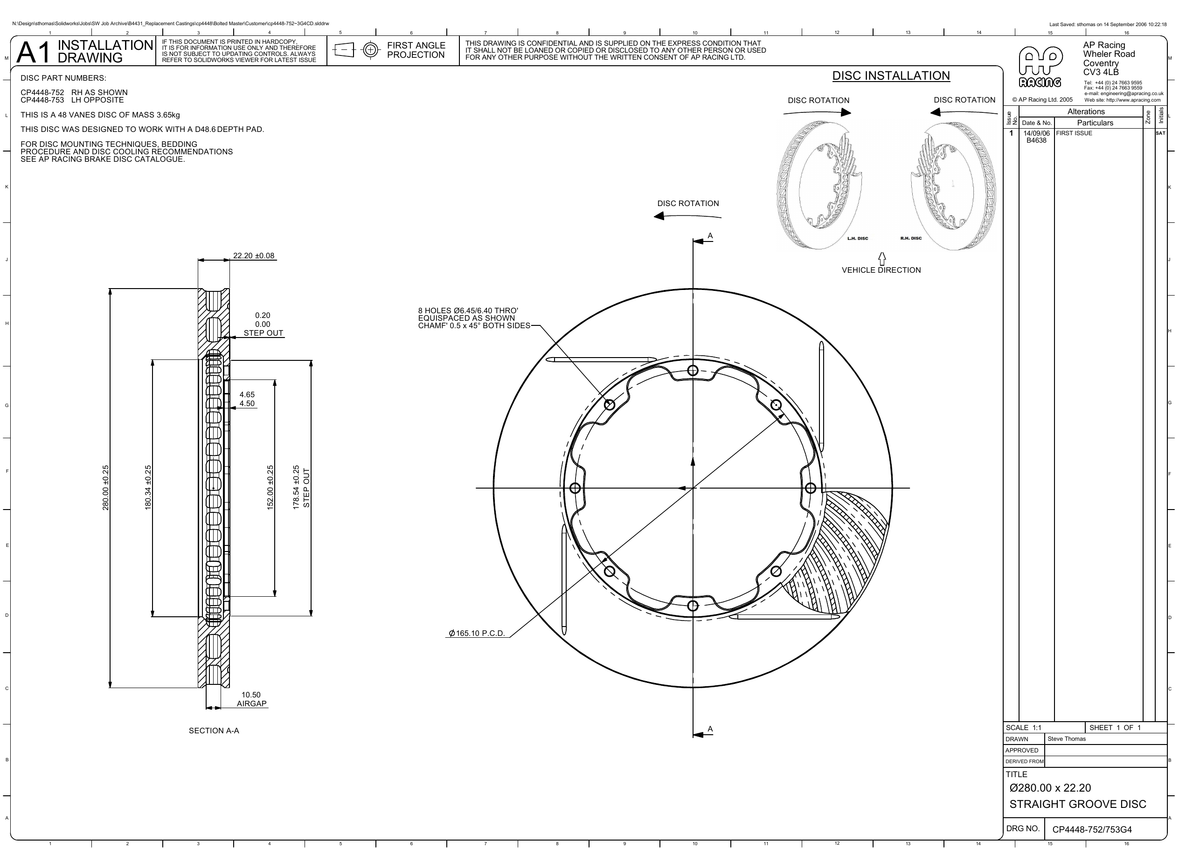

Technical drawing: AP Racing customer drawing PDF.

Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.
