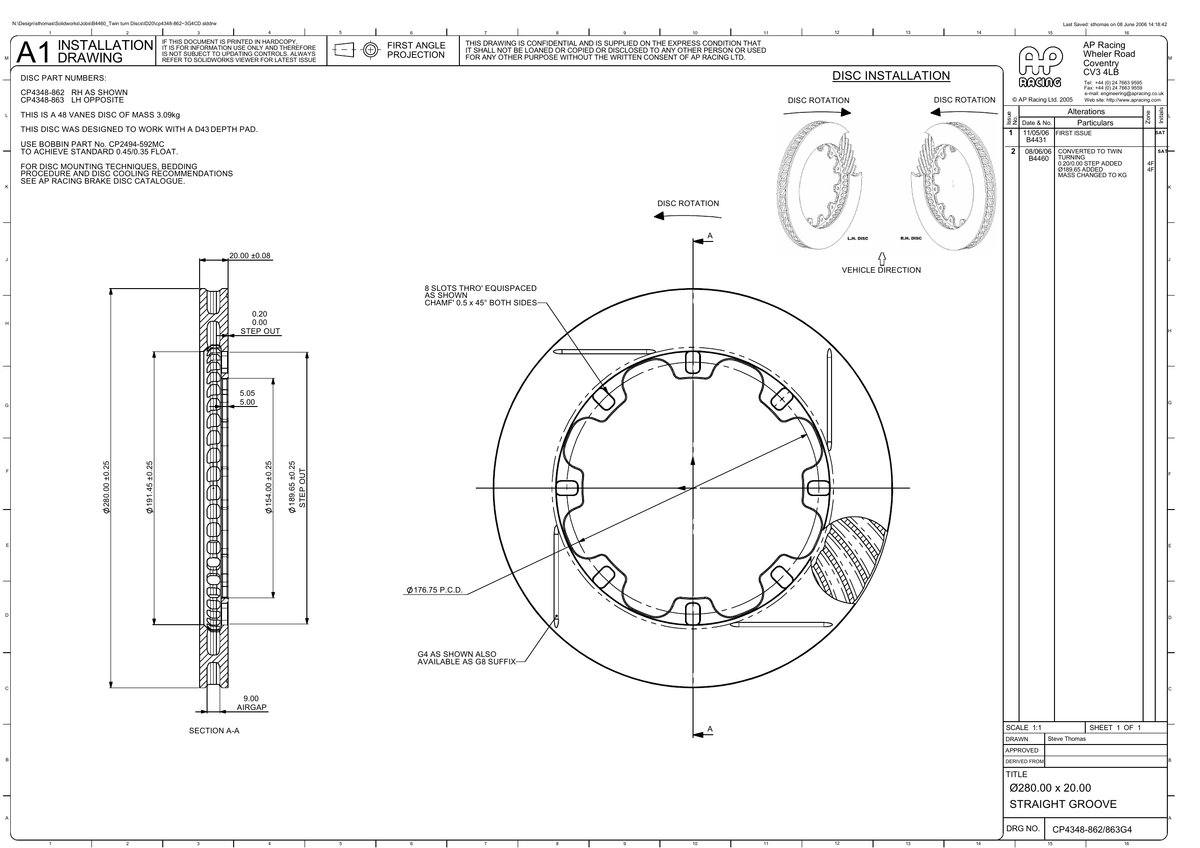

• AP Racing Ventilated Brake Disc 280x20mm (CP4348-862/863) technical drawing
  • SKU: CP4348-862G4

AP Racing Ventilated Brake Disc 280x20mm (CP4348-862/863)

518 €
Tax included.
Quantity

Product description

AP Racing Ventilated Brake Disc 280x20mm (CP4348-862/863)

  • Outside diameter: 280 mm
  • Thickness: 20 mm
  • Mounting PCD: 176.8 mm
  • Mounting holes: 8
  • Fixing type: Floating
  • Mounting bobbin: CP2494-592MC
  • Eye diameter: 192 mm
  • Inside flange diameter: 154 mm
  • Mounting flange thickness: 5 mm
  • Max pad depth: D44
  • Number of vanes: 48
  • Air gap: 9 mm
  • Face types available: D/G4/G8

Select the correct side and face style from the available options.

Side Face style Pad depth Approx. disc weight SKU
Right 4 straight grooves (G4) D44 — kg CP4348-862G4
Right 8 straight grooves (G8) D44 — kg CP4348-862G8
Left 4 straight grooves (G4) D44 — kg CP4348-863G4
Left 8 straight grooves (G8) D44 — kg CP4348-863G8

Face style notes

  • G4: straight grooves, number is grooves per face.
  • G8: straight grooves, number is grooves per face.

AP Racing part numbers: CP4348-862G4, CP4348-862G8, CP4348-863G4, CP4348-863G8.

Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.
