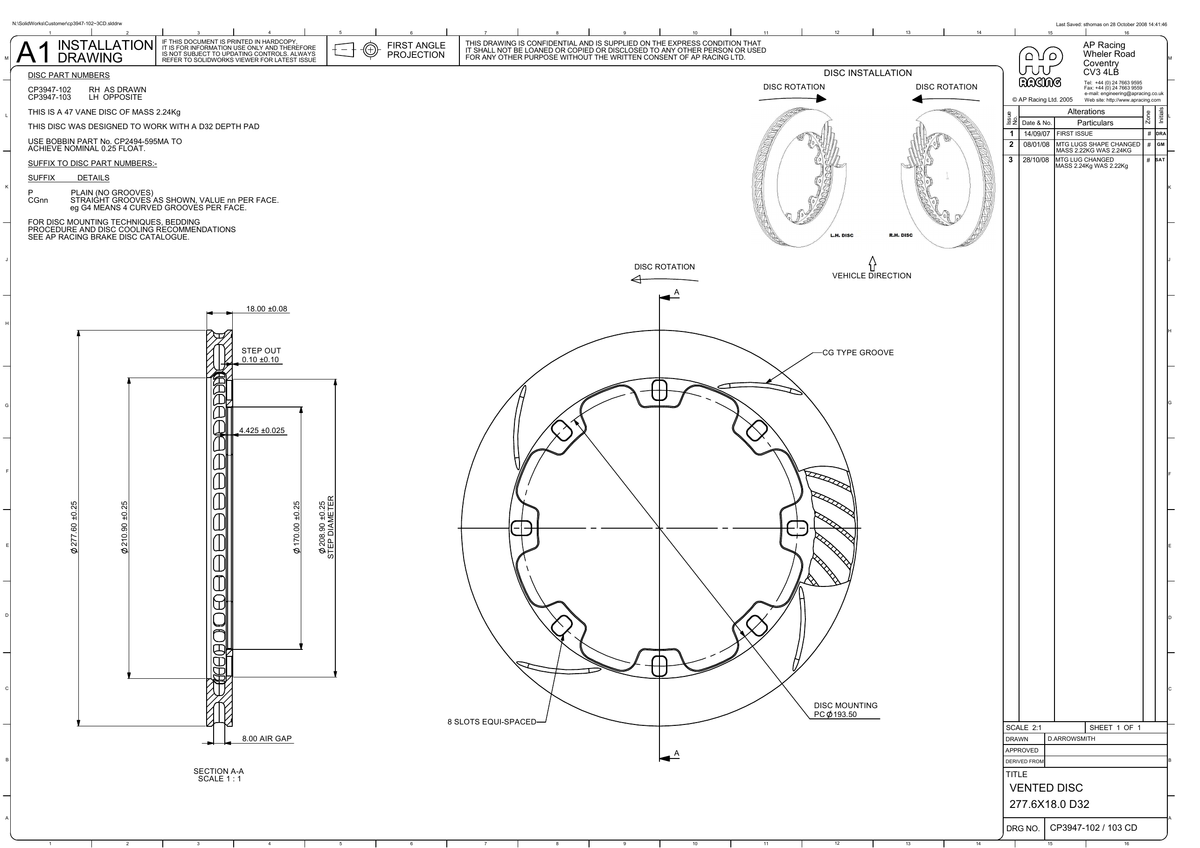

AP Racing Ventilated Brake Disc 278x18mm (CP3947-102/103)
Outside diameter: 278 mm
Thickness: 18 mm
Mounting PCD: 193.5 mm
Mounting holes: 8
Fixing type: Floating
Eye diameter: 210.9 mm
Inside flange diameter: 170 mm
Mounting flange thickness: 4.42 mm
Max pad depth: D32
Number of vanes: 47
Air gap: 8 mm
Approx. disc weight: 2.2 kg
Face types available: CG4
Select the correct side and face style from the available options.
| Side | Face style | Pad depth | Approx. disc weight | SKU |
|---|---|---|---|---|
| Right | 4 curved grooves (CG4) | D32 | 2.2 kg | CP3947-102CG4 |
| Left | 4 curved grooves (CG4) | D32 | 2.2 kg | CP3947-103CG4 |
Face style notes
CG4: curved grooves, number is grooves per face.
AP Racing part numbers: CP3947-102CG4, CP3947-103CG4.
Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.
