AP Racing Ventilated Brake Disc 280x17mm (CP3770-1012/1013)

AP Racing Ventilated Brake Disc 280x17mm (CP3770-1012/1013)

Outside diameter: 280 mm
Thickness: 17 mm
Mounting PCD: 176.8 mm
Mounting holes: 8
Fixing type: Bolted
Mounting hole diameter: 6.5 mm
Eye diameter: 193.5 mm
Inside flange diameter: 159 mm
Mounting flange thickness: 4.7 mm
Max pad depth: D43
Number of vanes: 24
Air gap: 6.5 mm
Approx. disc weight: 2.5 kg
Face types available: G8

Select the correct side and face style from the available options.

Face style notes

G8: straight grooves, number is grooves per face.

AP Racing part numbers: CP3770-1012G8, CP3770-1013G8.

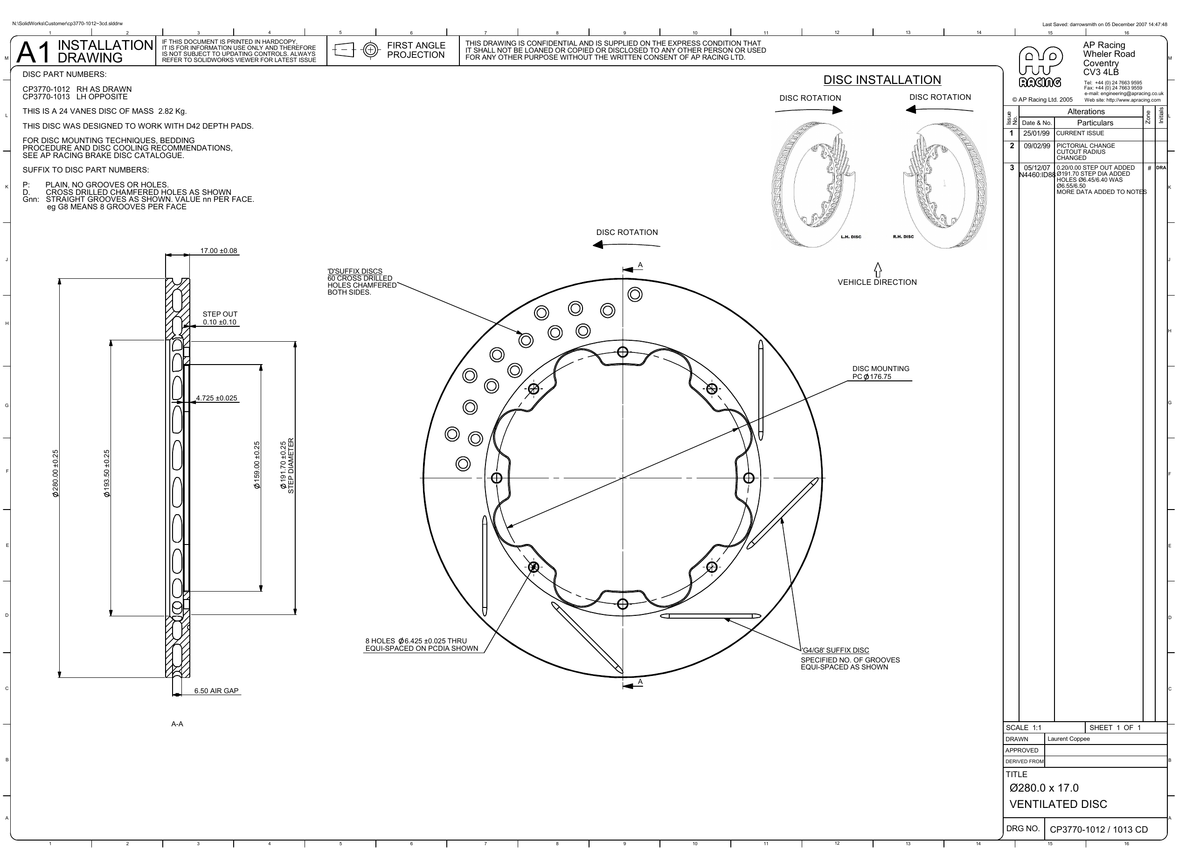

Technical drawing: AP Racing customer drawing PDF.

Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.
