AP Racing Ventilated Brake Disc 280x16mm (CP3770-1018/1019)
Outside diameter: 280 mm
Thickness: 16 mm
Mounting PCD: 171.4 mm
Mounting holes: 8
Fixing type: Floating
Mounting bobbin: CP2494-595MA
Eye diameter: 191.4 mm
Inside flange diameter: 146.5 mm (catalogue/web value; see drawing note)
Mounting flange thickness: 4.42 mm
Max pad depth: D43
Number of vanes: 24
Air gap: 6.5 mm
Approx. disc weight: 2.9 kg (catalogue/web value)
Face types available: CG8
Drawing revision check: AP Racing currently lists this disc as 280 × 16 mm. The linked CP3770-1018/1019 drawing also specifies 16 mm, with a 147.50 mm inside flange diameter and a 2.65 kg bare-disc mass; the catalogue/web table lists 146.5 mm and 2.9 kg. Confirm the applicable drawing revision and bell clearance before ordering. Bare-disc mass is not packed shipping weight.
Select the correct side and face style from the available options.
| Side | Face style | Pad depth | Approx. disc weight | SKU |
|---|---|---|---|---|
| Right | 8 curved grooves (CG8) | D43 | 2.9 kg (catalogue) | CP3770-1018CG8 |
| Left | 8 curved grooves (CG8) | D43 | 2.9 kg (catalogue) | CP3770-1019CG8 |
Face style notes
CG8: curved grooves, number is grooves per face.
AP Racing part numbers: CP3770-1018CG8, CP3770-1019CG8.

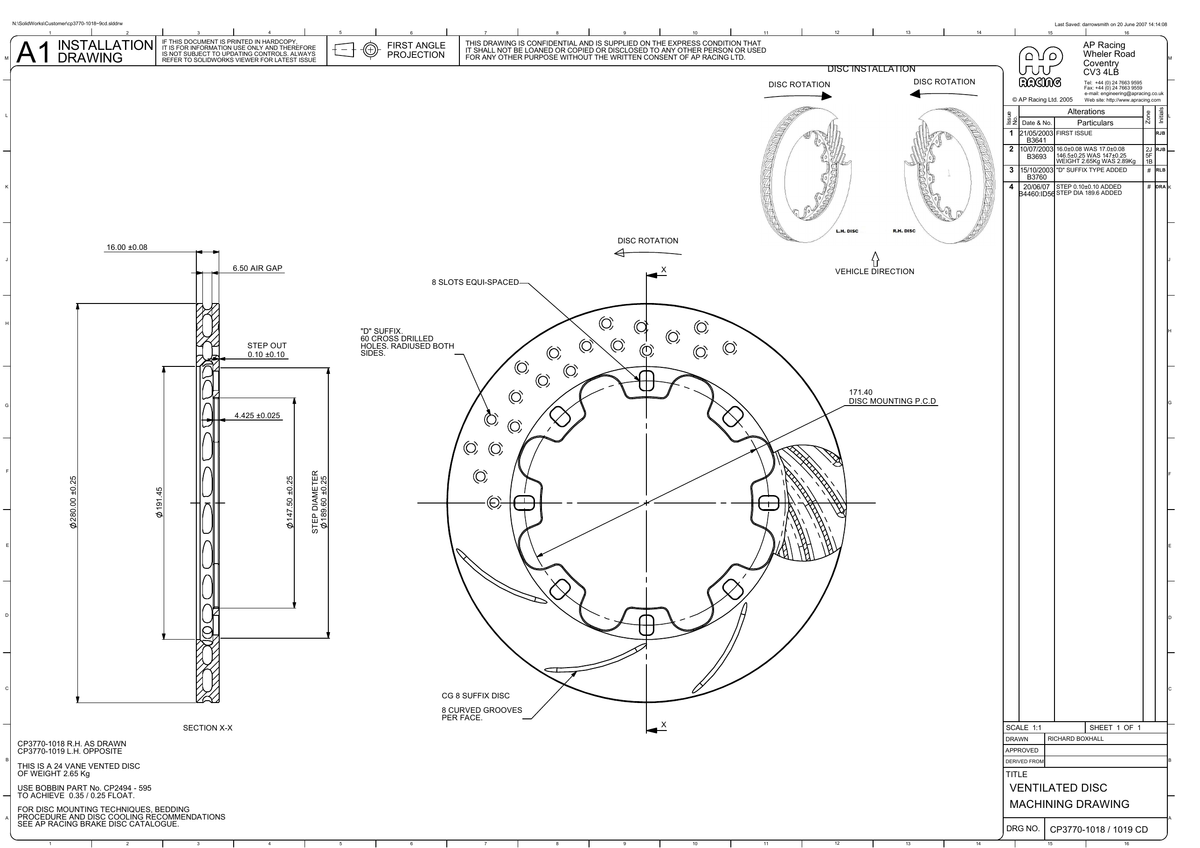

Technical drawing: AP Racing customer drawing PDF.
Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.
