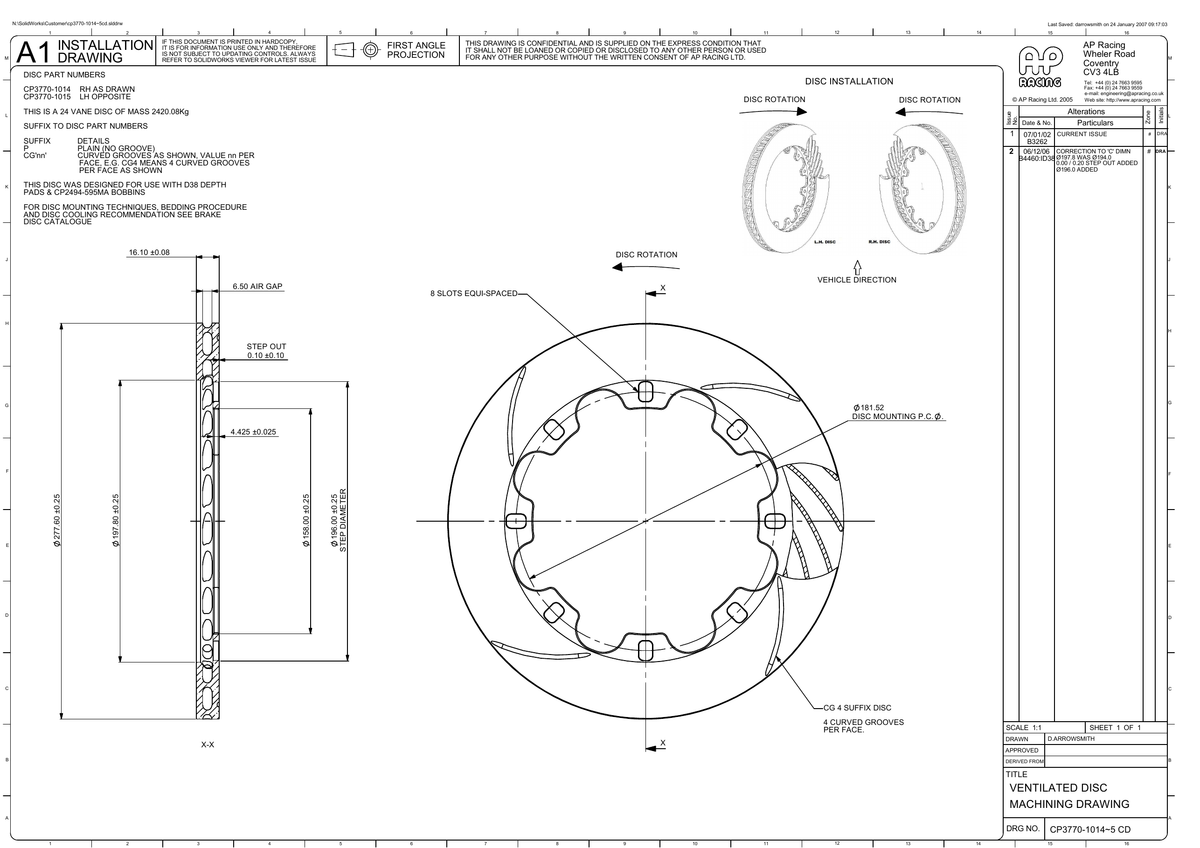

AP Racing Ventilated Brake Disc 278x16mm (CP3770-1014/1015)
Outside diameter: 278 mm
Thickness: 16 mm
Mounting PCD: 181.5 mm
Mounting holes: 8
Fixing type: Floating
Mounting bobbin: CP2494-595MA
Eye diameter: 194 mm
Inside flange diameter: 158 mm
Mounting flange thickness: 4.42 mm
Max pad depth: D38
Number of vanes: 24
Air gap: 6.5 mm
Approx. disc weight: 2.4 kg
Face types available: CG4
Select the correct side and face style from the available options.
| Side | Face style | Pad depth | Approx. disc weight | SKU |
|---|---|---|---|---|
| Right | 4 curved grooves (CG4) | D38 | 2.4 kg | CP3770-1014CG4 |
| Left | 4 curved grooves (CG4) | D38 | 2.4 kg | CP3770-1015CG4 |
Face style notes
CG4: curved grooves, number is grooves per face.
AP Racing part numbers: CP3770-1014CG4, CP3770-1015CG4.
Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.
For ordering assistance, email info@radaauto.ee.
