Not in stock, available to order

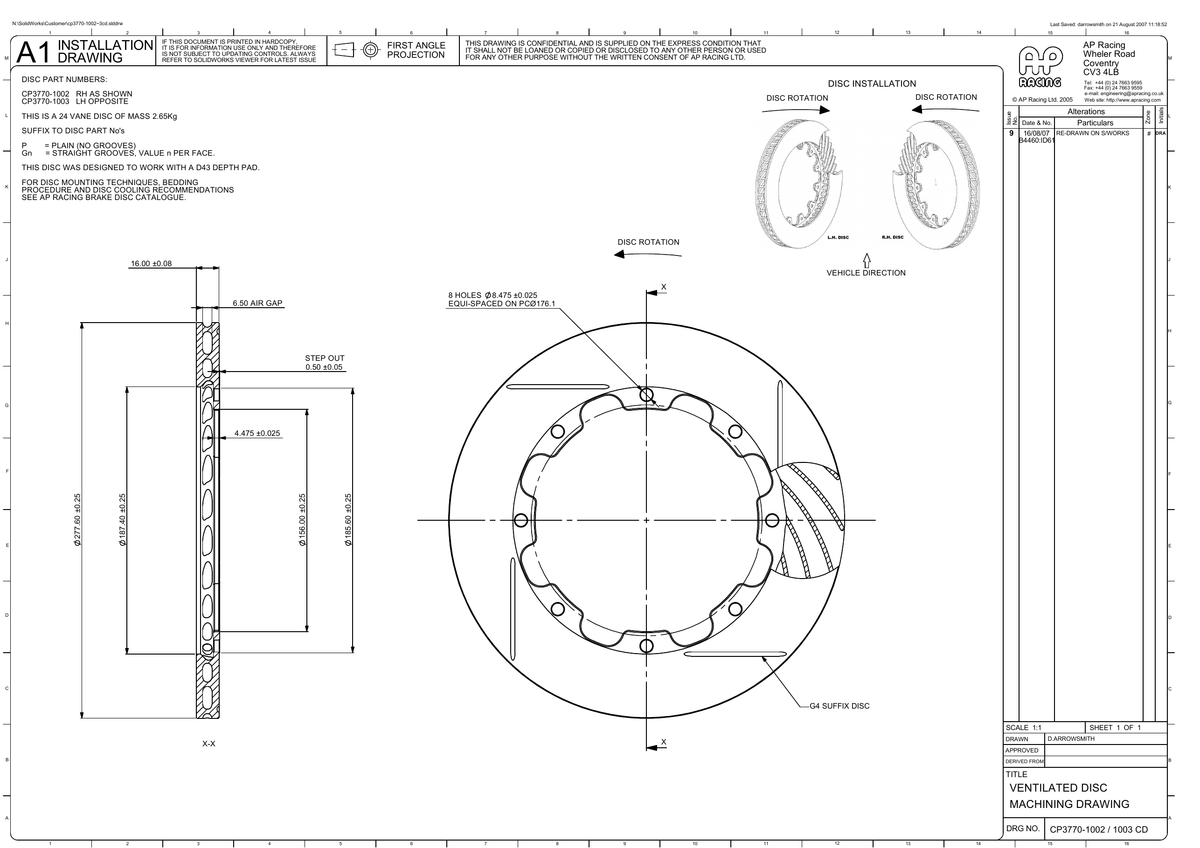

AP Racing Ventilated Brake Disc 278x16mm (CP3770-1002/1003)
Outside diameter: 278 mm
Thickness: 16 mm
Mounting PCD: 176.1 mm
Mounting holes: 8
Fixing type: Bolted
Mounting hole diameter: 8.45 mm
Eye diameter: 187.4 mm
Inside flange diameter: 156 mm
Mounting flange thickness: 4.5 mm
Max pad depth: D44
Number of vanes: 24
Air gap: 6.5 mm
Approx. disc weight: 2.5 kg
Face types available: G4/P
Select the correct side and face style from the available options.
| Side | Face style | Pad depth | Approx. disc weight | SKU |
|---|---|---|---|---|
| Right | 4 straight grooves (G4) | D44 | 2.5 kg | CP3770-1002G4 |
| Left | 4 straight grooves (G4) | D44 | 2.5 kg | CP3770-1003G4 |
Face style notes
G4: straight grooves, number is grooves per face.
AP Racing part numbers: CP3770-1002G4, CP3770-1003G4.
Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.
For ordering assistance, email info@radaauto.ee.
