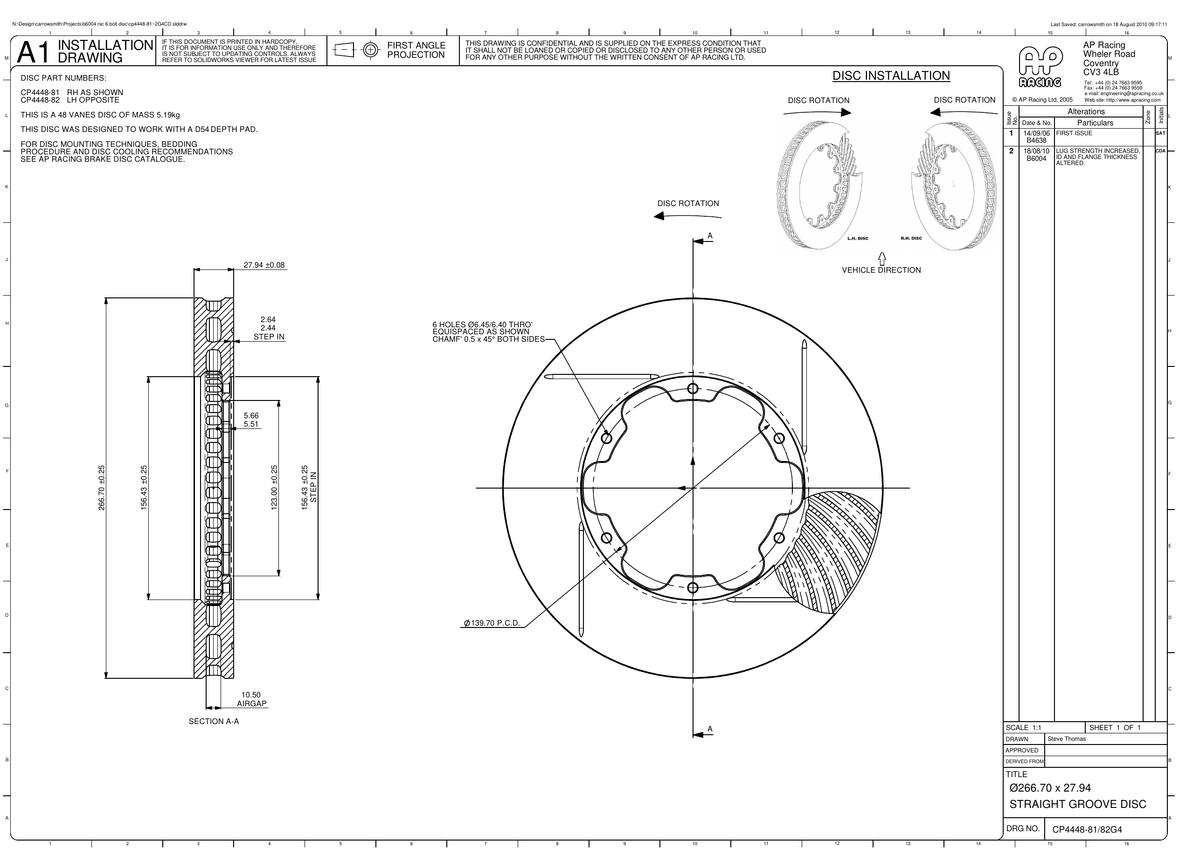

AP Racing Ventilated Brake Disc 267x28mm (CP4448-81/82)
Outside diameter: 267 mm
Thickness: 28 mm
Mounting PCD: 139.7 mm
Mounting holes: 6
Fixing type: Bolted
Mounting hole diameter: 6.4 mm
Eye diameter: 156.43 mm
Inside flange diameter: 123 mm
Mounting flange thickness: 5.58 mm
Max pad depth: D54
Number of vanes: 48
Air gap: 10.5 mm
Approx. disc weight: 5.1 kg
Face types available: G4
AP comments: Mounting flange stepped in 2.54mm
Select the correct side and face style from the available options.
| Side | Face style | Pad depth | Approx. disc weight | SKU |
|---|---|---|---|---|
| Right | 4 straight grooves (G4) | D54 | 5.1 kg | CP4448-81G4 |
| Left | 4 straight grooves (G4) | D54 | 5.1 kg | CP4448-82G4 |
Face style notes
G4: straight grooves, number is grooves per face.
AP Racing part numbers: CP4448-81G4, CP4448-82G4.
Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.
For ordering assistance, email info@radaauto.ee.
