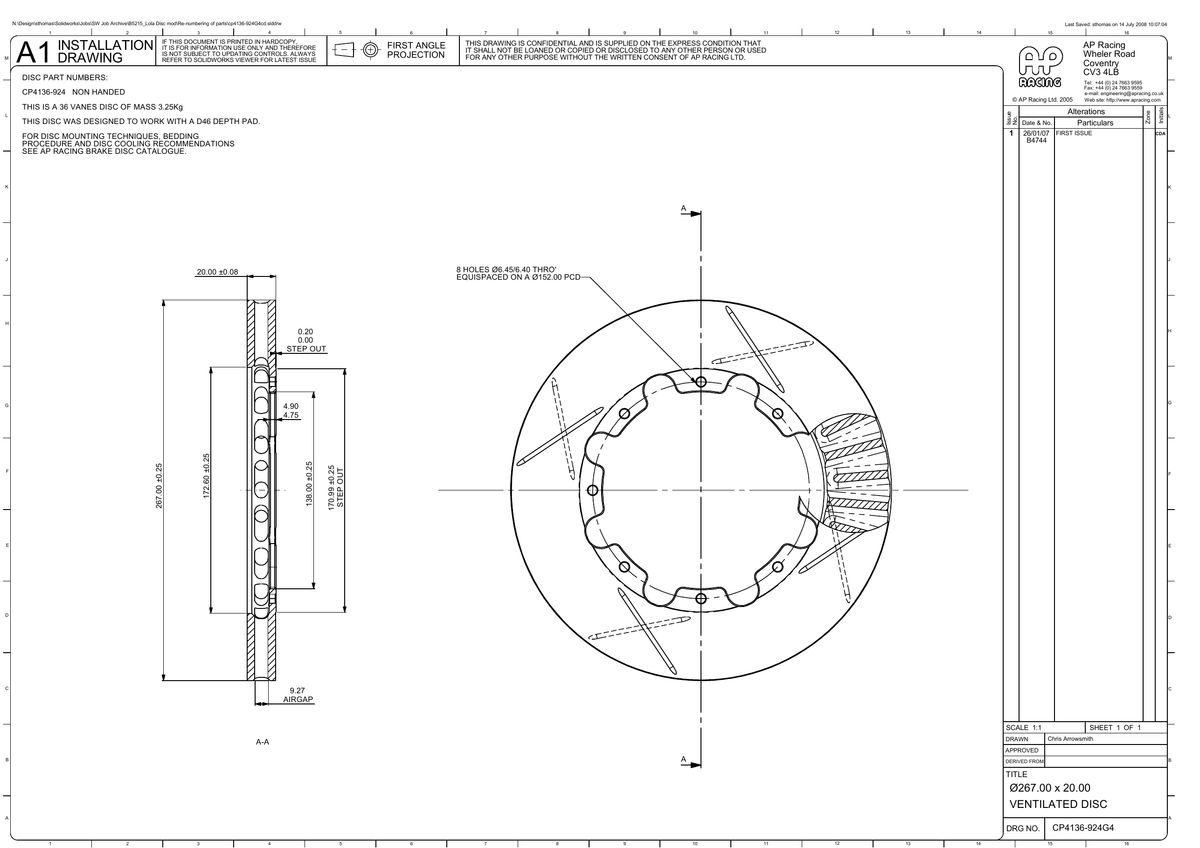

AP Racing Ventilated Brake Disc 267x20mm (CP4136-924)
Outside diameter: 267 mm
Thickness: 20 mm
Mounting PCD: 152 mm
Mounting holes: 8
Fixing type: Bolted
Mounting hole diameter: 6.4 mm
Eye diameter: 172.6 mm
Inside flange diameter: 138 mm
Mounting flange thickness: 4.82 mm
Max pad depth: D46
Number of vanes: 36
Air gap: 9.3 mm
Approx. disc weight: 3.2 kg
Face types available: G4
Select the correct side and face style from the available options.
| Side | Face style | Pad depth | Approx. disc weight | SKU |
|---|---|---|---|---|
| Default Title | 4 straight grooves (G4) | D46 | 3.2 kg | CP4136-924G4 |
Face style notes
G4: straight grooves, number is grooves per face.
AP Racing part numbers: CP4136-924G4.
Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.
