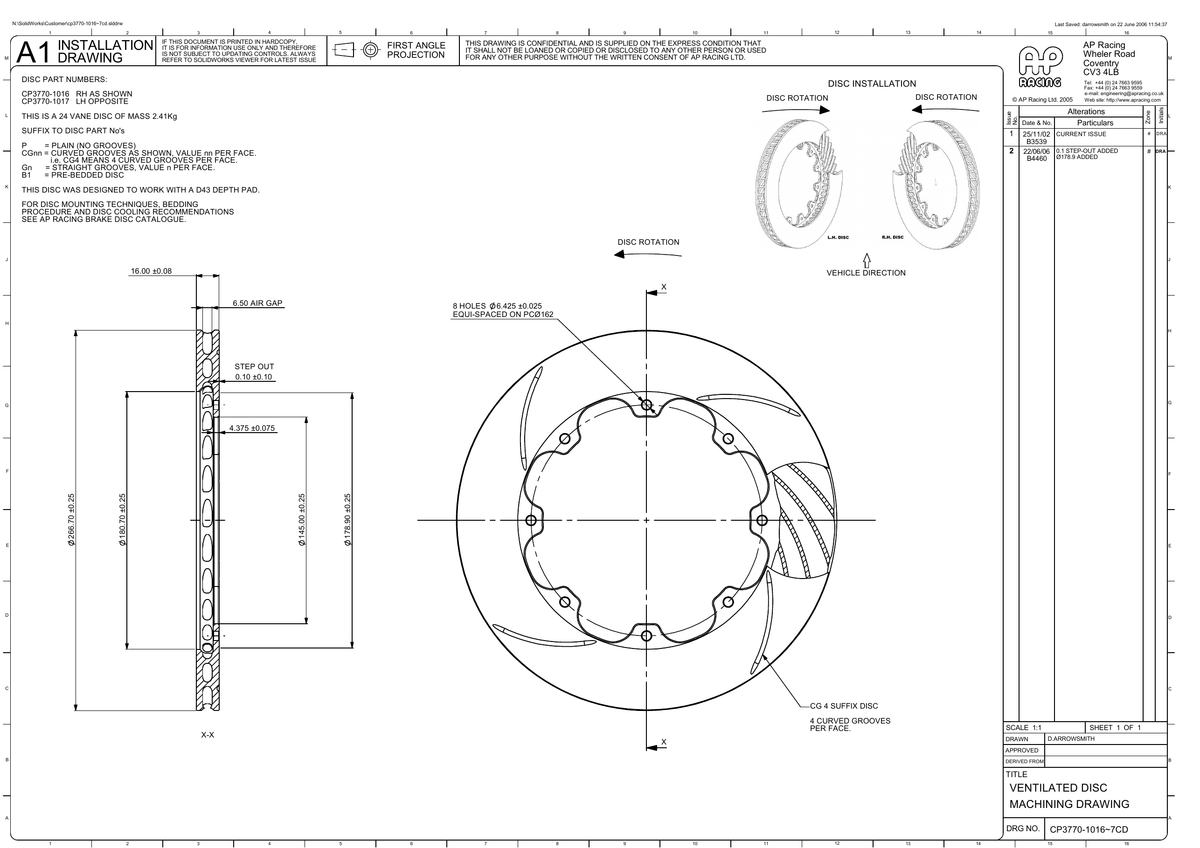

AP Racing Ventilated Brake Disc 267x16mm (CP3770-1016/1017)
Outside diameter: 267 mm
Thickness: 16 mm
Mounting PCD: 162 mm
Mounting holes: 8
Fixing type: Bolted
Mounting hole diameter: 6.4 mm
Eye diameter: 180.7 mm
Inside flange diameter: 145 mm
Mounting flange thickness: 4.35 mm
Max pad depth: D43
Number of vanes: 24
Air gap: 6.5 mm
Face types available: CG4
Select the correct side and face style from the available options.
| Side | Face style | Pad depth | Approx. disc weight | SKU |
|---|---|---|---|---|
| Right | 4 curved grooves (CG4) | D43 | — kg | CP3770-1016CG4 |
| Left | 4 curved grooves (CG4) | D43 | — kg | CP3770-1017CG4 |
Face style notes
CG4: curved grooves, number is grooves per face.
AP Racing part numbers: CP3770-1016CG4, CP3770-1017CG4.
Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.
