AP Racing Ventilated Brake Disc 264x21mm (CP4136-208)

AP Racing Ventilated Brake Disc 264x21mm (CP4136-208)

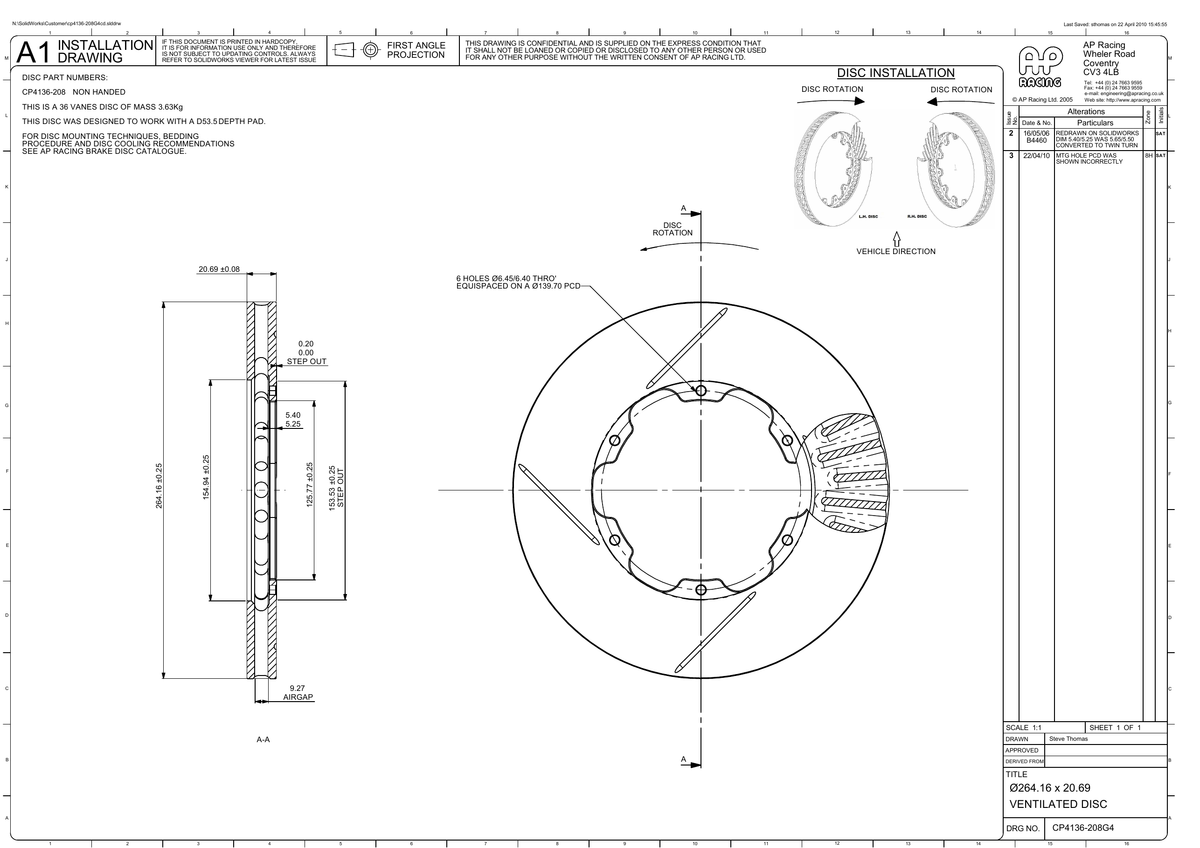

Outside diameter: 264 mm
Thickness: 21 mm
Mounting PCD: 139.7 mm
Mounting holes: 6
Fixing type: Bolted
Mounting hole diameter: 6.4 mm
Eye diameter: 154.9 mm
Inside flange diameter: 125.8 mm
Mounting flange thickness: 5.6 mm
Max pad depth: D51
Number of vanes: 36
Air gap: 9.3 mm
Approx. disc weight: 3.7 kg
Face types available: G4

Select the correct side and face style from the available options.

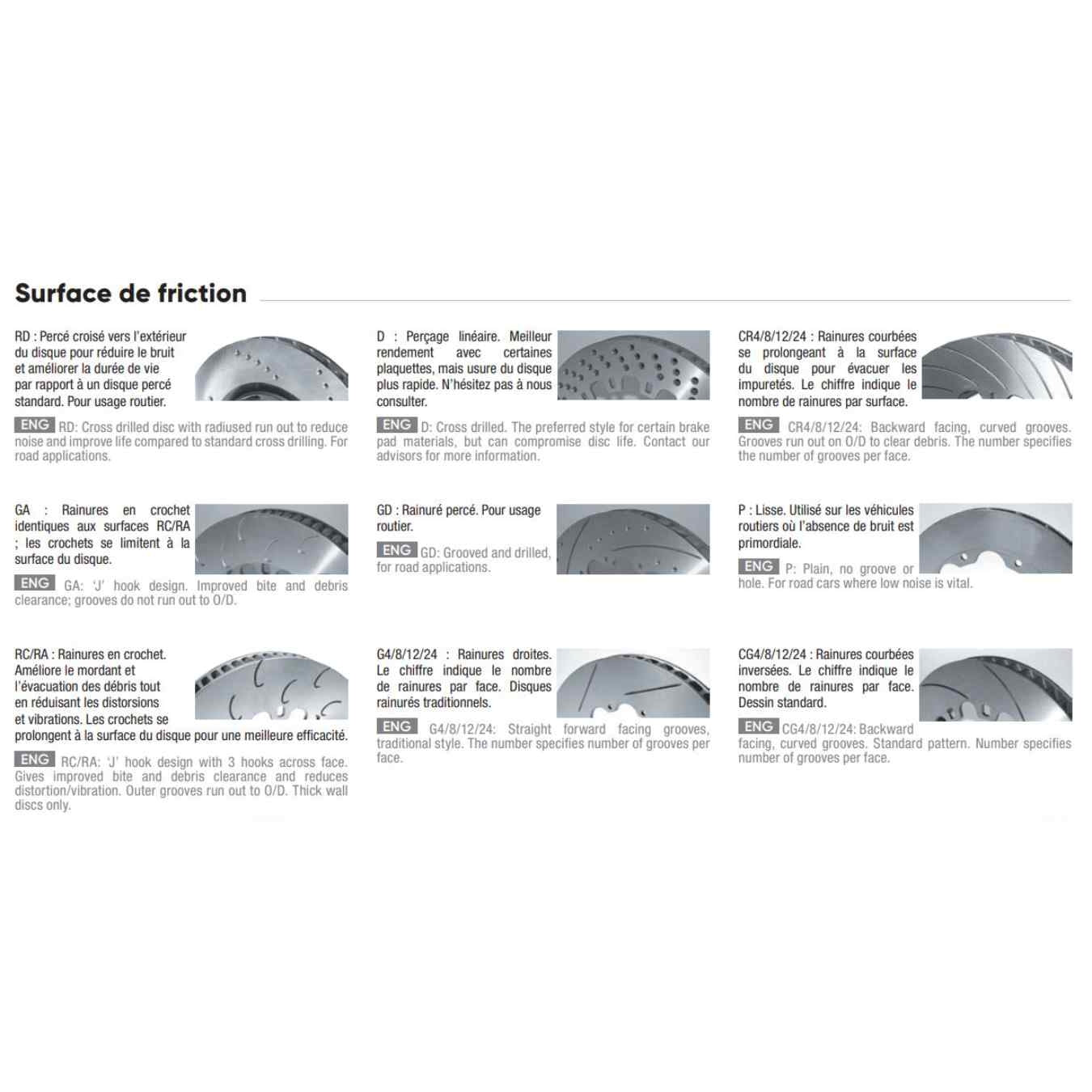

Face style notes

G4: straight grooves, number is grooves per face.

AP Racing part numbers: CP4136-208G4.

Source: AP Racing 2025 Product Catalogue. Check the part number and mounting dimensions against your application.
