Not in stock, available to order

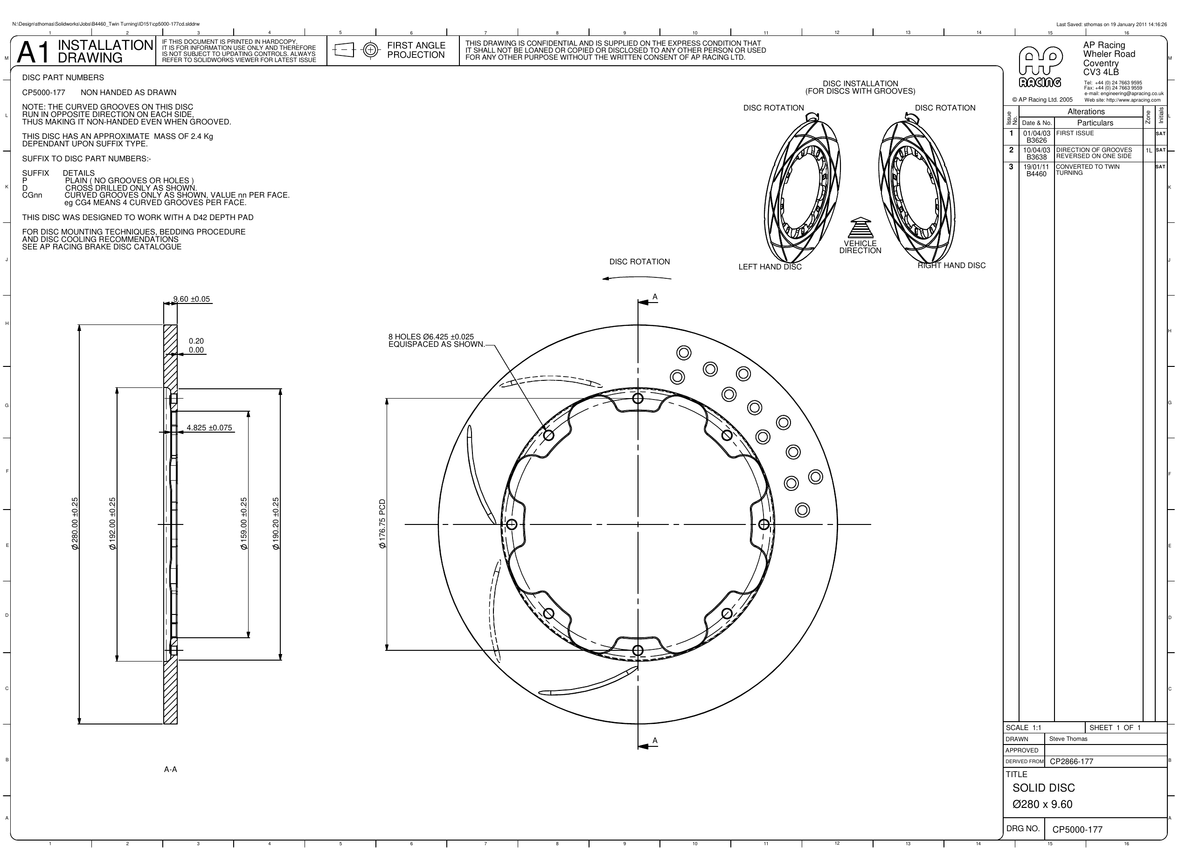

AP Racing Solid Brake Disc 280x9.6mm (CP5000-177)
Outside diameter: 280.0 mm
Thickness: 9.6 mm
Mounting PCD: 176.8 mm
Mounting holes: 8
Fixing type: Bolted
Side: Symmetrical — fits either side.
| Side | Face style | Pad depth | Approx. disc weight | SKU |
|---|---|---|---|---|
| Symmetrical | 4 curved grooves (CG4) | 44 mm | 2.5 kg | CP5000-177CG4 |
Disc weights are reference values and can vary with the face machining. They exclude packaging.
Groove and drilling styles
CG4: 4 curved, backward-facing grooves per face.
AP Racing part number: CP5000-177CG4.
Check the part number and mounting dimensions against your application. See the AP Racing catalogue for full disc details.
For ordering assistance, email info@radaauto.ee.

AP Racing Solid Brake Disc 280x9.6mm (CP5000-177)
