Compact centre-valve push type master cylinder with imperial hydraulic threads.
SPECIFICATION
Centre-valve configuration
Push type operation
Imperial hydraulic ports: 7/16" x 20 UNF inlet and 3/8" x 24 UNF outlet
Available with PRT or PRM push rod thread options
Available bore sizes: 15.9 to 25.4 mm
Choose the bore size and push rod thread required for the installation.
Select the required variant for the pedal box and hydraulic system.

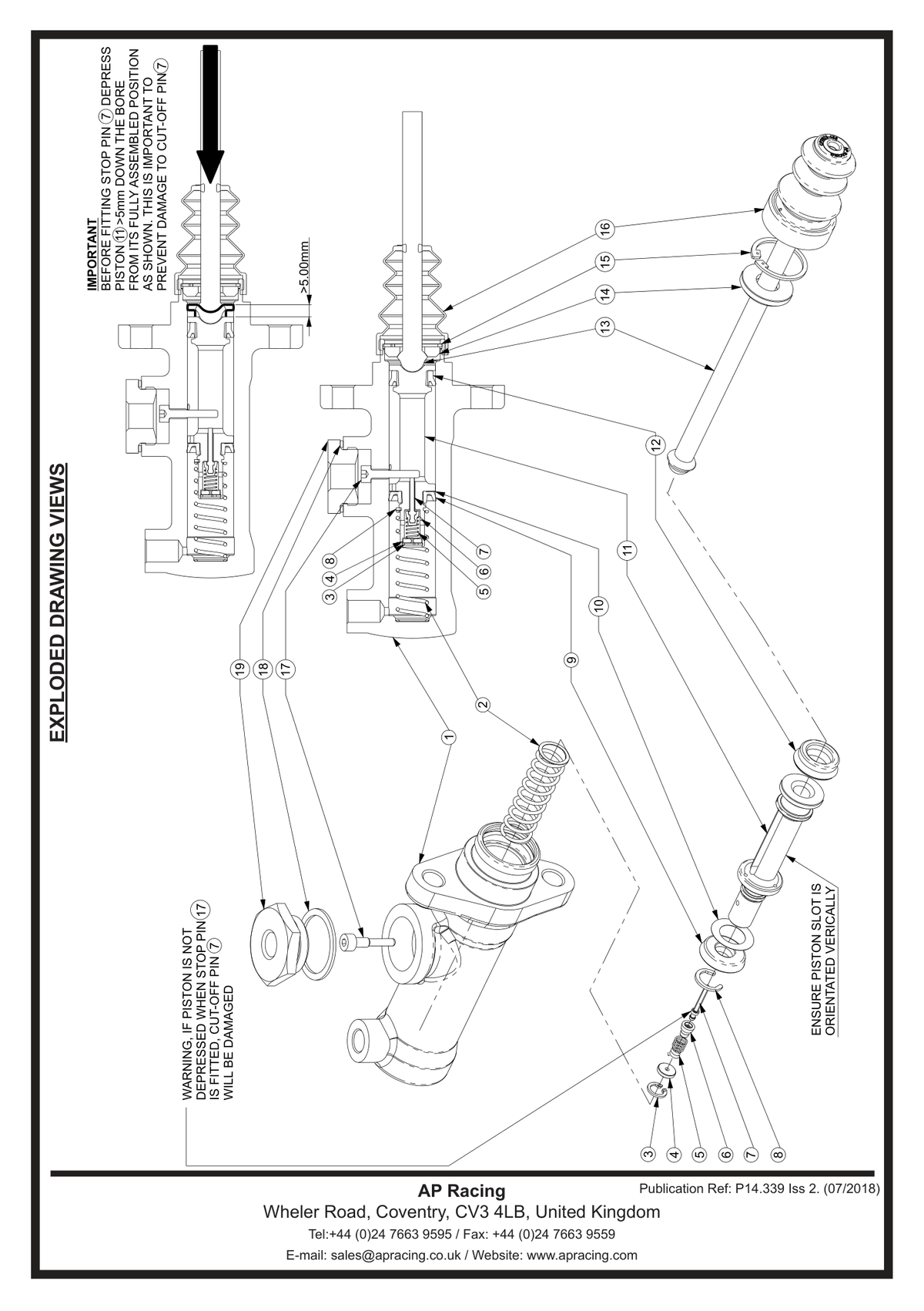

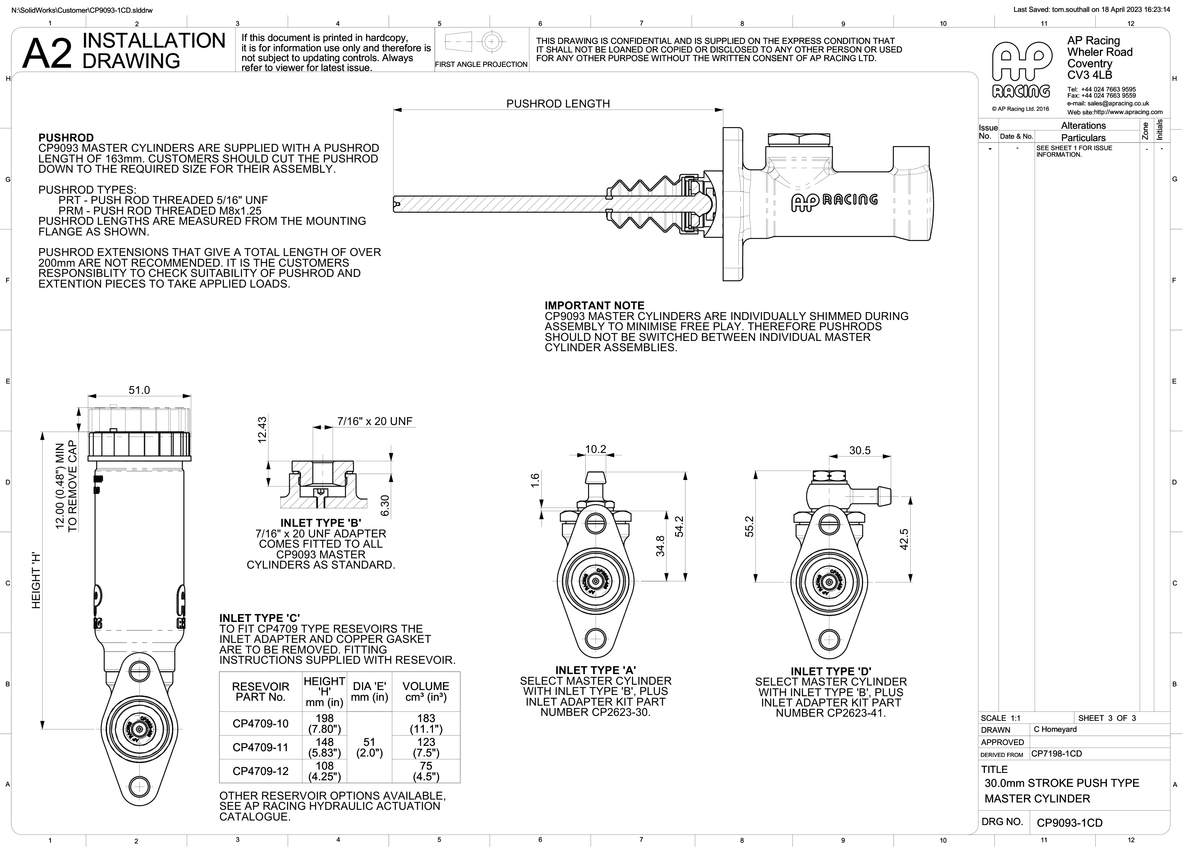

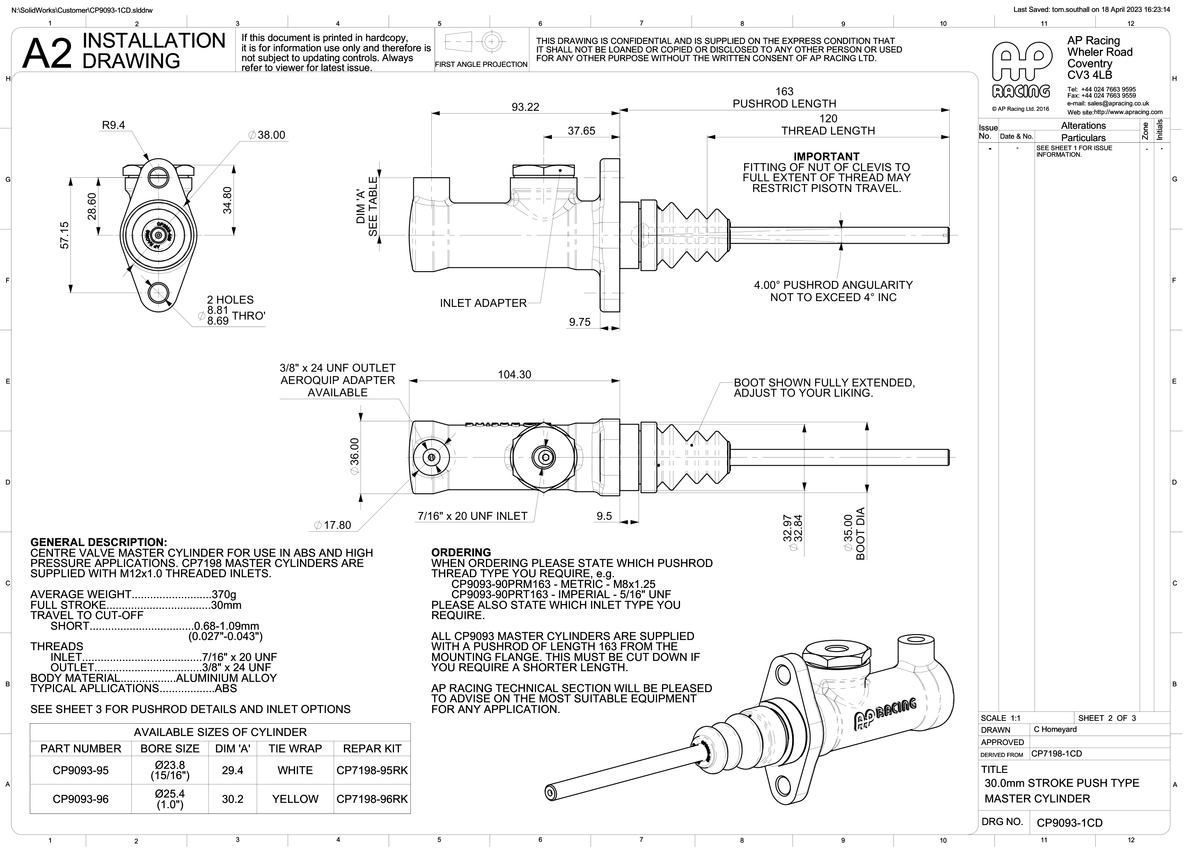

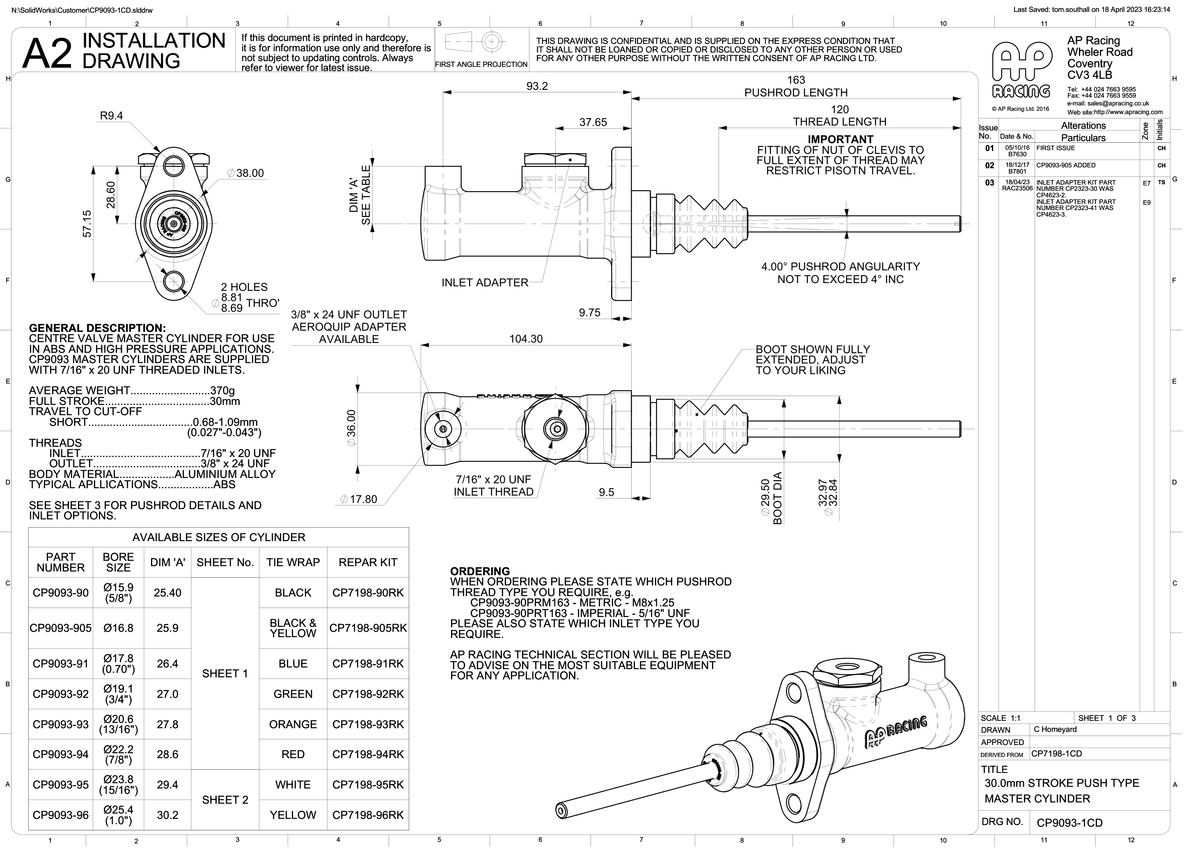

INSTALLATION AND INCLUDED PARTS Full stroke is 30 mm. Hydraulic ports are 7/16 in x 20 UNF inlet and 3/8 in x 24 UNF outlet. PRM rods use M8 x 1.25 threads and PRT rods use 5/16 in UNF; the standard length is 163 mm from the mounting flange. Rubber boots are fitted as standard. Check the installation drawing for the selected bore and inlet arrangement. This family replaces the obsolete CP6093 range; confirm installation compatibility rather than assuming a direct replacement.
