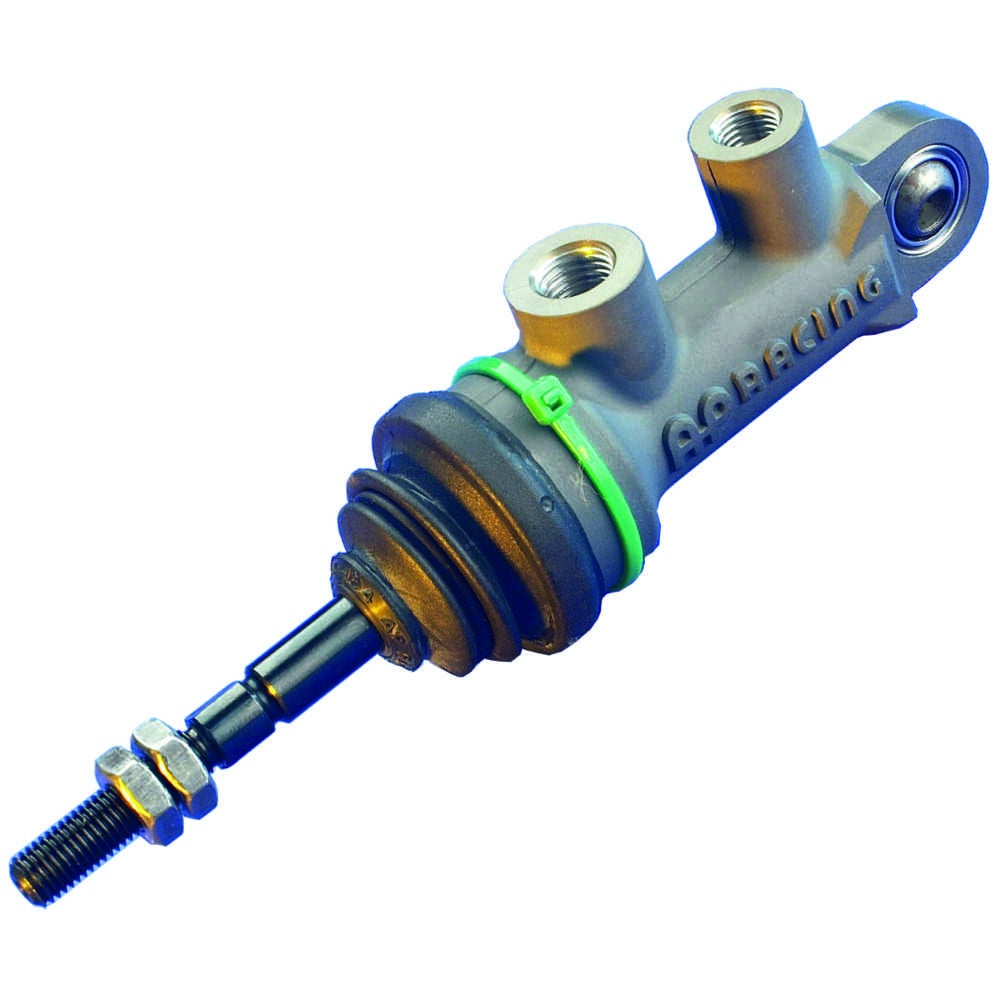

High-efficiency short push type bearing mounted single circuit master cylinder.
SPECIFICATION
Hard anodised aluminium alloy body
Spherical bearing mount
One-piece piston and push rod
Extra-short travel to cut-off: 0.48 to 0.63 mm
Full stroke: 30 mm for 14.0 to 22.2 mm bores, 28 mm for 23.8 to 25.4 mm bores
Inlet thread: 7/16 x 20 UNF
Outlet thread: 3/8 x 24 UNF
PRTE push rod thread: 5/16 x 24 UNF
Choose the required bore size.
Select the bore size that matches the pedal box and hydraulic system.

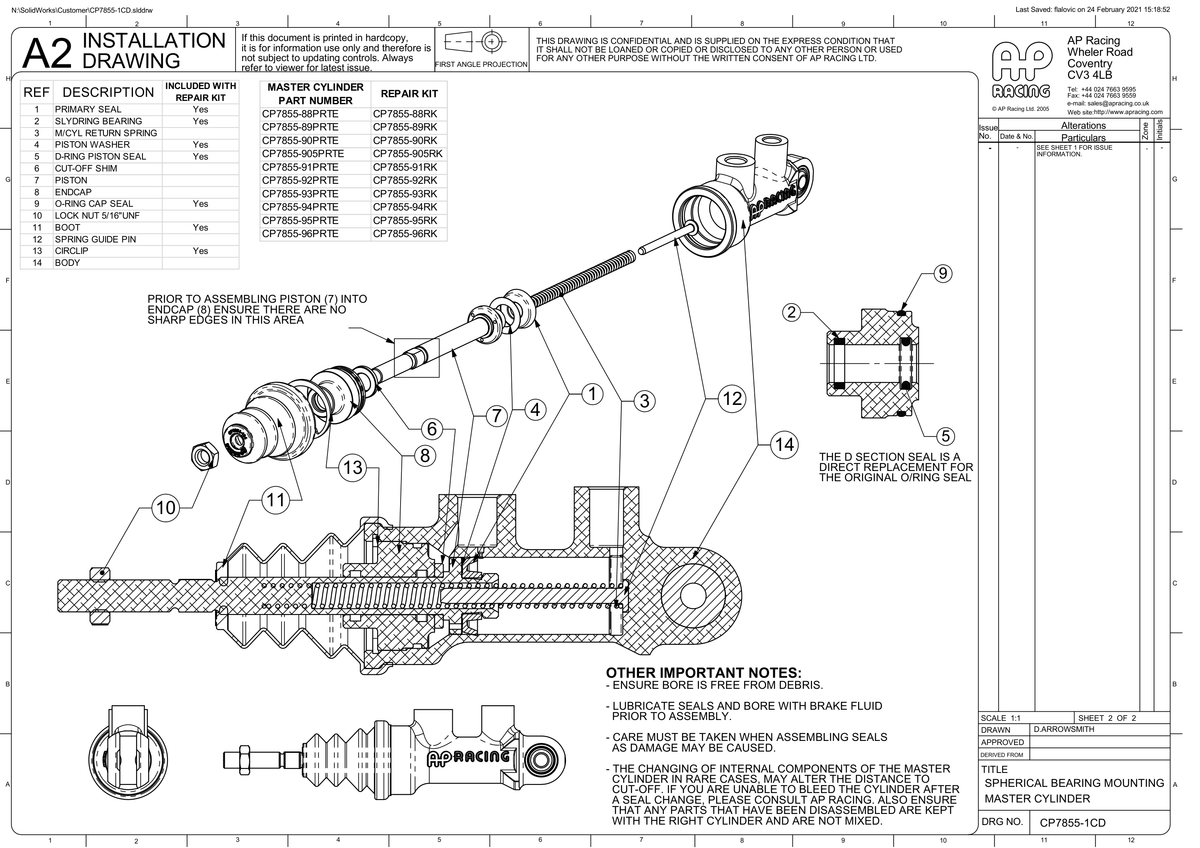

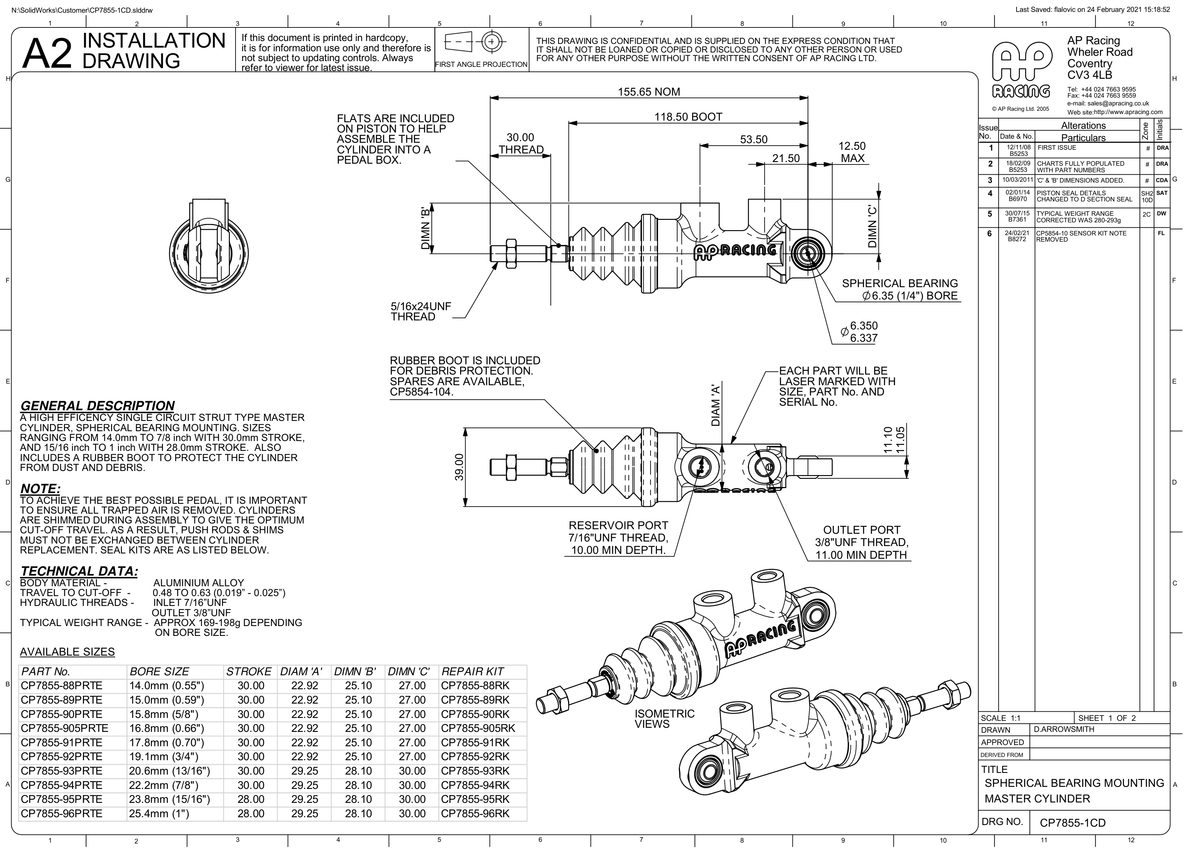

FITMENT AND PACKAGE NOTES Larger body dimensions apply to CP7855-93, -94, -95 and -96. Check the AP Racing installation drawing (PDF) against the space available before choosing the cylinder. A protective rubber boot is fitted as standard.
