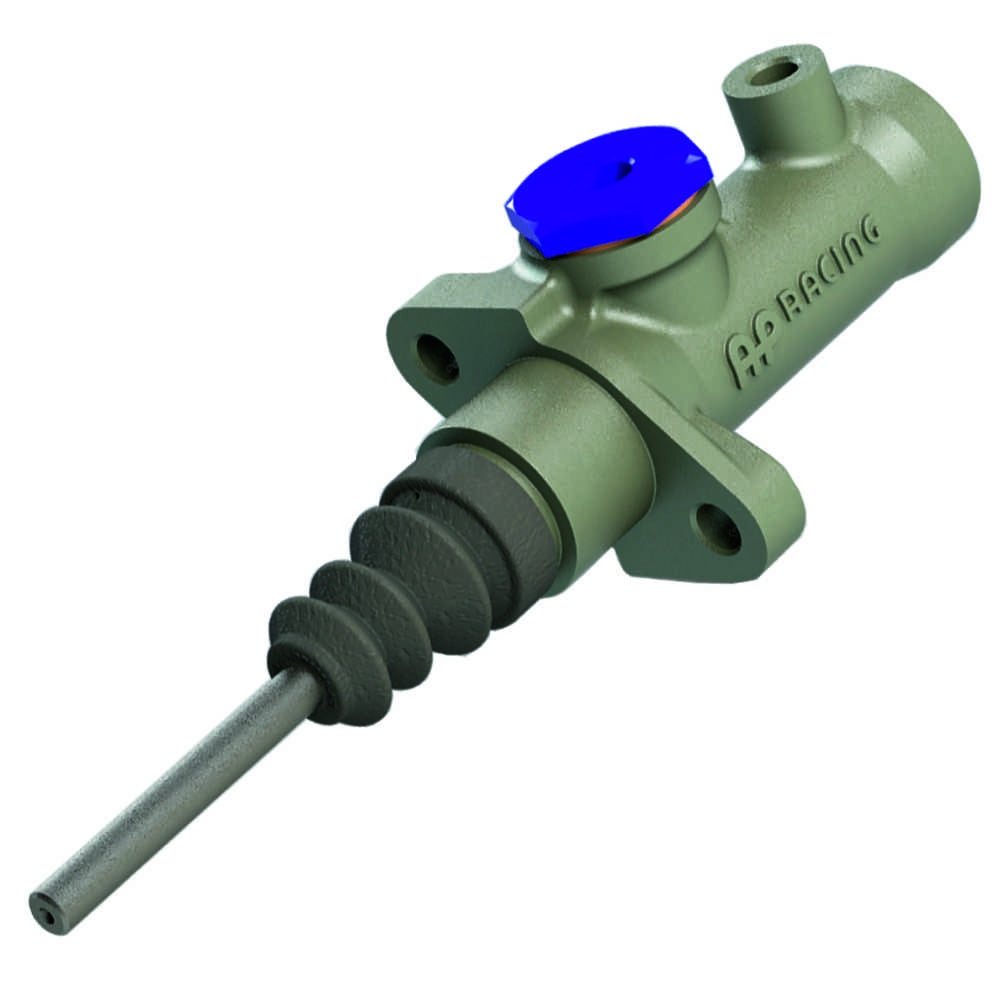

AP Racing CP7398 60 Degree Offset Centre Valve Master Cylinder
Centre-valve push type master cylinder with 60 degree offset flange mounting.
SPECIFICATION
Centre-valve configuration
60 degree offset mounting flange
Push type operation
Imperial hydraulic threads
Listed versions use PRT pushrods with 5/16 in UNF threads
Available bore sizes: 17.8 to 20.6 mm
Choose the bore size and push rod thread required for the installation.
Select the bore size that matches the pedal box and hydraulic system.
INSTALLATION AND INCLUDED PARTS

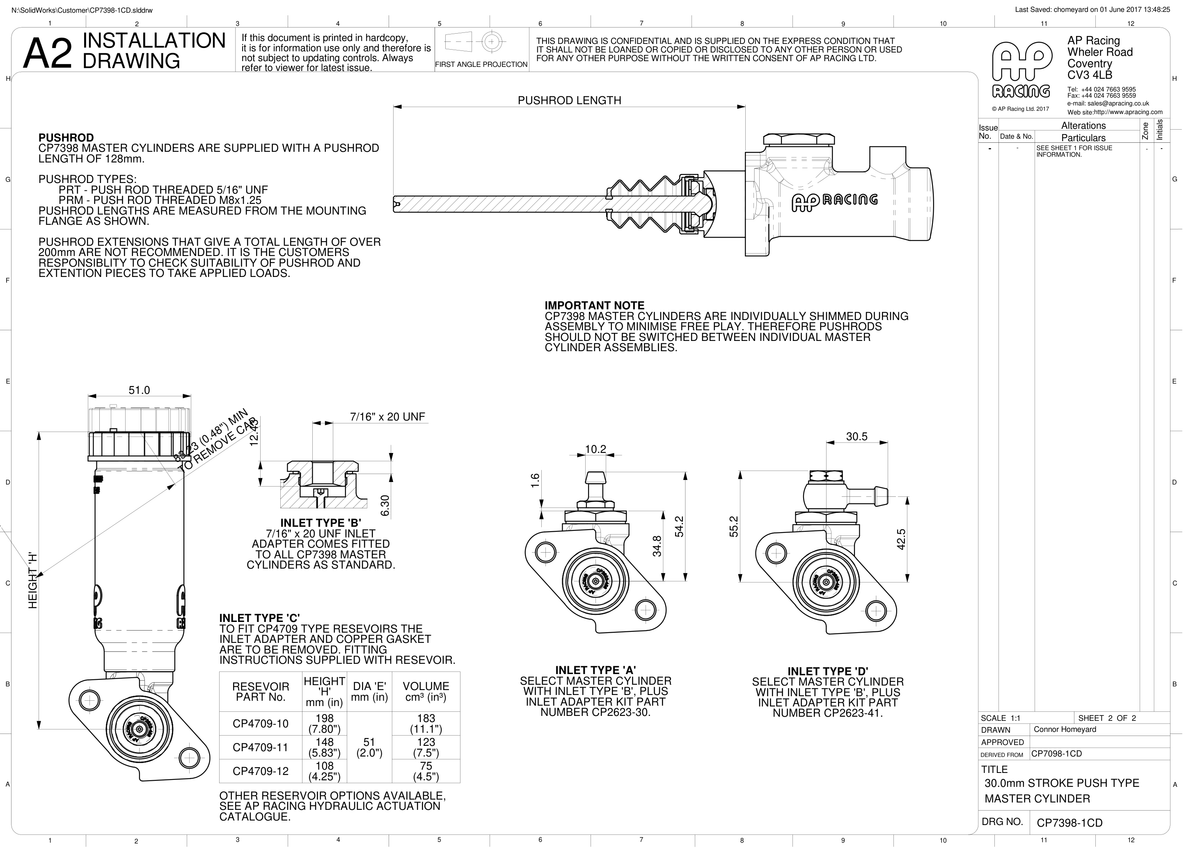

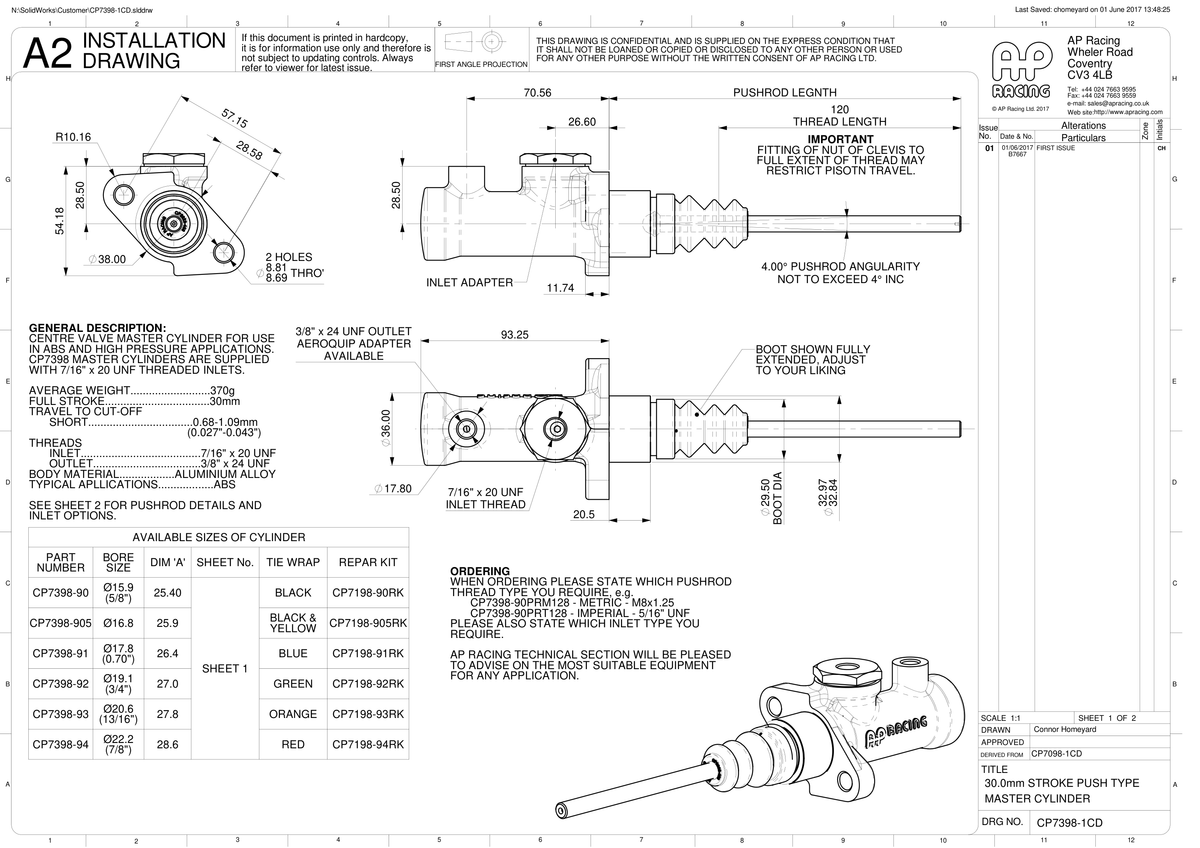

The listed versions use a 128 mm PRT pushrod with 5/16 in UNF thread. Hydraulic ports are 7/16 in x 20 UNF inlet and 3/8 in x 24 UNF outlet. Full stroke is 30 mm. The dust boot is fitted as standard; alternative inlet and reservoir options are separate. For CP7398-93PRT128, use the official drawing: its bore is 20.6 mm (13/16 in). Check the 60-degree mounting flange and surrounding clearance before ordering.

AP Racing CP7398 60° Offset Centre Valve Master Cylinder
17.8 mm / 0.70 in
