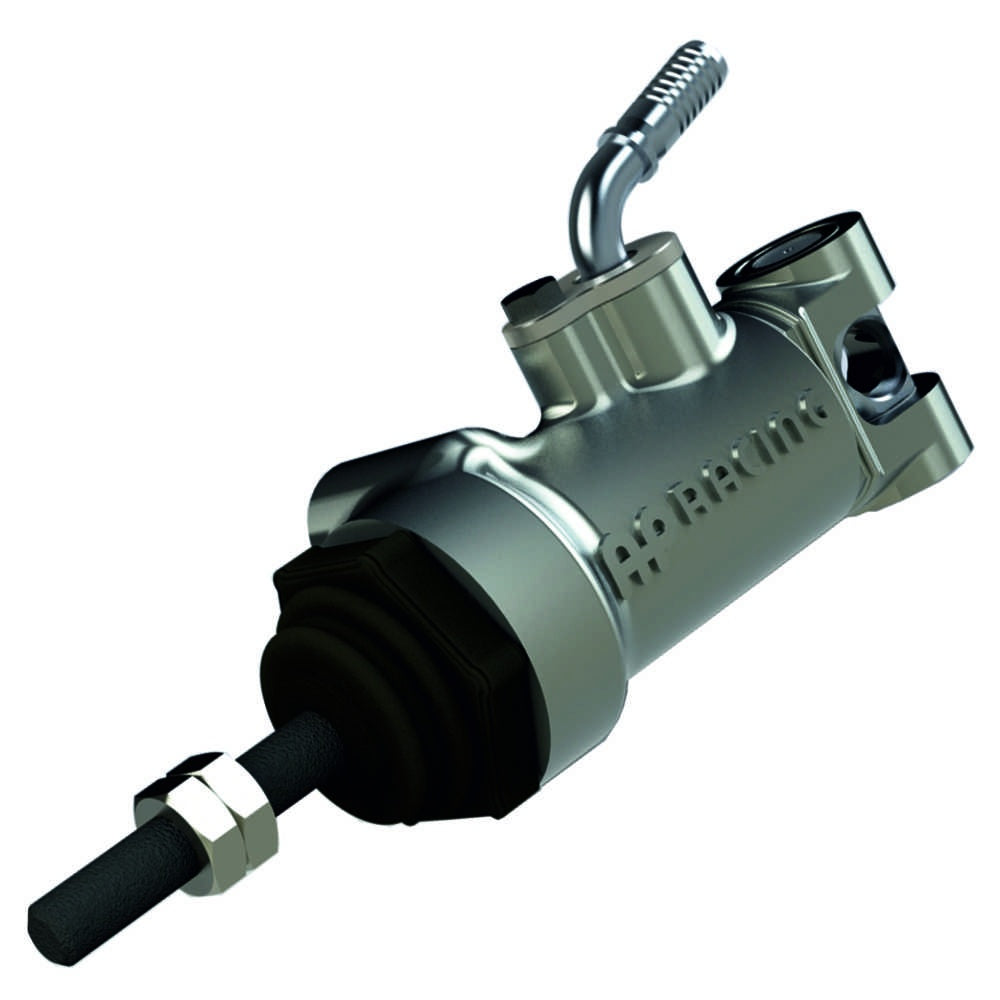

AP Racing CP6467 Centre Valve Pull Type Trunnion Master Cylinder
Centre-valve pull type trunnion mounted master cylinder for high-pressure and ABS brake applications.
SPECIFICATION
Aluminium alloy body
Centre-valve configuration for improved performance and seal durability
Extra-short travel to cut-off: 0.48 to 0.63 mm
Full stroke: 25.4 mm
Inlet thread: M10 x 1.0
Outlet thread: M10 x 1.0
PRME pull rod thread: M8 x 1.25
Available bore sizes: 14.9 to 25.4 mm
Choose the required bore size.
Select the bore size that matches the pedal box and hydraulic system.
FITMENT AND PACKAGE NOTES
Choose Standard (:S) or Anti-knockback (:K) using the Version selector. The 25.4 mm version has different inlet and outlet heights; check the installation drawing before selecting it.
A protective rubber boot is included. The swivel inlet fittings are supplied separately: CP6465-10 (75-degree bend), CP6465-11 (straight) or CP6465-12 (90-degree bend). Outlet fittings are also separate.

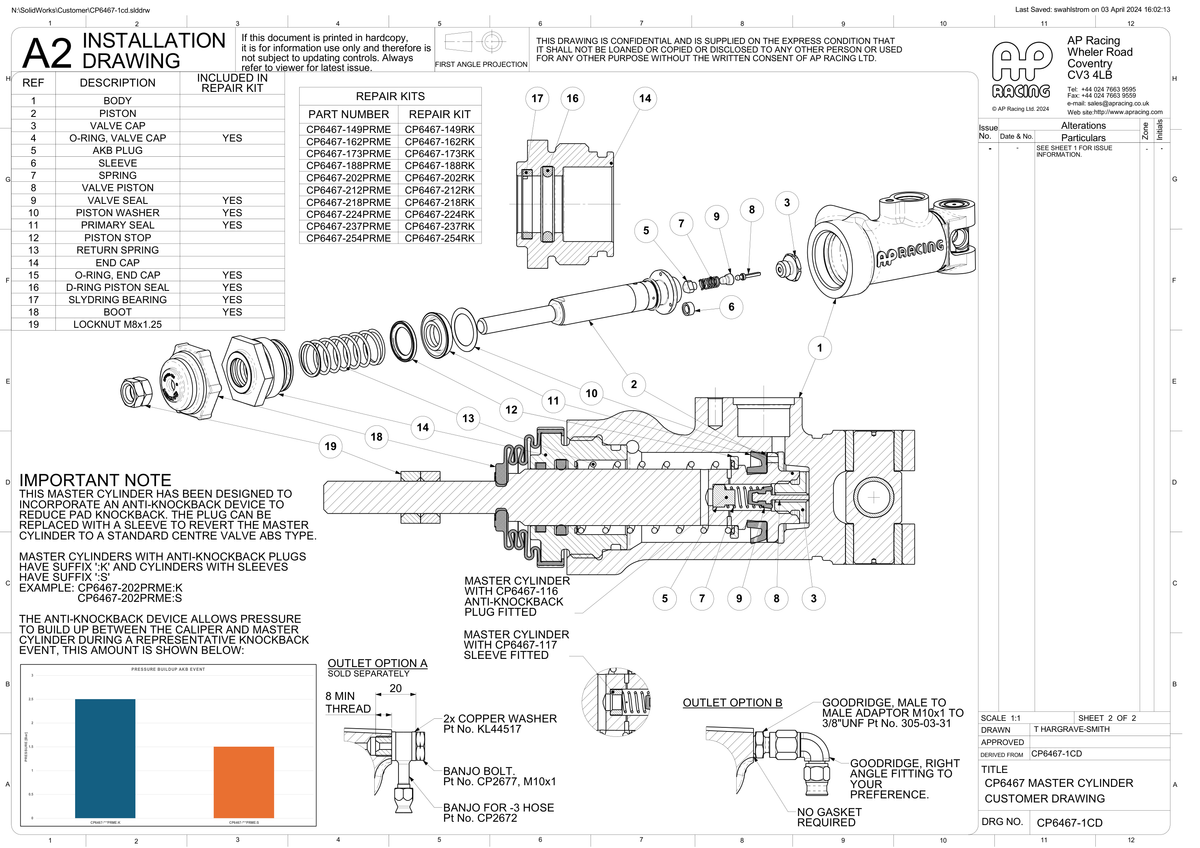

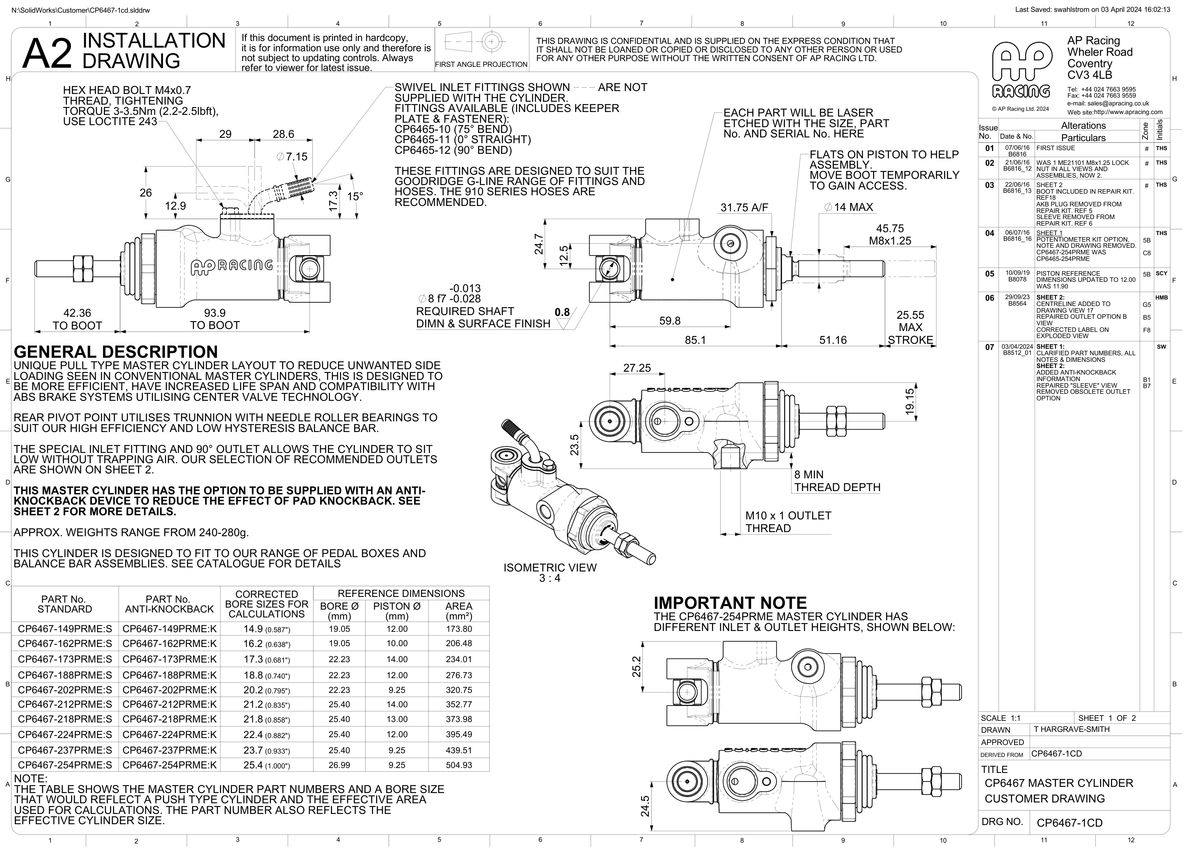

AP Racing installation drawing (PDF)

AP Racing CP6467 Centre Valve Pull Type Trunnion Master Cylinder
14.9 mm / 0.587 in / Standard
