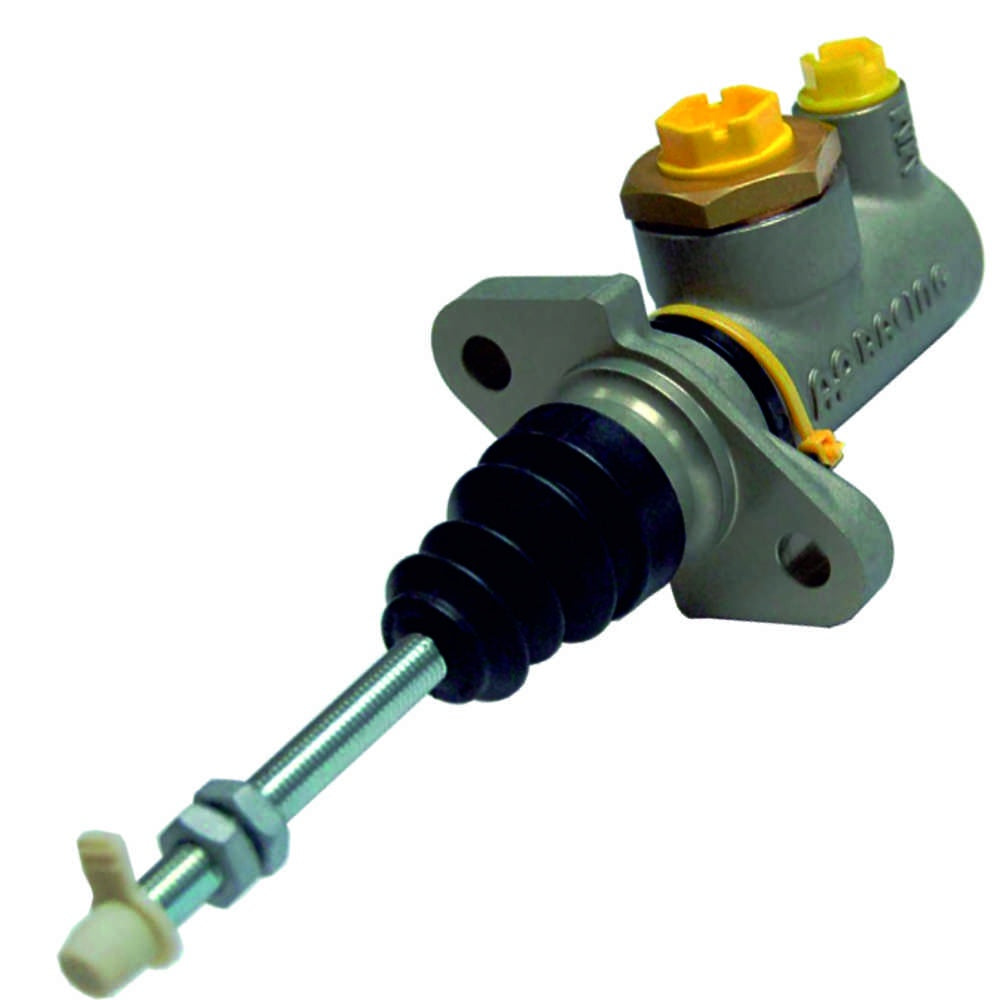

AP Racing CP4623 Master Cylinder
Compact 60 degree offset flange mounted single circuit master cylinder for competition brake and clutch hydraulic systems.
SPECIFICATION
Aluminium body
60 degree offset flange mounting
Short travel to cut-off
Metric hydraulic ports: M12 x 1.0 inlet and M10 x 1.0 outlet
Available in multiple bore sizes
Available with PRM or PRT push rod thread options and different push rod lengths
Choose the bore size and push rod configuration required for the installation.
Select the required variant for the pedal box and hydraulic system.
INSTALLATION AND INCLUDED PARTS
The standard M12 x 1.0 threaded inlet is supplied. Alternative push-on inlet adapters and reservoirs are separate options. PRM rods use M8 x 1.25 threads and PRT rods use 5/16 in UNF; length is measured from the mounting flange. The 23.8 mm version has a larger boot and different installation dimensions. A 25.4 mm version is not offered in this family. Do not interchange pushrods between individually shimmed cylinders.

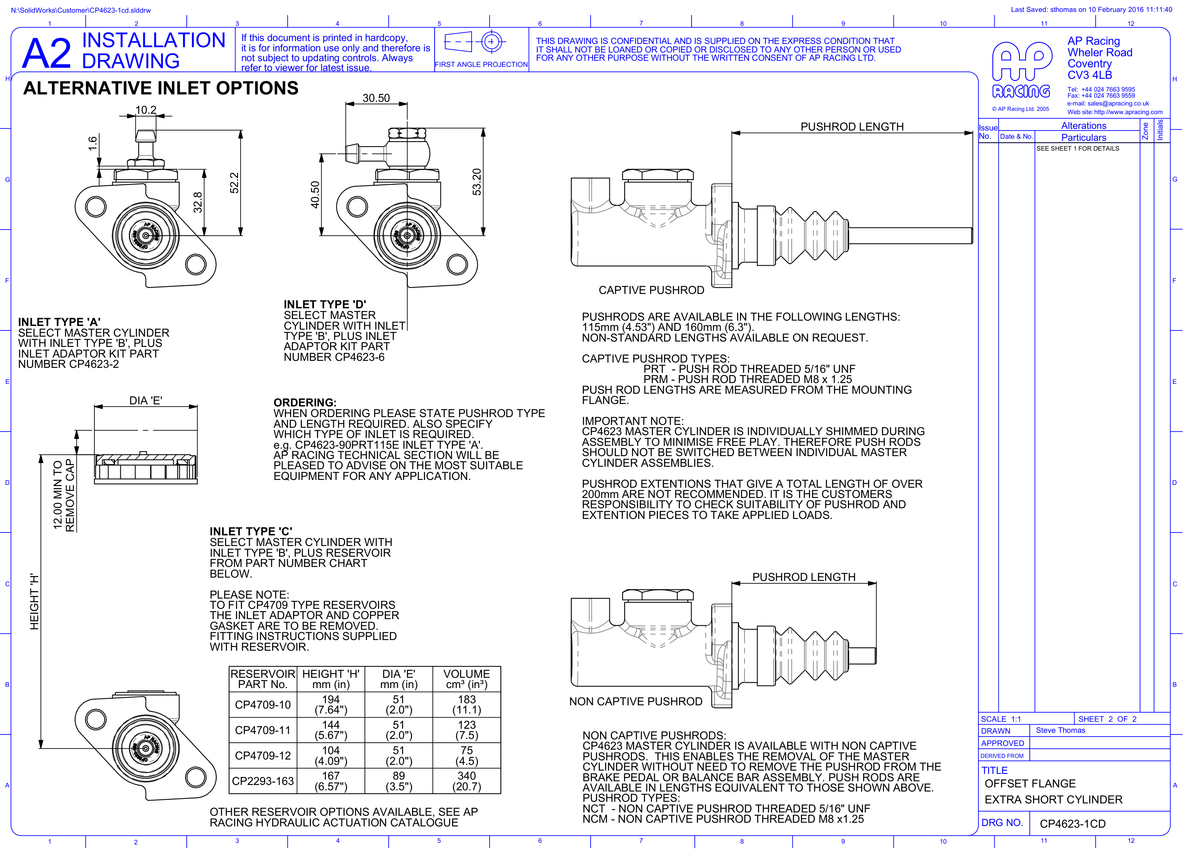

AP Racing CP4623 installation drawing
NON-CAPTIVE (NC) OPTIONS
NC identifies the non-captive cylinder configuration. Match it to the appropriate non-captive pushrod installation. The NC option does not select a PRM or PRT captive-pushrod thread or length; NCM and NCT non-captive pushrods are different configurations.

AP Racing CP4623 Master Cylinder
14 mm / PRM - M8x1.25 / 160mm
