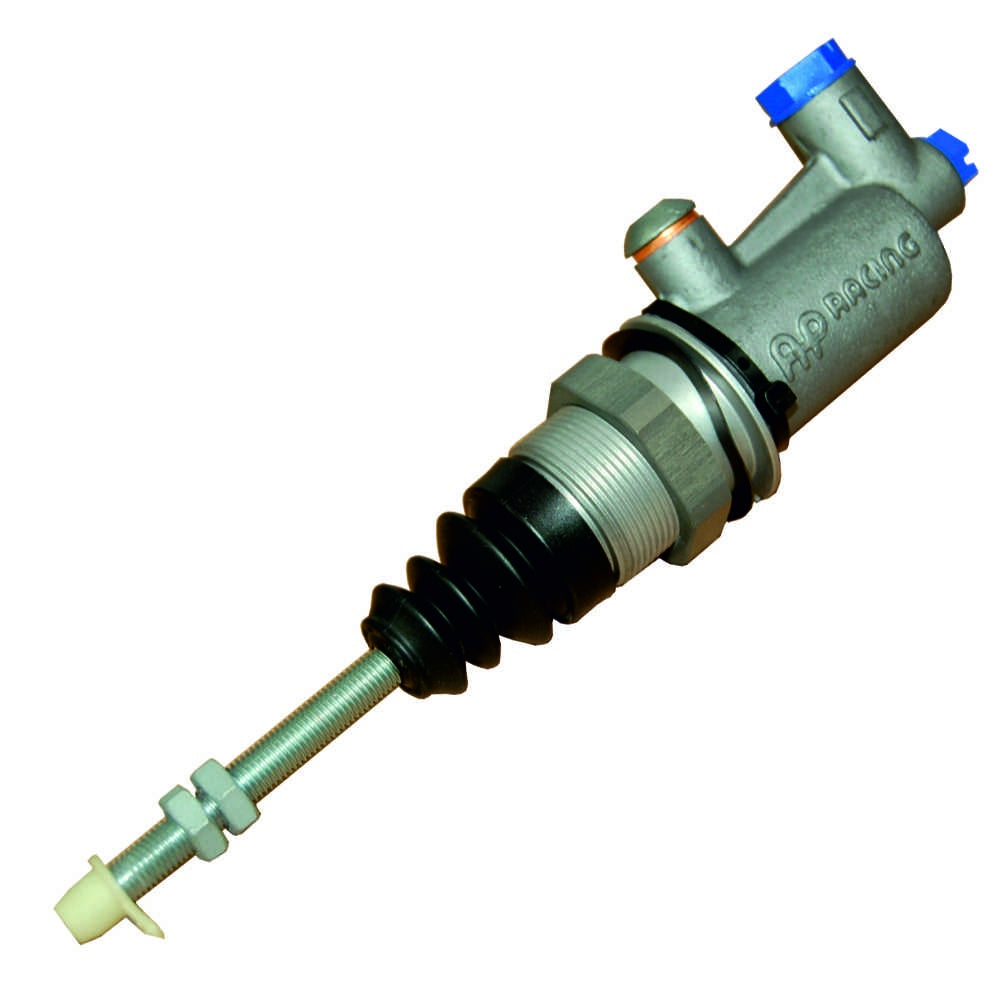

AP Racing CP4400 Bulkhead Mounted Master Cylinder
Bulkhead mounted single circuit master cylinder for motorsport pedal box and bulkhead installations.
SPECIFICATION
Centre-lock bulkhead mounting
Compact master cylinder body
Short travel to cut-off
Available in multiple bore sizes
Available with PRM or PRT push rod thread options and different push rod lengths
Choose the bore size and push rod configuration required for the installation.
Select the required variant for the pedal box and hydraulic system.
INSTALLATION AND INCLUDED PARTS

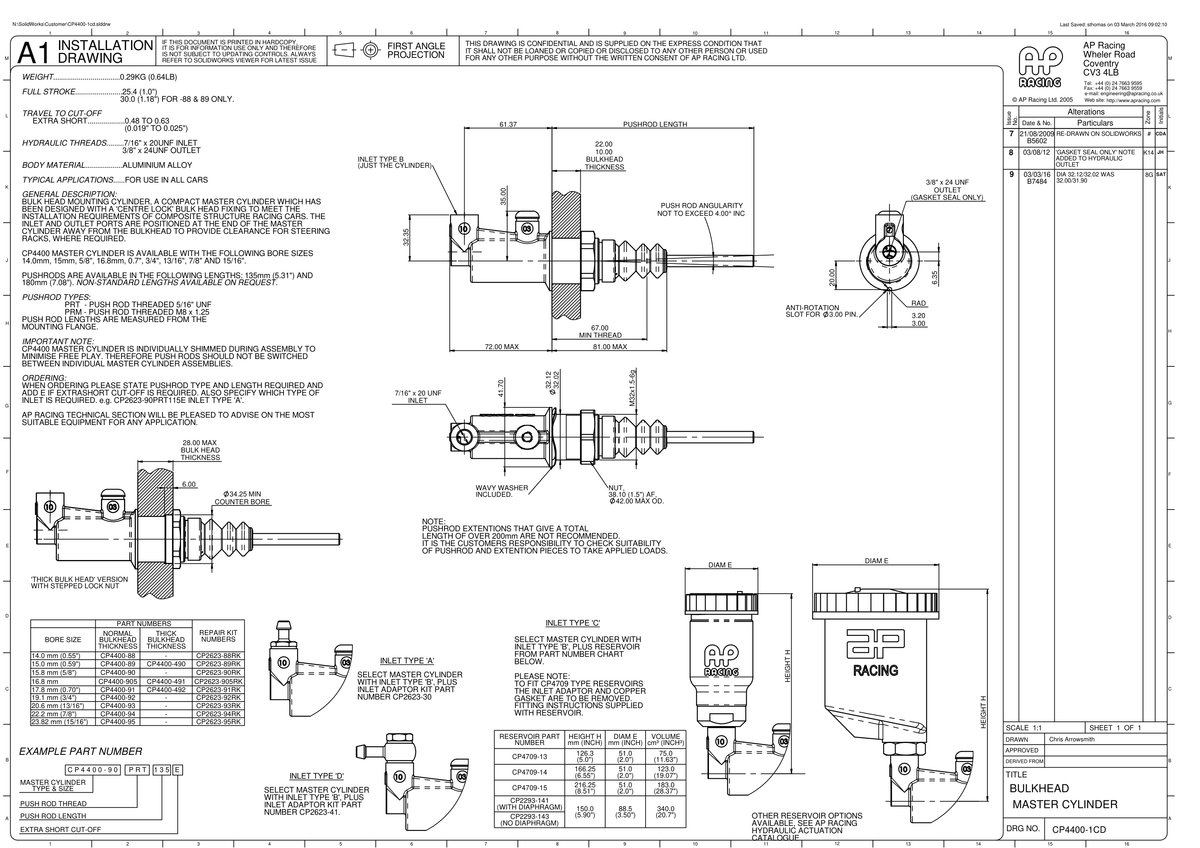

The centre-lock mounting nut and wavy washer are included. Alternative inlet adapters and reservoirs are separate options. Hydraulic ports are 7/16 in x 20 UNF inlet and 3/8 in x 24 UNF outlet; the outlet uses a gasket seal. PRM rods use M8 x 1.25 threads and PRT rods use 5/16 in UNF. The listed E-suffix versions have extra-short cut-off. The drawing specifies 30 mm stroke for 14 and 15 mm bores and 25.4 mm for the remaining sizes. Check bulkhead thickness and mounting dimensions in the drawing.

AP Racing CP4400 Bulkhead Mounted Master Cylinder
14 mm / PRM - M8x1.25 / 135mm
