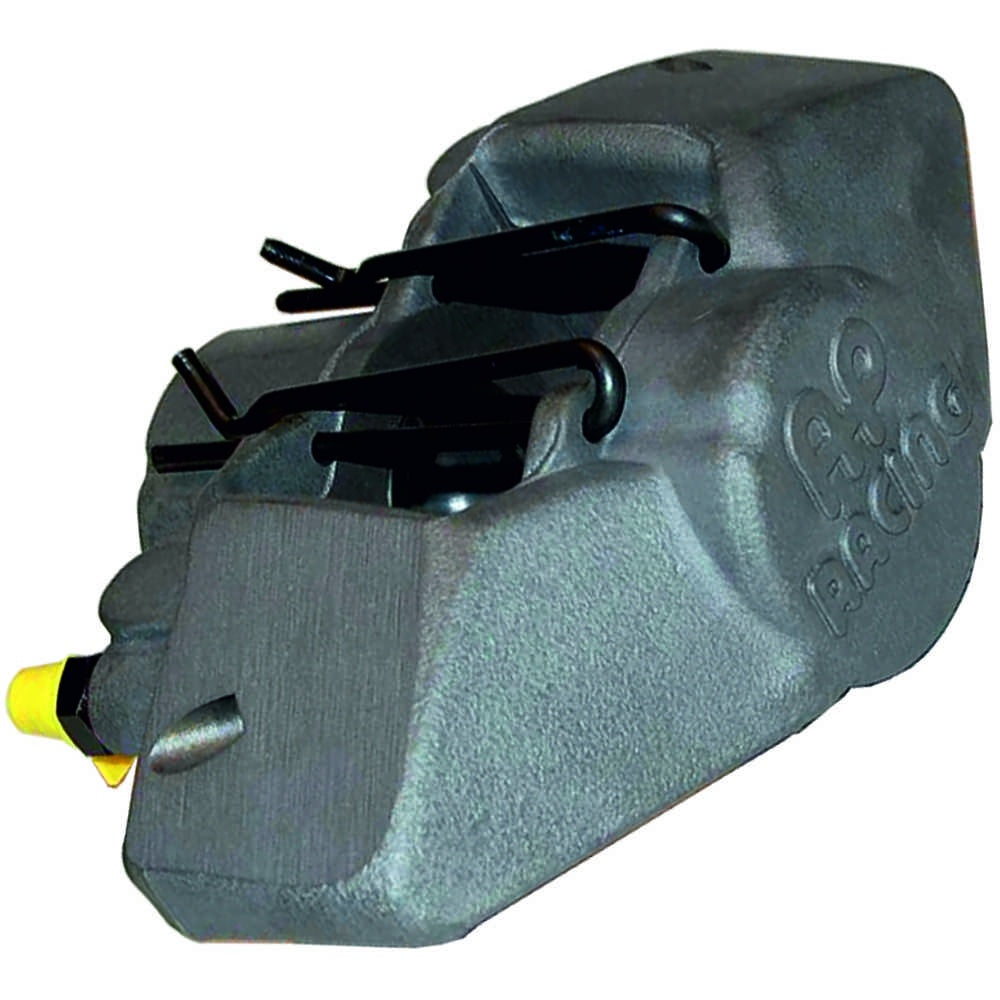

AP Racing 2 Piston Brake Caliper - CP2577
AP Racing 2-piston brake caliper.
KEY SPECIFICATIONS
| Piston count | 2 piston |
|---|---|
| Piston sizes | Ø44.5 mm ×2 |
| Piston area | 31.04 cm² |
| Disc diameter | Ø267 mm |
| Disc thickness | 9.7 mm |
| Weight without pads | 1.1 kg |
| Mounting | Lug mount; 89 mm centres; offset is specific to the selected part number (see below) |
| Pad family | CP2399D43 |
| Seal repair kit | CP4518-L |
Confirm disc, pad, mounting, hydraulic and handing compatibility for your application before ordering.
Part-specific mounting and pad retention
| Part number | Mounting offset | Pad retainer |
|---|---|---|
| CP2577-3E0 | 24.6 mm | CP2213-17 R-clip |
| CP2577-14E0 | 20.6 mm | 3658-518 split pin |
These two configurations have different mounting offsets and pad retention. CP2577-3E0HB is the version supplied with a handbrake mechanism, as listed by Questmead. The two-row mounting table above does not establish the exact HB mounting or disc-clearance specification; confirm the HB configuration for your installation before ordering.
AP Racing CP2577 installation drawing. The drawing specifies 254.0–266.7 mm solid discs of 9.7 mm thickness; the family webpage uses a nominal 267 mm diameter. Confirm the disc and mounting arrangement for the selected part number.

AP Racing 2 Piston Brake Caliper - CP2577
CP2577-14E0
