Xtreme Clutch Stage 2R Ceramic Kit Audi S1 (8X) / SEAT Ibiza Cupra / Volkswagen Polo GTI KVW24694-1R

Xtreme Clutch Stage 2R kit with a sprung ceramic disc and extra-heavy-duty pressure plate for motorsport use. Includes a single-mass flywheel and concentric slave cylinder (CSC), replacing the original dual-mass flywheel arrangement.

FITMENT
Audi S1 quattro (8X) March 2014–October 2018 — 2.0 TFSI, CWZA.
SEAT Ibiza Cupra (fourth generation) November 2015–December 2016 — 1.8 TSI, DAJA.
Volkswagen Polo GTI (fifth generation) November 2014–October 2017 — 1.8 TSI, DAJB / DAJA.

For compatible manual-transmission applications. Match the engine, gearbox, input-shaft spline and flywheel arrangement before ordering. This is not a DSG clutch assembly.

SPECIFICATIONS
Part number: KVW24694-1R
Stage: 2R
Friction material: ceramic
Disc design: single plate with sprung hub
Disc diameter: 240 mm
Input spline: 23 teeth, 24.7 mm diameter
Supplier-rated torque capacity: 910 Nm
Flywheel step: −9.53 mm
Flywheel conversion: dual-mass to single-mass

PURCHASED PARTS PACKAGE

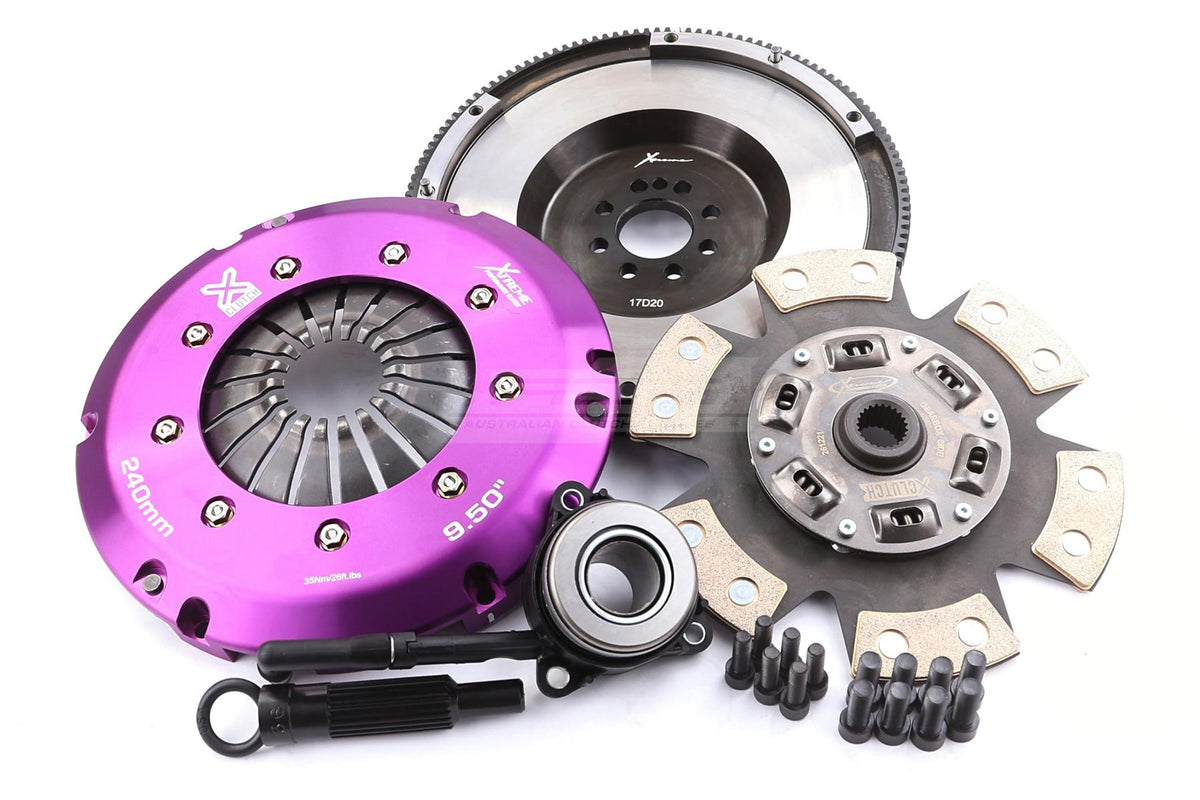

Pressure plate and friction disc, single-mass flywheel and concentric slave cylinder. Check vehicle-specific fitting hardware and service parts before installation.

INSTALLATION AND USE
Follow the supplied instructions for fastening, alignment, hydraulic bleeding and bedding in. A ceramic competition clutch can engage more abruptly than a road-oriented organic clutch. A single-mass conversion can change transmission noise and vibration. The supplier's torque rating does not establish a safe limit for the gearbox or other drivetrain components.
