Xtreme Clutch Stage 1 Organic Clutch and Single-Mass Flywheel Kit Toyota GR Yaris / GR Corolla (GXPA16 / GZEA14) KTY24646-1A

Xtreme Clutch single-plate sprung organic clutch kit. Select the kit for the exact engine, manual transmission and flywheel arrangement.

FITMENT
Toyota GR Corolla (GZEA14) January 2023 onwards — 1.6 G16E-GTS, manual.
Toyota GR Yaris (GXPA16) February 2020 onwards — 1.6 G16E-GTS, manual.
Manual-transmission applications only. Match the input-shaft spline and flywheel before ordering.

SPECIFICATIONS
Part number: KTY24646-1A
Friction material / construction: sprung organic
Disc diameter: 240 mm
Input spline: 23 teeth, 26 mm diameter
Supplier-rated torque capacity: 600 Nm
Flywheel step: -9.53 mm

PURCHASED PARTS PACKAGE

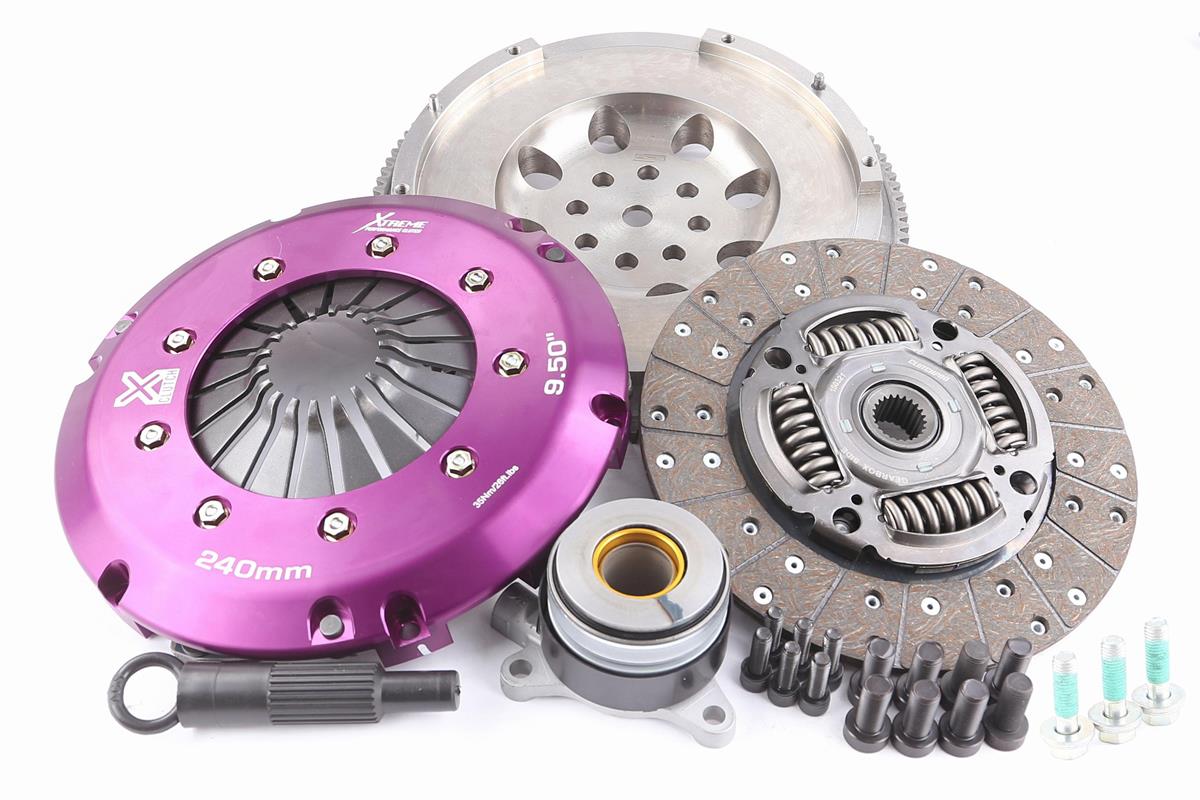

Pressure plate, sprung organic friction disc, single-mass flywheel, concentric slave cylinder (CSC) and supplied installation components.

INSTALLATION AND USE
Converts the original dual-mass flywheel to a single-mass flywheel. The supplier warns of a significant increase in noise and engine harmonics. Follow the supplied fitting and bedding-in instructions. A clutch torque rating is not a safe torque limit for the gearbox or other drivetrain components.
