Xtreme Clutch Stage 1 Organic Clutch and Single-Mass Flywheel Kit Toyota Hilux Surf (LN130) KTY24511-1A

Xtreme Clutch single-plate sprung organic clutch kit. Select the kit for the exact engine, manual transmission and flywheel arrangement.

FITMENT
Toyota Hilux Surf 2.4 TD 4WD (LN130) April 1989–November 1998 — 2L-T / 2L-TE.
Toyota Hilux Surf 2.4 TDi 4WD (LN130) August 1990–July 1993 — 2L-TE.
Manual-transmission applications only. Match the input-shaft spline and flywheel before ordering.

SPECIFICATIONS
Part number: KTY24511-1A
Friction material / construction: sprung organic
Disc diameter: 236 mm
Input spline: 21 teeth, 29.8 mm diameter
Supplier-rated torque capacity: 410 Nm
Flywheel step: +0.5 mm

PURCHASED PARTS PACKAGE

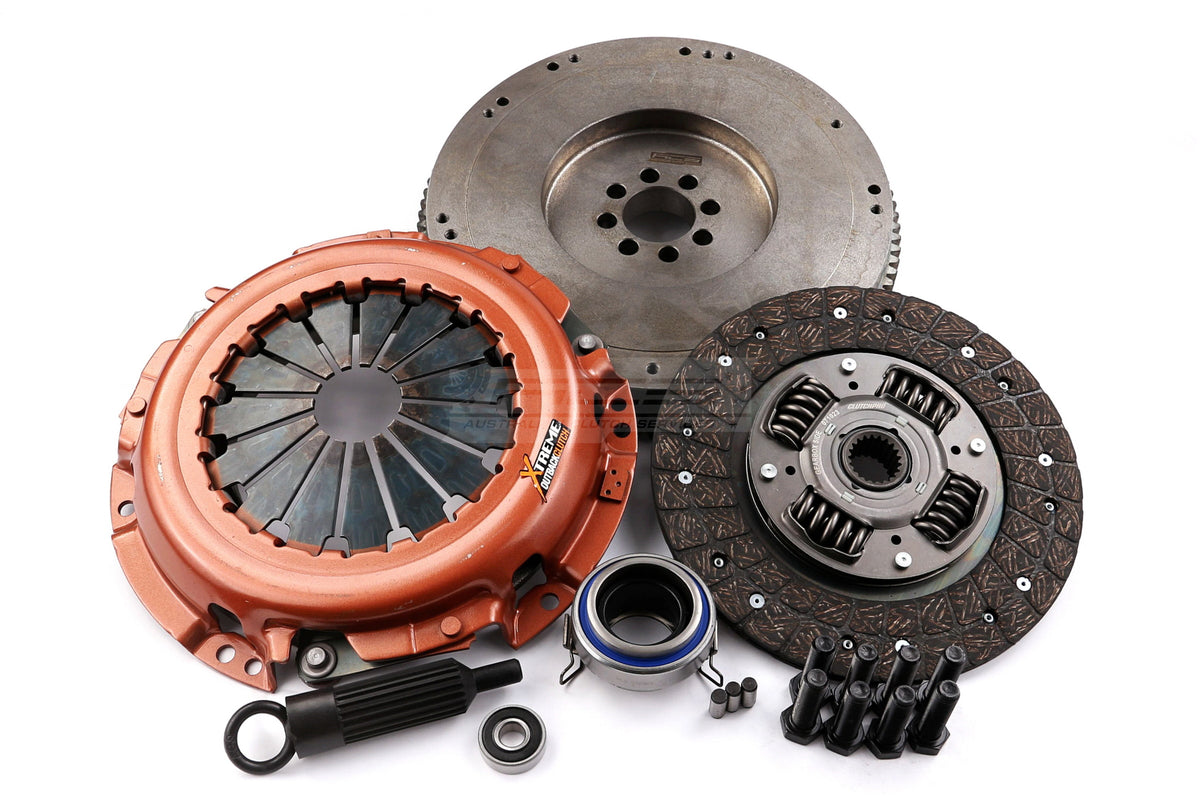

Pressure plate, sprung organic friction disc, single-mass flywheel, release bearing and supplied installation components.

INSTALLATION AND USE
Converts a dual-mass flywheel application to a single-mass flywheel. Gearbox rattle and transmitted engine harmonics can increase. Supplier clamp load: 790 kg, described as 70% above standard. Follow the supplied fitting and bedding-in instructions. A clutch torque rating is not a safe torque limit for the gearbox or other drivetrain components.
