Xtreme Clutch Stage 1 Organic Clutch Kit Toyota GR Yaris / GR Corolla (GXPA16 / GZEA14) KTY24047-1G

Xtreme Clutch single-plate rigid organic clutch kit. Select the kit for the exact engine, manual transmission and flywheel arrangement.

FITMENT
Toyota GR Corolla (GZEA14) January 2023 onwards — 1.6 G16E-GTS, manual.
Toyota GR Yaris (GXPA16) February 2020 onwards — 1.6 G16E-GTS, manual.
Manual-transmission applications only. Match the input-shaft spline and flywheel before ordering.

SPECIFICATIONS
Part number: KTY24047-1G
Friction material / construction: rigid organic
Disc diameter: 240 mm
Input spline: 23 teeth, 26 mm diameter
Supplier-rated torque capacity: 560 Nm
Flywheel step: -9.53 mm

PURCHASED PARTS PACKAGE

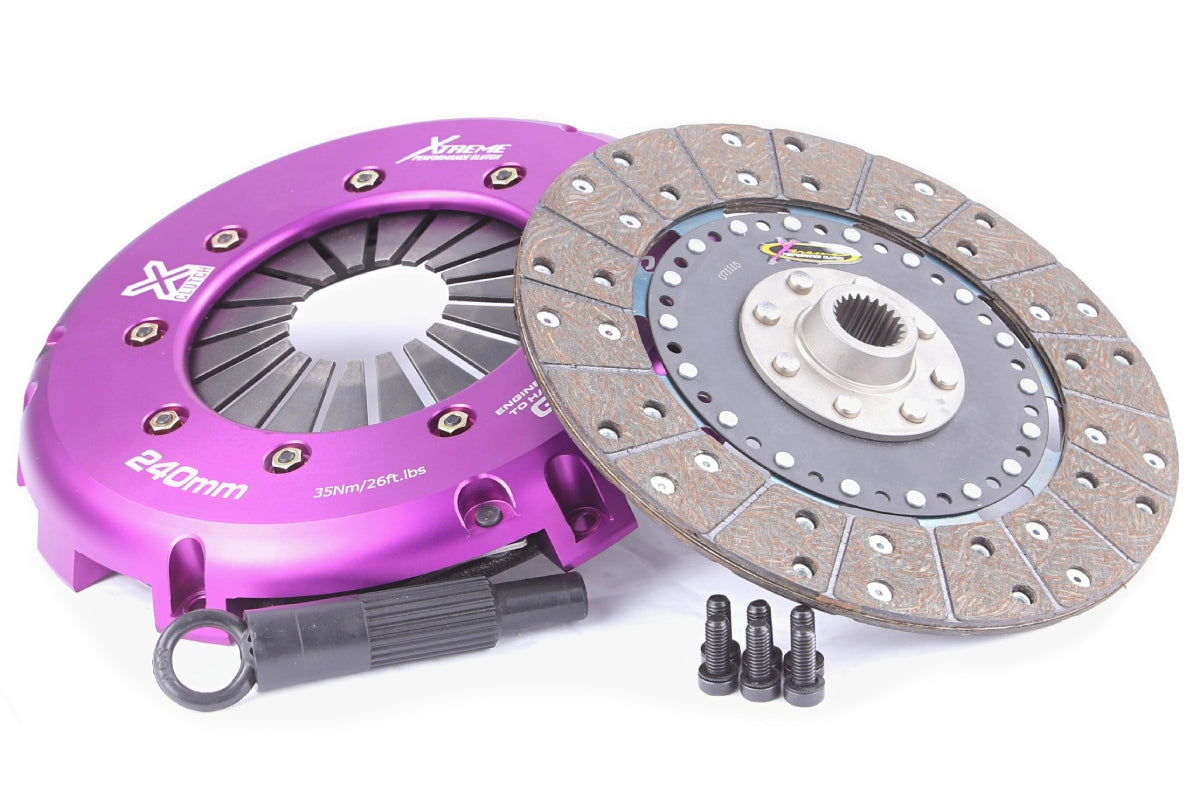

Pressure plate, organic friction disc and supplied installation components. Flywheel and CSC not included.

INSTALLATION AND USE
Designed for the original dual-mass flywheel. Do not fit to a single-mass conversion flywheel. Follow the supplied fitting and bedding-in instructions. A clutch torque rating is not a safe torque limit for the gearbox or other drivetrain components.
