Xtreme Clutch Stage 1 Sprung Organic Clutch Kit Toyota Caldina / Camry / Carina / Celica / MR2 (ST215W / VCV10 / VCV10R / MCV30 / MCV36 / ST202 / ST205 / ST182 / ST183 / ST185 / SW20) KTY24006-1A

Xtreme Clutch single-plate sprung organic clutch kit for the Toyota Caldina / Camry / Carina / Celica / MR2. Designed for street-performance applications.

FITMENT
Toyota Caldina (ST215W) February 2000–September 2001 — 2.0 Turbo 4WD, 3S-GTE 1998, 192 kW.
Toyota Caldina (ST215W) October 1997–September 2001 — 2.0 4WD, 3S-GE 1998, 140 kW.
Toyota Camry (VCV10) June 1995–September 1996 — 3.0, 3VZ-FE 2959, 140 kW.
Toyota Camry (VCV10R) June 1991–August 1996 — 3.0, 3VZ-FE 2959, 138 kW.
Toyota Camry (MCV30 / MCV36) September 2002–November 2006 — 3.0, 1MZ-FE 2995, 141 kW.
Toyota Carina (ST202 / ST205) January 1993–December 1998 — 2.0, 3S-GE 1998, 125 kW.
Toyota Carina (ST205) January 1993–December 1998 — 2.0, 3S-GE 1998, 132 kW.
Toyota Celica (ST182 / ST183) October 1989–September 1993 — 2.0, 3S-GE 1998, 123 kW.
Toyota Celica (ST182 / ST183) September 1989–January 1994 — 2.0, 3S-GE 1998, 115 kW.
Toyota Celica (ST182) September 1990–October 1993 — 2.0, 3S-GE 1998, 118 kW.
Toyota Celica (ST185) October 1989–November 1993 — 2.0 Turbo 4WD, 3S-GTE 1998, 150 kW.
Toyota Celica (ST185) October 1989–January 1994 — 2.0 Turbo 4WD, 3S-GTE 1998, 153 kW.
Toyota Celica (ST185) October 1989–September 1993 — 2.0 Turbo 4WD, 3S-GTE 1998, 165 kW.
Toyota Celica (ST205) February 1994–November 1999 — 2.0 Turbo 4WD, 3S-GTE 1998, 178 kW.
Toyota Celica (ST205) February 1994–August 1999 — GT-FOUR 2.0 4WD, 3S-GTE 1998, 188 kW.
Toyota Celica (ST182) October 1989–November 1993 — 2.0 GTi, 3S-GE 1998, 115 kW.
Toyota Celica (ST183) October 1990–October 1993 — 2.0 GTi, 3S-GE 1998, 118 kW.
Toyota MR2 (SW20) December 1989–July 1999 — 2.0 Turbo, 3S-GTE 1998, 165 kW.
Toyota MR2 (SW20) December 1989–July 1999 — 2.0 Turbo, 3S-GTE 1998, 167 kW.
Toyota MR2 (SW20) December 1989–July 1999 — 2.0 Turbo, 3S-GTE 1998, 180 kW.
Match the engine, chassis, gearbox input spline, flywheel and release arrangement before ordering. Automatic-transmission applications are not covered by this listing.

SPECIFICATIONS
Part number: KTY24006-1A
Stage: 1
Construction: single plate
Friction material: sprung organic
Disc diameter: 236 mm
Input spline: 21 teeth, 29 mm diameter
Flywheel step: +0.5 mm
Supplier-rated torque capacity: 420 Nm
Clamp load: 820 kg (30% inc.)

PURCHASED PARTS PACKAGE

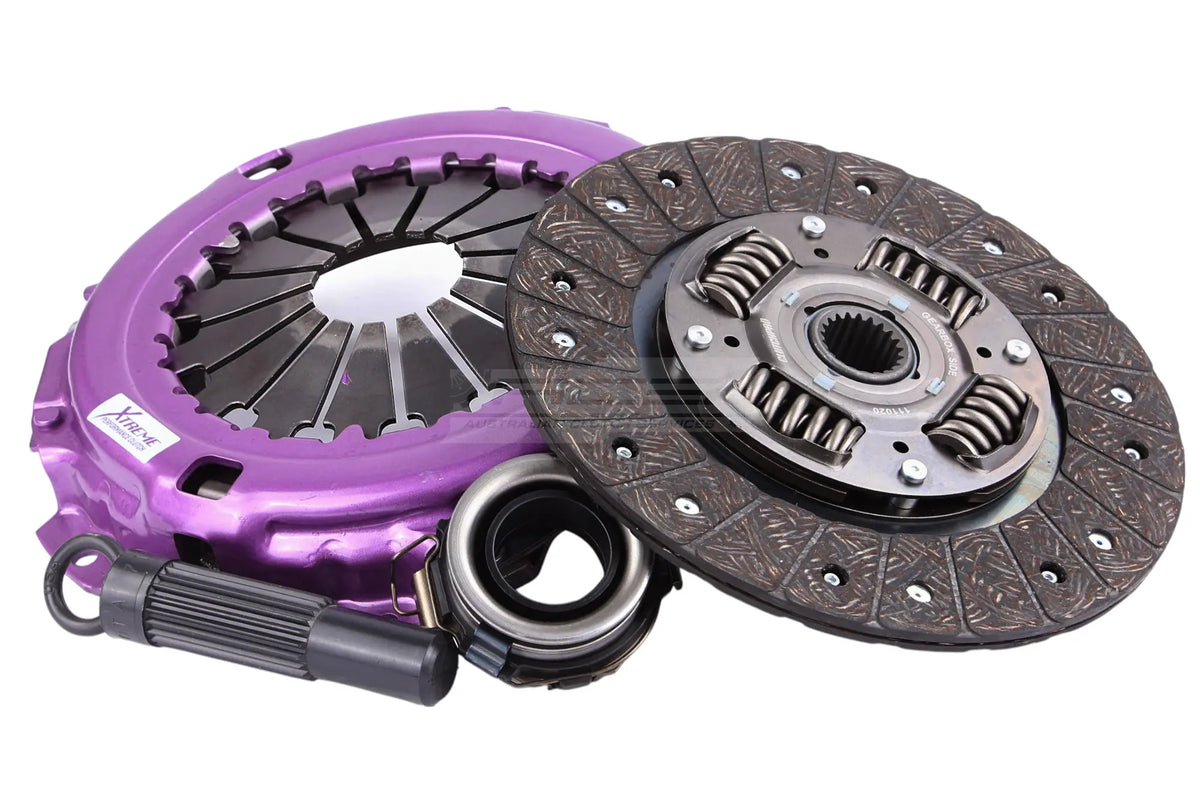

Pressure plate, friction disc and fitting components shown in the supplier photograph. Flywheel not included.

INSTALLATION AND USE
Check the flywheel condition, profile and release arrangement before installation. Follow the supplied fitting and bedding-in instructions. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
