Xtreme Clutch single-plate sprung ceramic clutch kit for the Toyota MR2. Designed for track applications requiring increased heat and torque capacity.
FITMENT Toyota MR2 (AW11) August 1986–December 1989 — 1.6 Supercharged, 4A-GZE 1587, 107 kW. Match the engine, chassis, gearbox input spline, flywheel and release arrangement before ordering. Automatic-transmission applications are not covered by this listing.
SPECIFICATIONS Part number: KTY23016-1B Stage: 2 Construction: single plate Friction material: sprung ceramic Disc diameter: 225 mm Input spline: 21 teeth, 29 mm diameter Flywheel step: -18.0 mm (0.708 inch) Supplier-rated torque capacity: 430 Nm Clamp load: 580 kg (20% inc.)

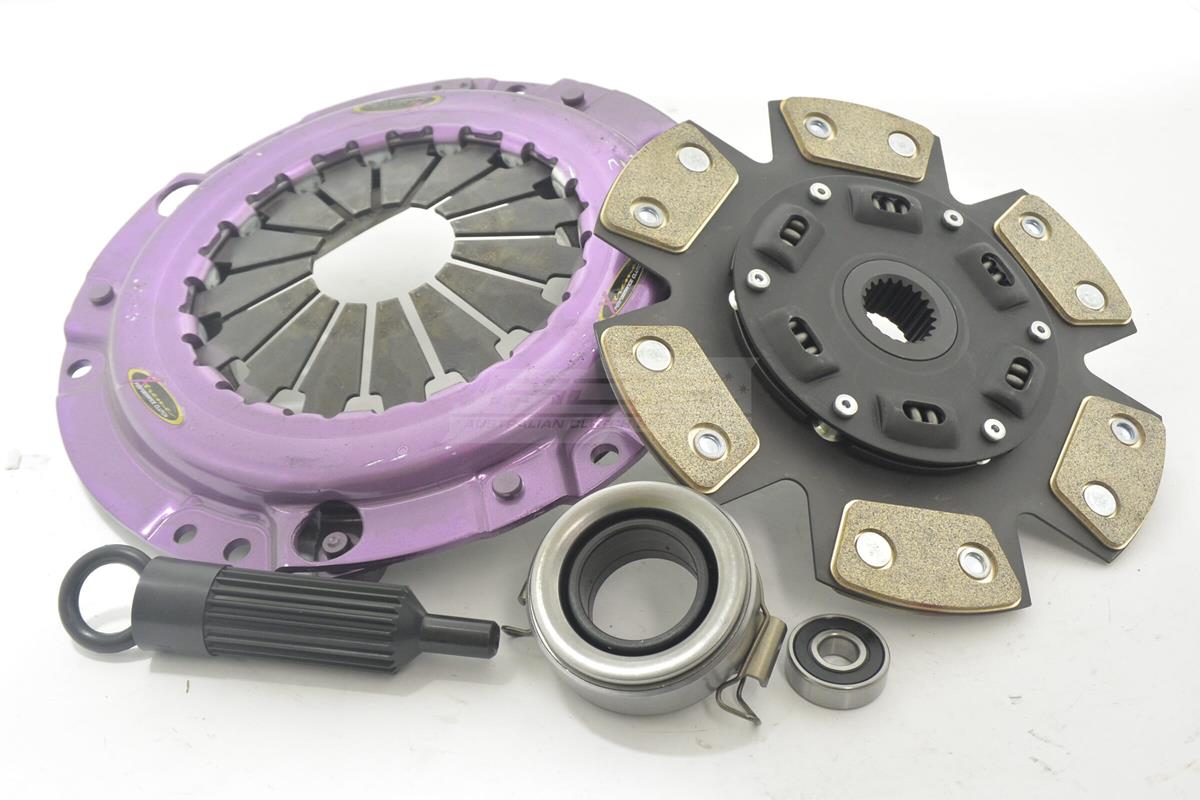

PURCHASED PARTS PACKAGE Pressure plate, friction disc and fitting components shown in the supplier photograph. Flywheel not included.
INSTALLATION AND USE Check the flywheel condition, profile and release arrangement before installation. Follow the supplied fitting and bedding-in instructions. A ceramic friction disc can change engagement characteristics compared with a standard organic clutch. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
