Xtreme Clutch single-plate sprung organic clutch kit for the Toyota MR2. Designed for street-performance applications.
FITMENT Toyota MR2 (AW11) August 1986–December 1989 — 1.6 Supercharged, 4A-GZE 1587, 107 kW. Match the engine, chassis, gearbox input spline, flywheel and release arrangement before ordering. Automatic-transmission applications are not covered by this listing.
SPECIFICATIONS Part number: KTY23016-1A Stage: 1 Construction: single plate Friction material: sprung organic Disc diameter: 225 mm Input spline: 21 teeth, 29 mm diameter Flywheel step: -18.0 mm (0.708 inch) Supplier-rated torque capacity: 280 Nm Clamp load: 580 kg (20% inc.)

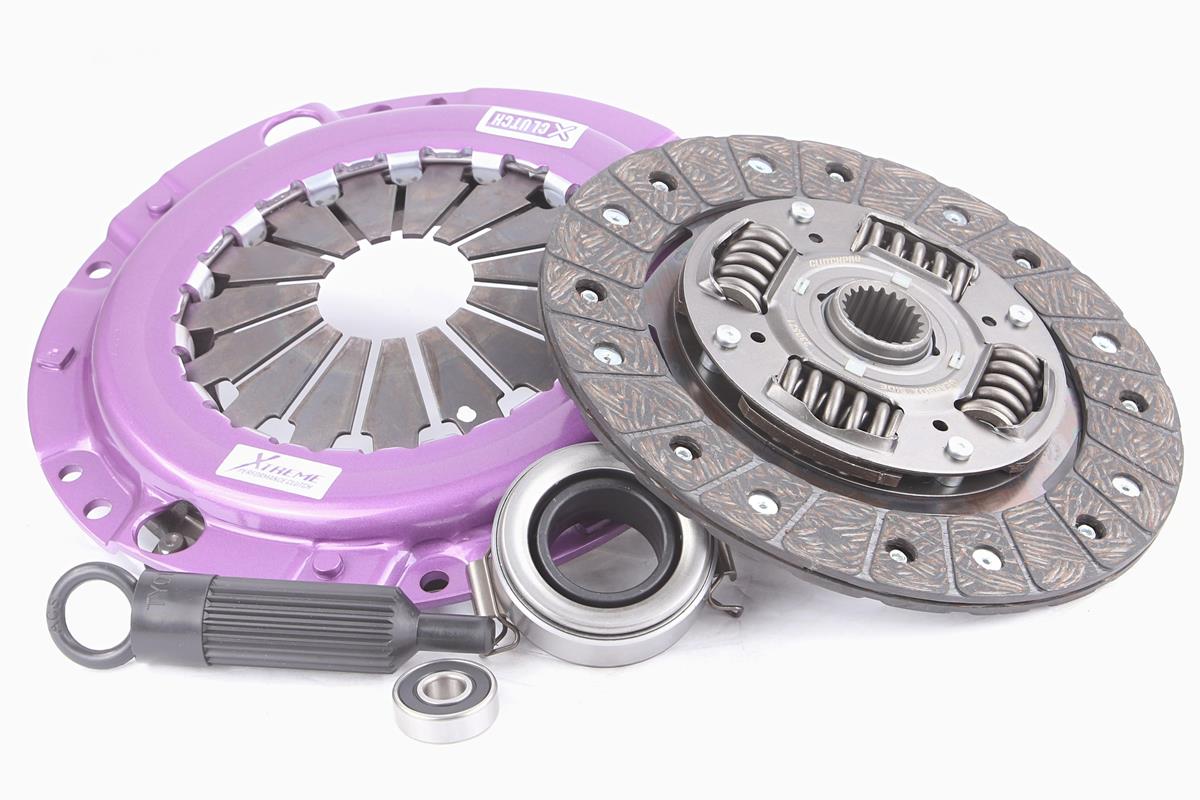

PURCHASED PARTS PACKAGE Pressure plate, friction disc and fitting components shown in the supplier photograph. Flywheel not included.
INSTALLATION AND USE Check the flywheel condition, profile and release arrangement before installation. Follow the supplied fitting and bedding-in instructions. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
