Xtreme Clutch Stage 2 sprung ceramic clutch kit for the listed Toyota MR2 1.8 (ZZW30) applications. Intended for motorsport applications requiring increased torque and heat capacity.
FITMENT Toyota MR2 Gen. III / 1.8 16V VT-i (ZZW30), October 1999–June 2007; engine 1ZZ-FE 1794 cc, 103 kW Manual-transmission applications only.
SPECIFICATIONS Part number: KTY22018-1B Stage: 2 Construction: single plate Friction disc: sprung ceramic Disc diameter: 215 mm Input spline: 21 teeth, 23.8 mm diameter Supplier-rated torque capacity: 390 Nm

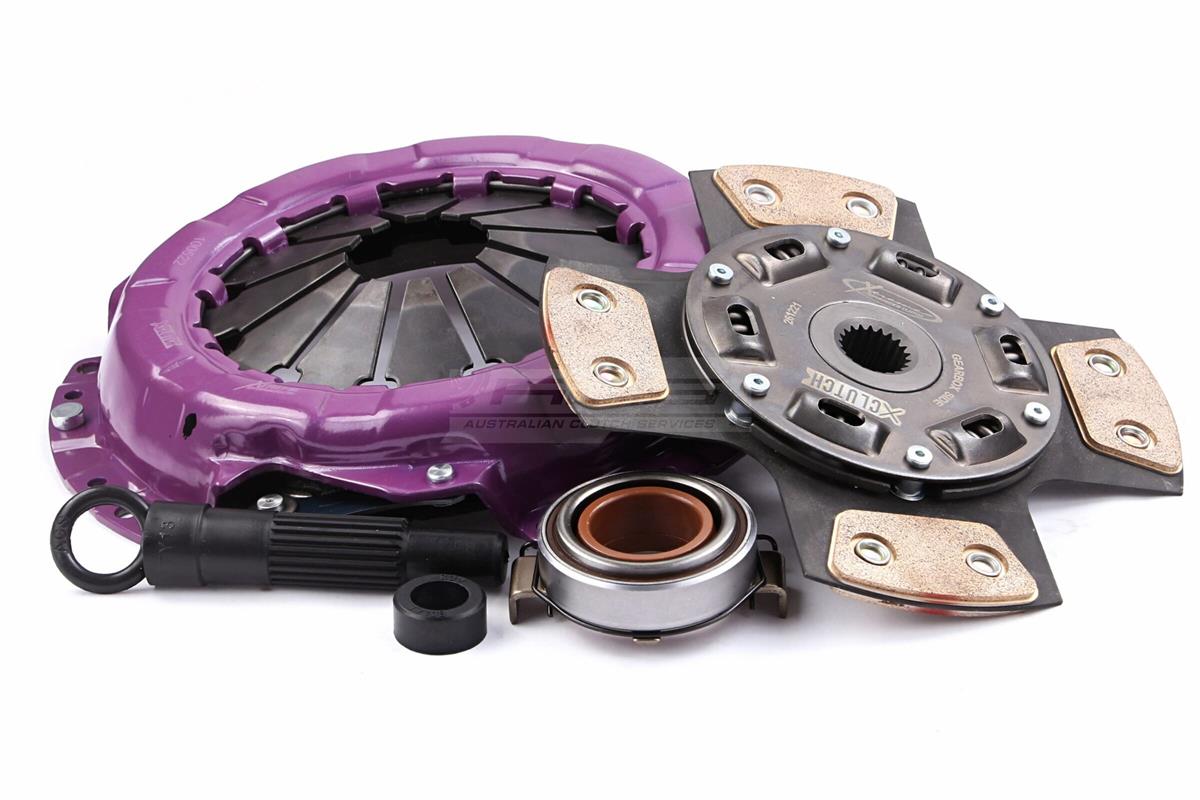

PURCHASED PARTS PACKAGE Heavy-duty pressure plate, sprung ceramic friction disc and the fitting components shown in the supplier photograph. Flywheel is not included.
INSTALLATION AND USE Match the engine code, gearbox input spline, flywheel and release system before ordering. Follow the supplied installation and bedding-in instructions. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
