Xtreme Clutch single-plate sprung organic clutch kit for the Suzuki Liana. Designed for street-performance applications.
FITMENT Suzuki Liana (RH416) July 2001–December 2007 — 1.6 i, M16A 1586. Suzuki Liana (RH416) April 2002–December 2007 — 1.6 i, M16A 1586. Suzuki Liana (RH418) October 2001–December 2007 — 1.8 i, M18A 1796. Match the engine, chassis, gearbox input spline, flywheel and release arrangement before ordering. Automatic-transmission applications are not covered by this listing.
SPECIFICATIONS Part number: KSZ20004-1A Stage: 1 Construction: single plate Friction material: sprung organic Disc diameter: 200 mm Input spline: 20 teeth, 22.4 mm diameter Flywheel step: +0.12 mm (0.005 inch) Supplier-rated torque capacity: 200 Nm Clamp load: 520 kg (40% inc.)

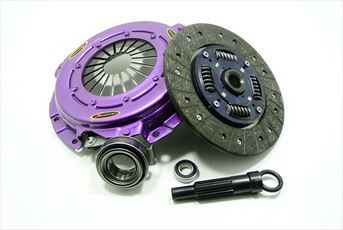

PURCHASED PARTS PACKAGE Pressure plate, friction disc, with fitting components shown in the supplier photograph.
INSTALLATION AND USE Check the flywheel condition, profile and release arrangement before installation. Follow the supplied fitting and bedding-in instructions. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
