Xtreme Clutch single-plate sprung ceramic clutch kit for the Suzuki Swift. Designed for track applications requiring increased heat and torque capacity.
FITMENT Suzuki Swift (SF416 / AH14) November 1989–December 1991 — 1.6, G16B 1590, 70 kW. Suzuki Swift (SF416 / AJ14) November 1989–December 1991 — 1.6 4WD, G16B 1590, 70 kW. Suzuki Swift (SF416 / AH14 / SF406) January 1990–May 2001 — 1.6 i, G16B 1590, 68 kW. Suzuki Swift (SF416 / AJ14) January 1990–May 2001 — 1.6 i 4WD, G16B 1590, 68 kW. Match the engine, chassis, gearbox input spline, flywheel and release arrangement before ordering. Automatic-transmission applications are not covered by this listing.
SPECIFICATIONS Part number: KSZ20002-1B Stage: 2 Construction: single plate Friction material: sprung ceramic Disc diameter: 200 mm Input spline: 20 teeth, 22.8 mm diameter Flywheel step: +0.5 mm Supplier-rated torque capacity: 320 Nm Clamp load: 400 kg (20% inc.)

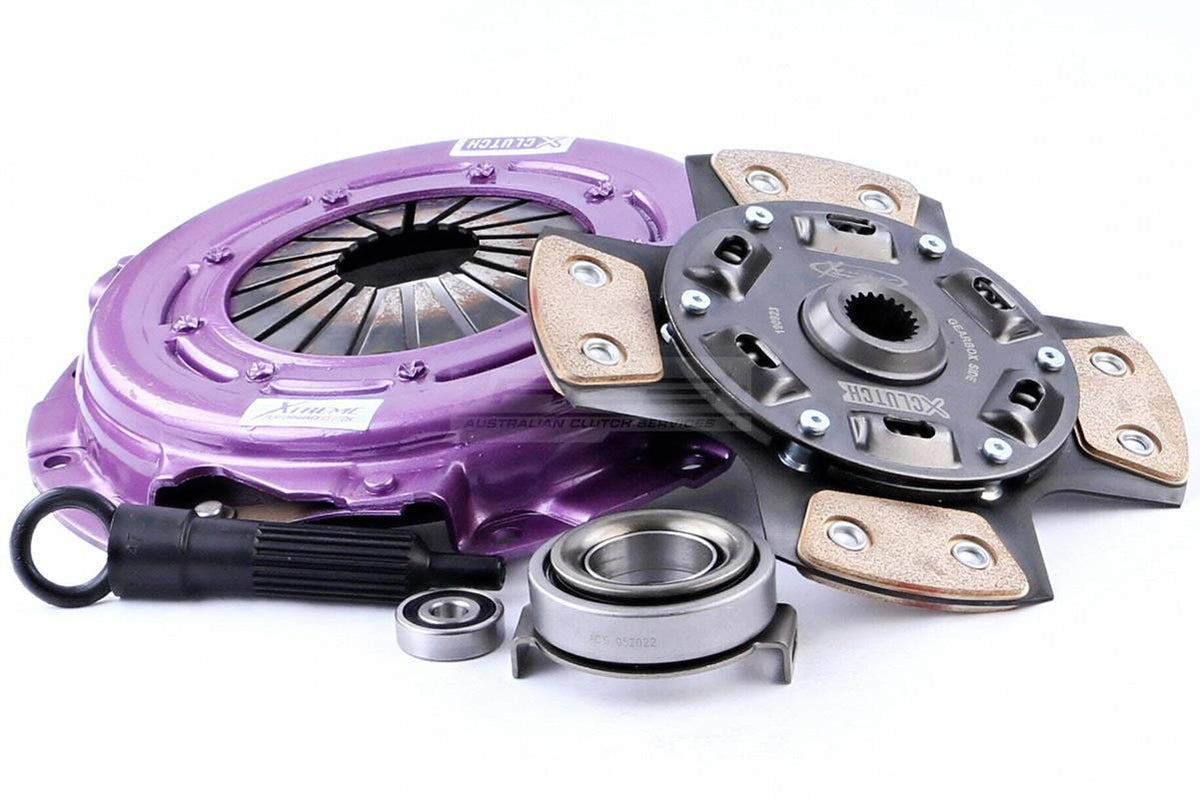

PURCHASED PARTS PACKAGE Pressure plate, friction disc and fitting components shown in the supplier photograph.
INSTALLATION AND USE Check the flywheel condition, profile and release arrangement before installation. Follow the supplied fitting and bedding-in instructions. A ceramic friction disc can change engagement characteristics compared with a standard organic clutch. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
