Xtreme Clutch single-plate sprung organic clutch kit for the Suzuki Ignis / Swift. Designed for street-performance applications.
FITMENT Suzuki Ignis (HV81 / RG415) August 2003–December 2005 — 1.5, M15A 1490, 83 kW. Suzuki Ignis (RG415) December 2003–December 2005 — 1.5 Sport, M15A 1490, 80 kW. Suzuki Ignis (RM415) September 2003–2005 — 1.5, M15A 1490, 73 kW. Suzuki Ignis (RM415) September 2003–2005 — 1.5 4x4, M15A 1490, 73 kW. Suzuki Swift (RS 413) February 2005–2011 — 1.3, M13A 1328, 68 kW. Suzuki Swift (RS 415) February 2005–2011 — 1.5, M15A 1490, 75 kW. Match the engine, chassis, gearbox input spline, flywheel and release arrangement before ordering. Automatic-transmission applications are not covered by this listing.
SPECIFICATIONS Part number: KSZ19009-1A Stage: 1 Construction: single plate Friction material: sprung organic Disc diameter: 190 mm Input spline: 18 teeth, 19.3 mm diameter Flywheel step: +0.5 mm Supplier-rated torque capacity: 240 Nm

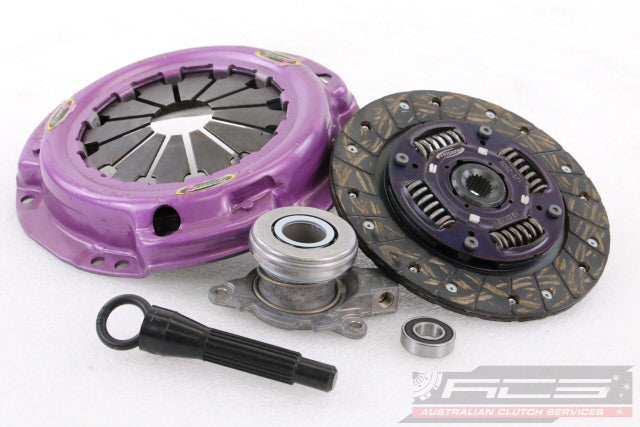

PURCHASED PARTS PACKAGE Pressure plate, friction disc and fitting components shown in the supplier photograph.
INSTALLATION AND USE Check the flywheel condition, profile and release arrangement before installation. Follow the supplied fitting and bedding-in instructions. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
