Xtreme Clutch single-plate sprung organic clutch kit for the Suzuki SJ410 / Sierra. Designed for street-performance applications.
FITMENT Suzuki SJ410 (SJ410) September 1981–July 1991 — 1.0, F10A 970, 33 kW. Suzuki Sierra (SJ410) September 1981–December 1988 — 1.0, F10A 970, 33 kW. Match the engine, chassis, gearbox input spline, flywheel and release arrangement before ordering. Automatic-transmission applications are not covered by this listing.
SPECIFICATIONS Part number: KSZ18003-1A Stage: 1 Construction: single plate Friction material: sprung organic Disc diameter: 180 mm Input spline: 18 teeth, 20.3 mm diameter Flywheel step: +1 mm (0.04 inch) Supplier-rated torque capacity: 190 Nm Clamp load: 500 kg (60% inc.)

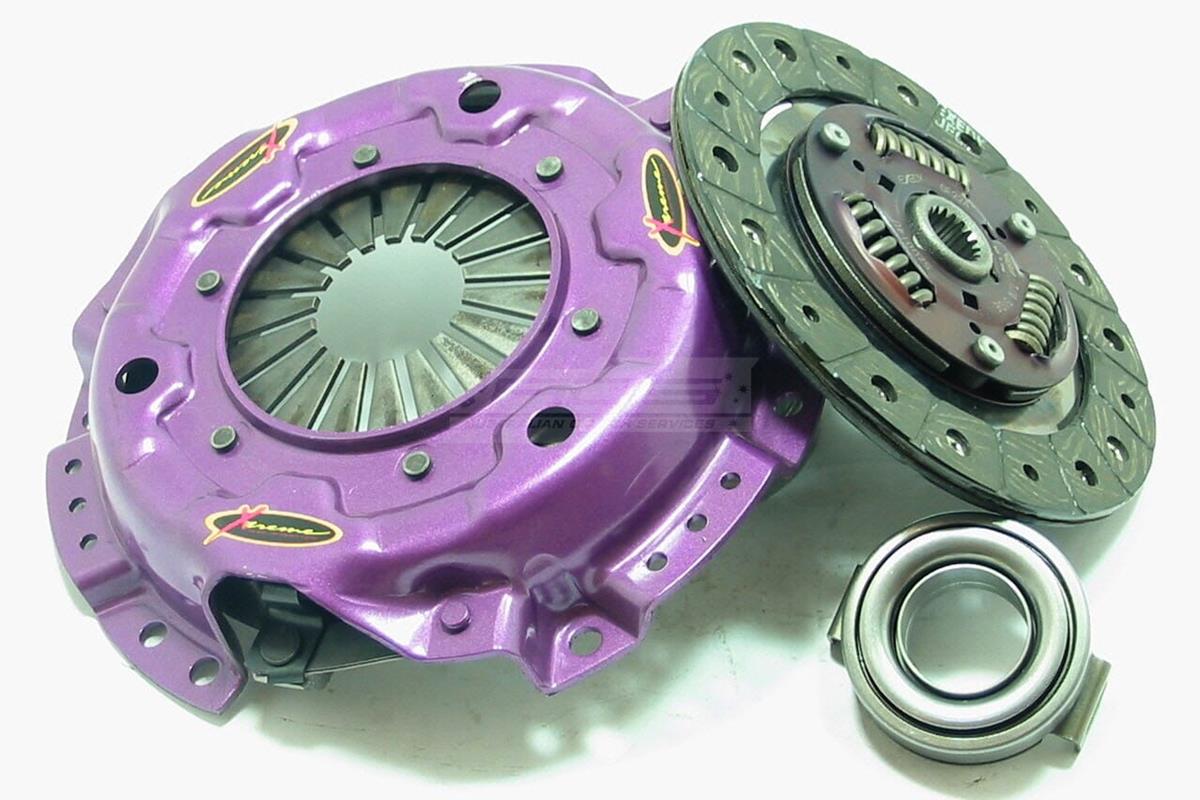

PURCHASED PARTS PACKAGE Pressure plate, friction disc and fitting components shown in the supplier photograph.
INSTALLATION AND USE Check the flywheel condition, profile and release arrangement before installation. Follow the supplied fitting and bedding-in instructions. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
