Xtreme Clutch single-plate sprung organic clutch kit for the Suzuki Swift. Designed for street-performance applications.
FITMENT Suzuki Swift (SA310 / AA41/43) October 1983–March 1989 — 1.0, G10A, G10 993, 37 kW. Suzuki Swift (SF310 / AA44) March 1989–May 2001 — 1.0, G10A, G10 993, 37 kW. Match the engine, chassis, gearbox input spline, flywheel and release arrangement before ordering. Automatic-transmission applications are not covered by this listing.
SPECIFICATIONS Part number: KSZ17001-1A Stage: 1 Construction: single plate Friction material: sprung organic Disc diameter: 170 mm Input spline: 18 teeth, 19.3 mm diameter Flywheel step: -2 mm (0.079 inch) Supplier-rated torque capacity: 120 Nm Clamp load: 380 kg (40% inc.)

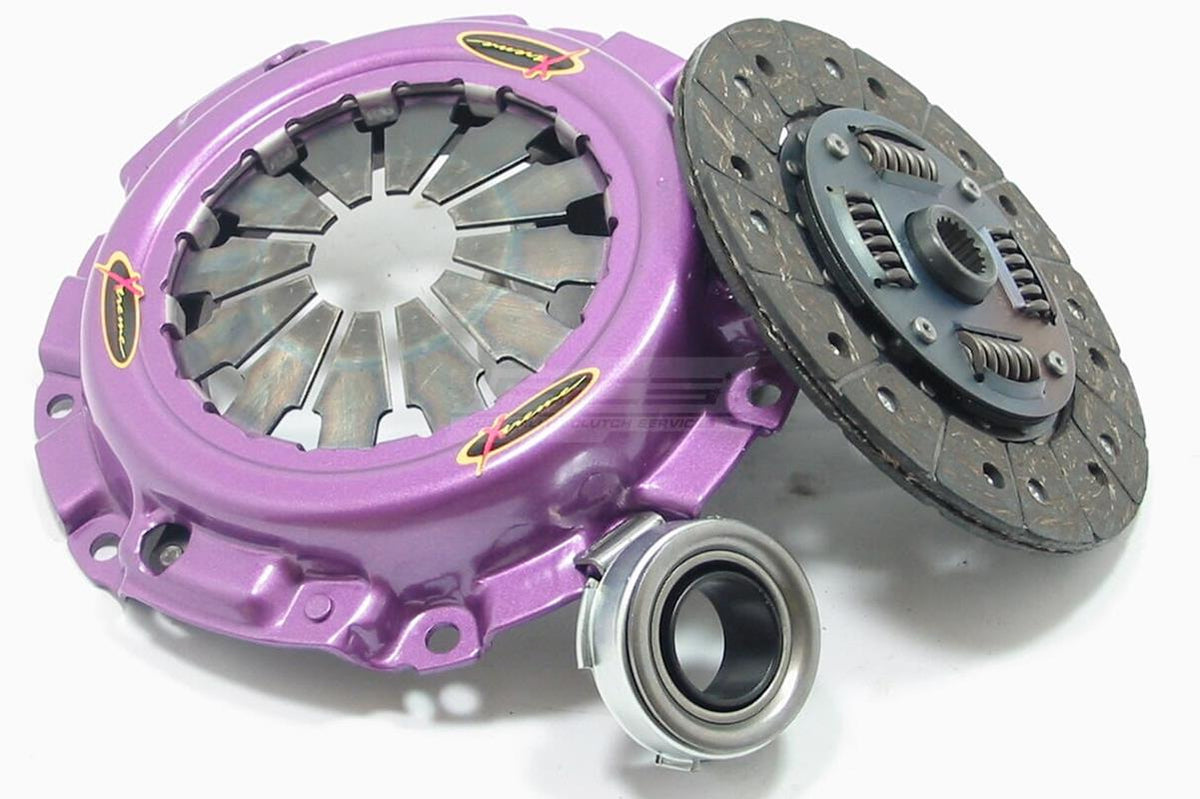

PURCHASED PARTS PACKAGE Pressure plate, friction disc and fitting components shown in the supplier photograph.
INSTALLATION AND USE Check the flywheel condition, profile and release arrangement before installation. Follow the supplied fitting and bedding-in instructions. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
