Xtreme Clutch sprung organic replacement clutch for an existing KSU24530 single-mass flywheel conversion.
FITMENT Subaru Legacy (Gen. IV) August 2005–March 2012 — 2.0 2WD, EJ20Y 1994, manual. Subaru Legacy (BL5) September 2003–November 2006 — 2.0 Turbo AWD, EJ20 (Turbo) 1994, manual. Subaru Legacy (BP5) September 2003–November 2006 — 2.0 Turbo AWD, EJ20 (Turbo) 1994, manual. Subaru Legacy (BP5) August 2004–August 2006 — 2.0 GT AWD, EJ20T 1994, manual. Subaru Legacy (BL5) August 2004–July 2006 — 2.0 GT Tuned By STI AWD, EJ20T 1994, manual. Subaru Legacy (BP5) January 2006–August 2006 — 2.0 GT AWD, EJ20T 1994, manual. Manual-transmission applications only. The supplier restricts this clutch to an existing KSU24530-1* conversion kit; it is not a direct replacement for the original dual-mass flywheel.
SPECIFICATIONS Part number: KSU24030-1A Stage: 1 Friction material / construction: sprung organic Disc diameter: 230 mm Input spline: 24 teeth, 25.2 mm diameter Supplier-rated torque capacity: 460 Nm

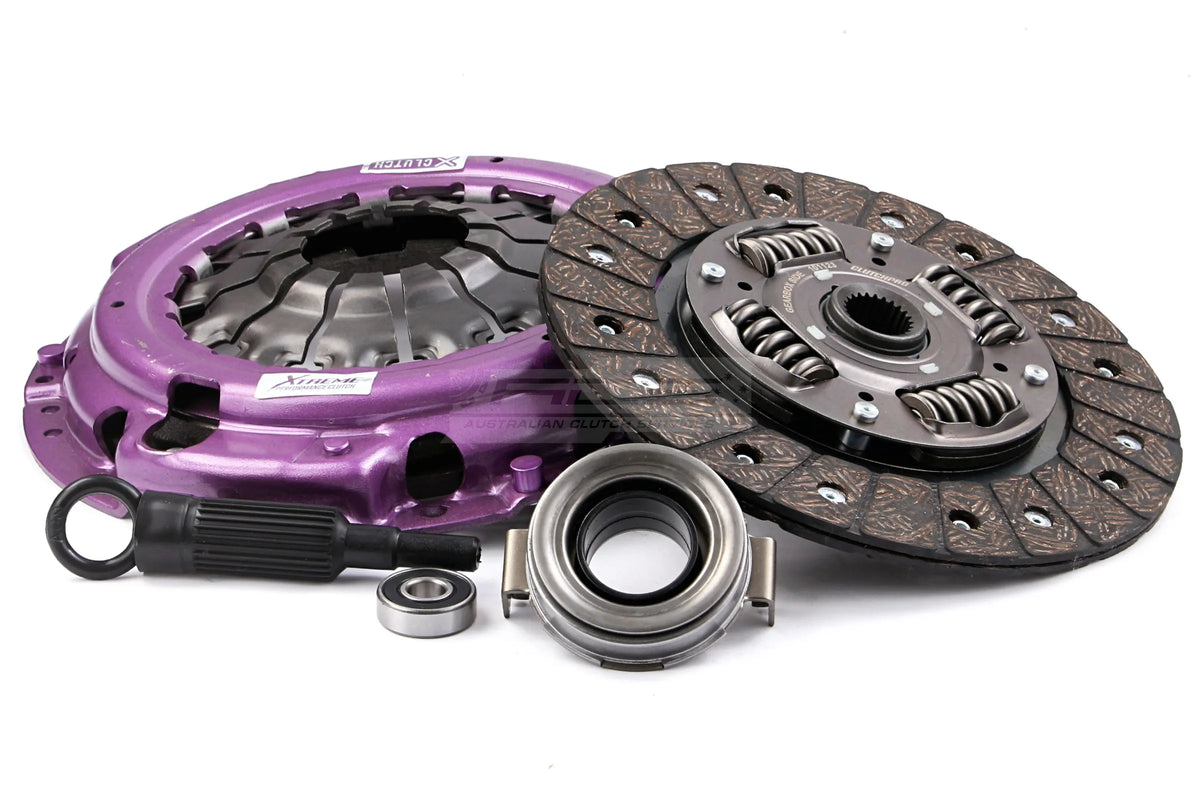

PURCHASED PARTS PACKAGE Pressure plate, friction disc, release bearing, pilot bearing and alignment tool. Flywheel not included.
INSTALLATION AND USE Confirm the installed conversion flywheel and release-system arrangement before ordering. Follow the supplied fitting and bedding-in instructions. A clutch torque rating does not establish a safe torque limit for the gearbox or other drivetrain components.
