Xtreme Clutch single-plate sprung organic clutch kit for the listed Subaru Forester, Impreza and XV applications. Designed for street-performance applications.
FITMENT Subaru Forester (SJ5) November 2012 onwards — 2.0 i AWD, FB20A 1995, 109 kW. Subaru Forester (SHJ) January 2010 onwards — 2.0 i AWD, FB20 1995, 110 kW. Subaru Forester (SJ5) March 2013–2018 — 2.0 i AWD, FB20 1995, 110 kW. Subaru Forester (SJ9) November 2012 onwards — 2.5 AWD, FB25 2498, 126 kW. Subaru Impreza (GP6) January 2012 onwards — 2.0, FB20 1995, 110 kW. Subaru Impreza (GP7) January 2012 onwards — 2.0 AWD, FB20 1995, 110 kW. Subaru Impreza (GJ7) July 2011 onwards — 2.0 AWD, FB20B 1995, 110 kW. Subaru XV (GP7, G33GP) March 2012–December 2017 — 2.0 i AWD, FB20B 1995, 110 kW. Match the engine, chassis, gearbox input spline, flywheel and release arrangement before ordering. Automatic-transmission applications are not covered by this listing.
SPECIFICATIONS Part number: KSU23022-1A Stage: 1 Construction: single plate Friction material: sprung organic Disc diameter: 230 mm Input spline: 24 teeth, 25.2 mm diameter Flywheel step: -2.0 mm Supplier-rated torque capacity: 360 Nm

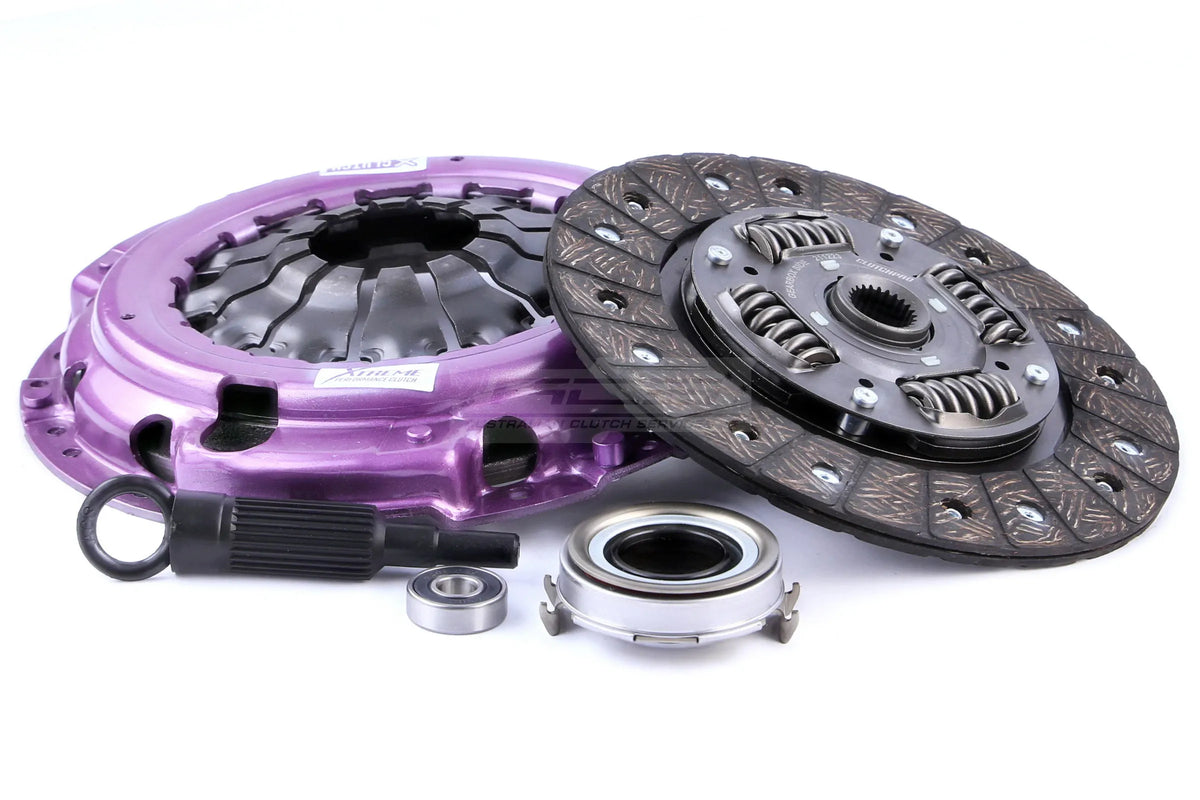

PURCHASED PARTS PACKAGE Pressure plate, friction disc and fitting components shown in the supplier photograph. Flywheel not included.
INSTALLATION AND USE Check the flywheel condition, profile and release arrangement before installation. Follow the supplied fitting and bedding-in instructions. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
