FITMENT Subaru Legacy (BL9) September 2006–December 2009 — 2.5 T AWD, EJ25DET 2457, manual. Subaru Legacy (BP9) September 2006–December 2009 — 2.5 T AWD, EJ25DET 2457, manual. Subaru Legacy (BL9) September 2006–December 2009 — 2.5 STI AWD, EJ25DET, EJ255 2457, manual. Subaru Legacy (BP9) September 2006–December 2009 — 2.5 STI AWD, EJ25DET 2457, manual. Manual-transmission applications only. Match the engine, chassis, input spline and flywheel before ordering.
SPECIFICATIONS Part number: KSU23017-1A Stage: 1 Friction material / construction: sprung organic Disc diameter: 230 mm Input spline: 24 teeth, 25.2 mm diameter Supplier-rated torque capacity: 560 Nm

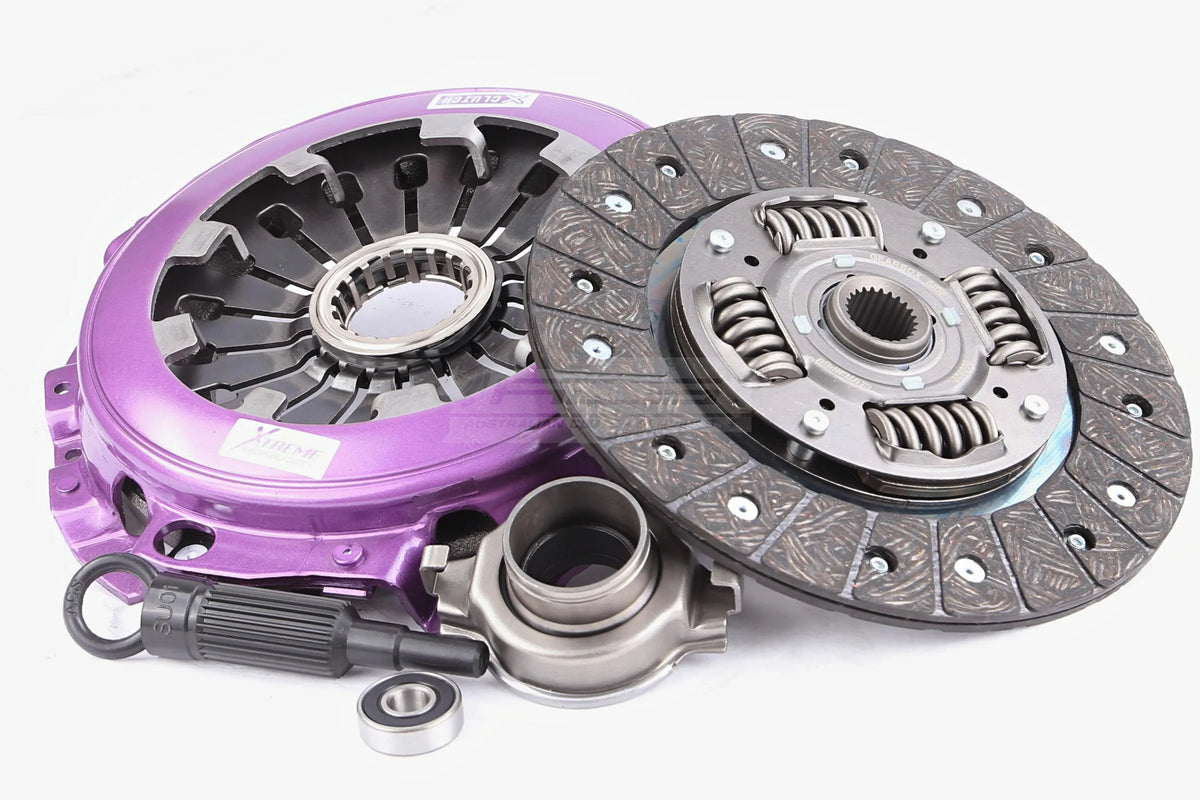

PURCHASED PARTS PACKAGE Heavy-duty pressure plate, sprung organic friction disc, release bearing, pilot bearing and alignment tool. Flywheel not included.
INSTALLATION AND USE The supplier specifies a 230 mm clutch for a flat flywheel. Match the flywheel profile and release arrangement; do not assume compatibility with dual-mass or recessed flywheels. Follow the supplied fitting and bedding-in instructions. The supplier torque rating does not establish a safe torque limit for the gearbox or other drivetrain components.
