Xtreme Outback 230 mm rigid organic twin-plate clutch kit with flywheel for the listed Nissan Patrol Y61 4.2 TD manual applications.
FITMENT Nissan Patrol Y61 4.2 TD, May 1999–September 2004; TD42T, 4169 cc diesel, 114 kW. Nissan Patrol Y61 4.2 TD, from June 1997; TD42T, 4169 cc diesel, 107 kW. Nissan Patrol Y61 / TY61 4.2 TD 4WD, May 1999–September 2007; TD42T, 4169 cc diesel, 114 kW. Manual transmission only. Match the listed turbo engine, drive configuration and exact gearbox before ordering.
SPECIFICATIONS Part number: KNI23542-2G Construction: twin plate Friction discs: rigid organic with individual rigid hubs Disc diameter: 230 mm Input spline: 24 teeth, 25.1 mm diameter Supplier-rated torque capacity: 1200 Nm Flywheel step: +3.80 mm Recommended use: high-power street vehicles

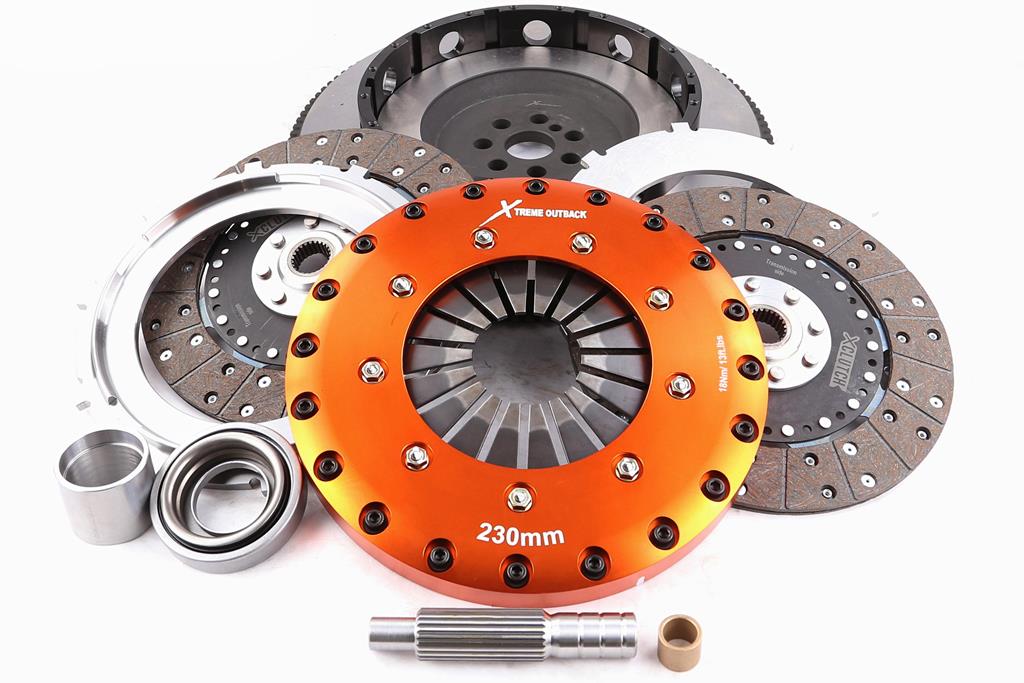

PURCHASED PARTS PACKAGE Twin-plate clutch assembly with two rigid organic friction discs, intermediate plate and clutch cover, matching flywheel, release bearing and carrier components, bolts, alignment tool, pilot bush and the fitting components shown in the supplier photograph.
INSTALLATION AND USE Match the chassis, engine code, gearbox input spline and release system before ordering. Fit the supplied clutch and flywheel as a matched assembly and follow the installation instructions and manufacturer bedding-in guidance. A floating intermediate plate can produce rattle when the clutch is disengaged. The supplier torque rating does not establish a safe limit for other drivetrain components.
