Xtreme Clutch Stage 2 Cushioned Ceramic Clutch Kit Nissan Bluebird 1.6 / 2.0 (910) KNI20004-1C

Xtreme Clutch Stage 2 cushioned ceramic clutch kit for the listed Nissan Bluebird 1.6 / 2.0 (910) applications. Intended for motorsport applications requiring increased torque and heat capacity.

FITMENT
Nissan Bluebird 910 / 1.6, January 1980–November 1983; engine L16 1595 cc, 60 kW
Nissan Bluebird 910 / 2.0, May 1981–March 1985; engine L20B 1952 cc, 72 kW
Manual-transmission applications only.

SPECIFICATIONS
Part number: KNI20004-1C
Stage: 2
Construction: single plate
Friction disc: cushioned ceramic
Disc diameter: 200 mm
Input spline: 24 teeth, 25.4 mm diameter
Supplier-rated torque capacity: 350 Nm
Flywheel step: flat (0 mm)
Clamp load: 540 kg (50% increase over standard)

PURCHASED PARTS PACKAGE

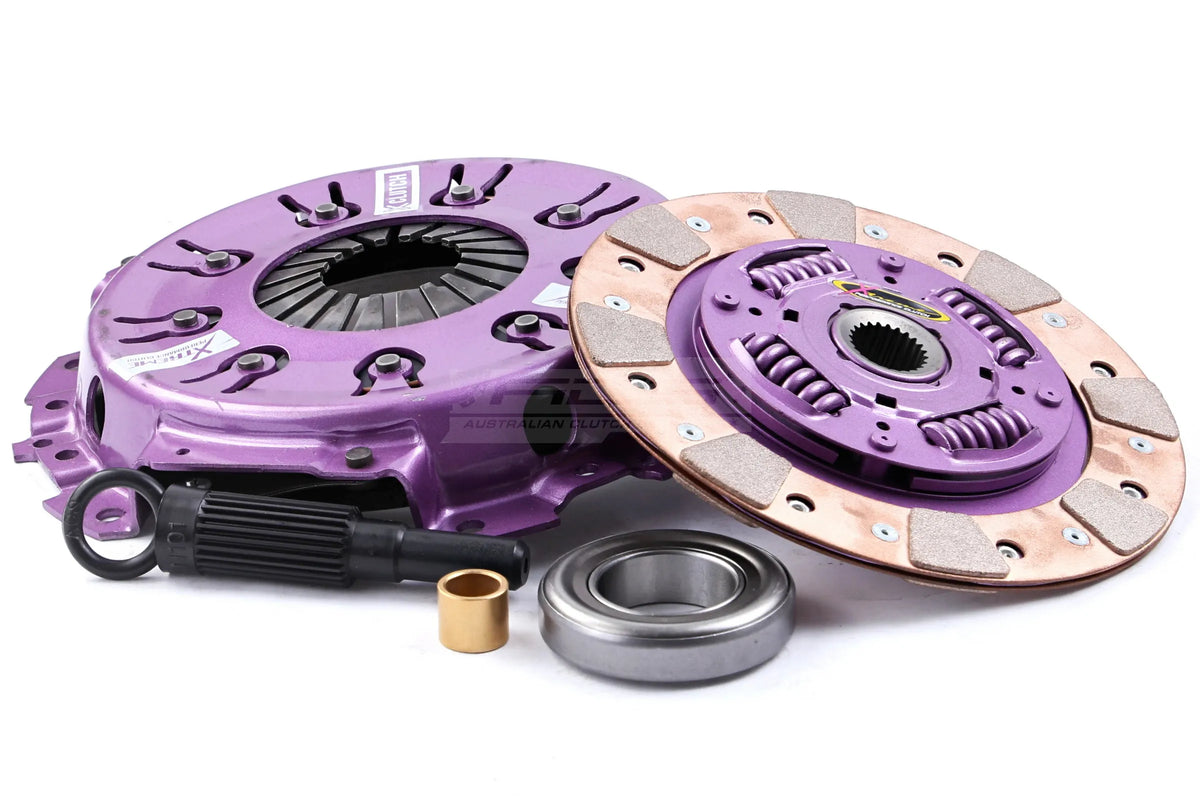

Heavy-duty pressure plate, cushioned ceramic friction disc and the fitting components shown in the supplier photograph. Flywheel is not included.

INSTALLATION AND USE
Match the engine code, gearbox input spline, flywheel and release system before ordering. Follow the supplied installation and bedding-in instructions. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
