Xtreme Clutch single-plate sprung ceramic clutch kit for the Mazda MX-5. Designed for track applications requiring increased heat and torque capacity.
FITMENT Mazda MX-5 (NA8C) January 1993–April 1998 — 1.8, BP (DOHC), BPF1, BP-ZE 1840, 96 kW. Match the engine, chassis, gearbox input spline, flywheel and release arrangement before ordering. Automatic-transmission applications are not covered by this listing.
SPECIFICATIONS Part number: KMZ22506-1B Stage: 2 Construction: single plate Friction material: sprung ceramic Disc diameter: 225 mm Input spline: 22 teeth, 24.5 mm diameter Flywheel step: -20 mm Supplier-rated torque capacity: 450 Nm

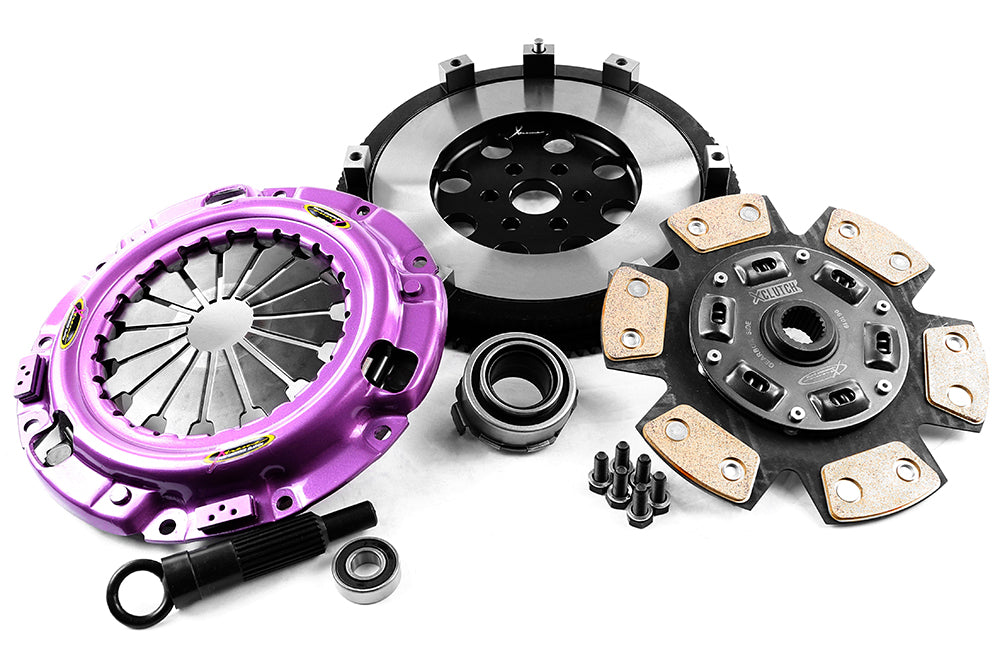

PURCHASED PARTS PACKAGE Pressure plate, friction disc, flywheel and fitting components shown in the supplier photograph.
INSTALLATION AND USE Install the supplied clutch and flywheel together. Check the gearbox input spline and release arrangement before installation. Follow the supplied fitting and bedding-in instructions. A ceramic friction disc can change engagement characteristics compared with a standard organic clutch. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
