Xtreme Clutch single-plate sprung ceramic clutch kit for the Mazda MX-5. Designed for track applications requiring increased heat and torque capacity.
FITMENT Mazda MX-5 (NA6C) May 1990–January 1994 — 1.6, B64F 1597, 85 kW. Mazda MX-5 (NB6C) May 1998–October 2005 — 1.6 16V, B6MC, B6MU 1597, 81 kW. Match the engine, chassis, gearbox input spline, flywheel and release arrangement before ordering. Automatic-transmission applications are not covered by this listing.
SPECIFICATIONS Part number: KMZ20002-1B Stage: 2 Construction: single plate Friction material: sprung ceramic Disc diameter: 200 mm Input spline: 22 teeth, 24.5 mm diameter Flywheel step: +0.5 mm (0.02 inch) Supplier-rated torque capacity: 320 Nm Clamp load: 630 kg (50% inc.)

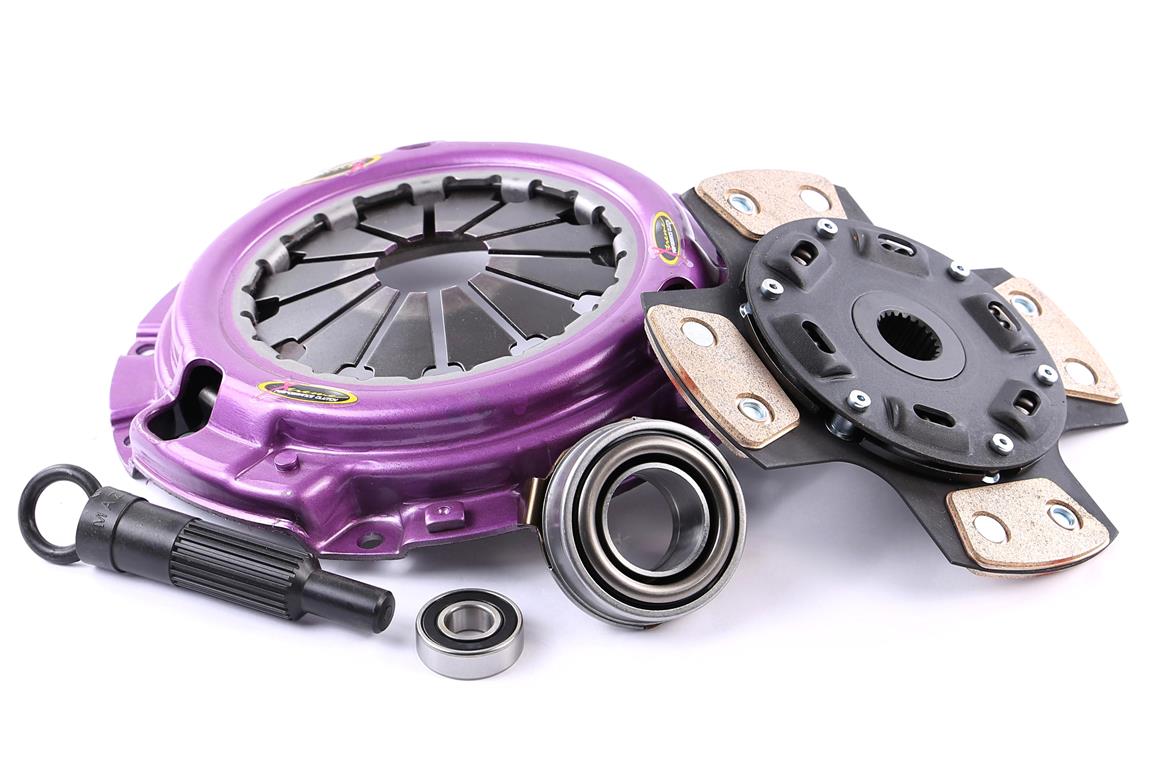

PURCHASED PARTS PACKAGE Pressure plate, friction disc and fitting components shown in the supplier photograph.
INSTALLATION AND USE Check the flywheel condition, profile and release arrangement before installation. Follow the supplied fitting and bedding-in instructions. A ceramic friction disc can change engagement characteristics compared with a standard organic clutch. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
